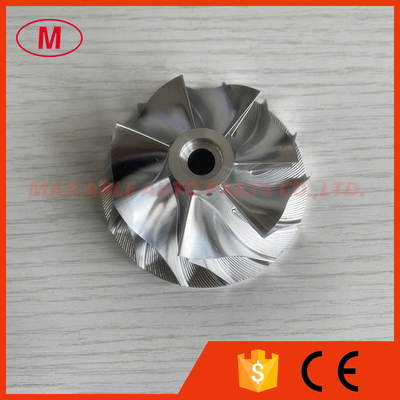

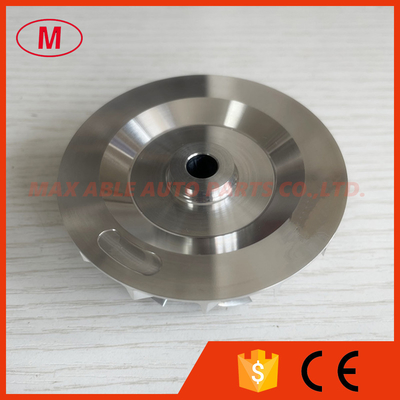

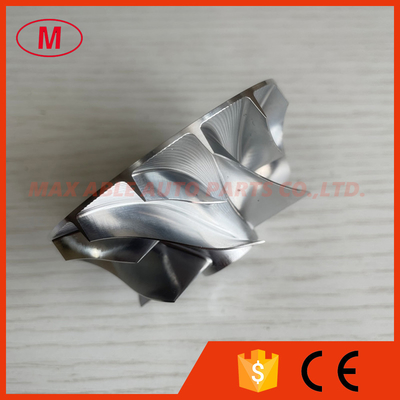

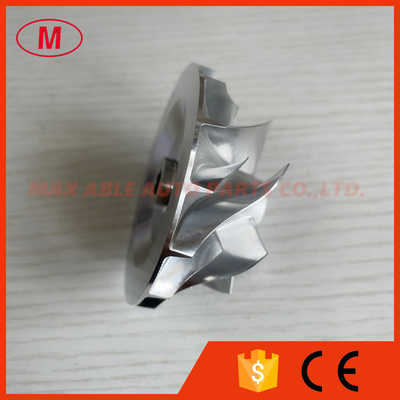

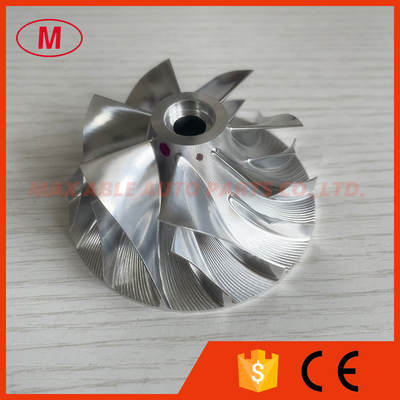

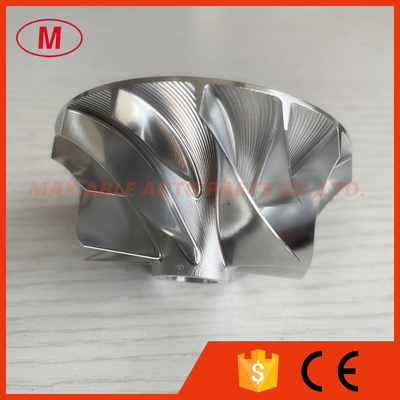

custom 54.00/70.00mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheel

Brand Name:	NO
Model Number:	-

Contact Now

Detailed Product Description

Size:	54.00/70.00mm	Type:	Turbochargers

1. MODEL:custom forward

2.custom 54.00/70.00mm 7+7 blades turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:18.00mm

Inducer:54.00mm

exducer:70.00mm

Tip height:7.00mm

Superback:0.00mm

bore size :7.81mm

Bore type:through

Overall height:31.00mm

Cutback:0.0mm

Trailing Angle:90 degree

SP height angle:-5.00

Blade height:28.00mm

Splitter height:16.50mm

7+7 blades forward

It is custom size ,please check carefully before buying.

Tapered tip Angle:0 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

skype : maxabledieselparts

wechat/whatsapp:+86-18018657719
