| Place of Origin: | CHINA |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | BTLA85 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:BTLA85 forward

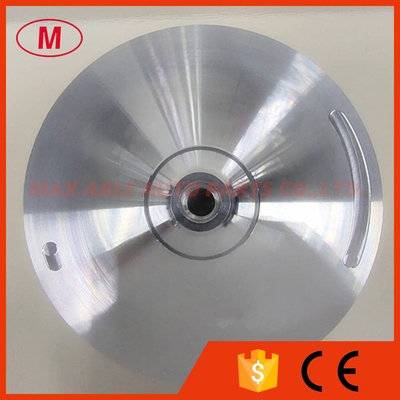

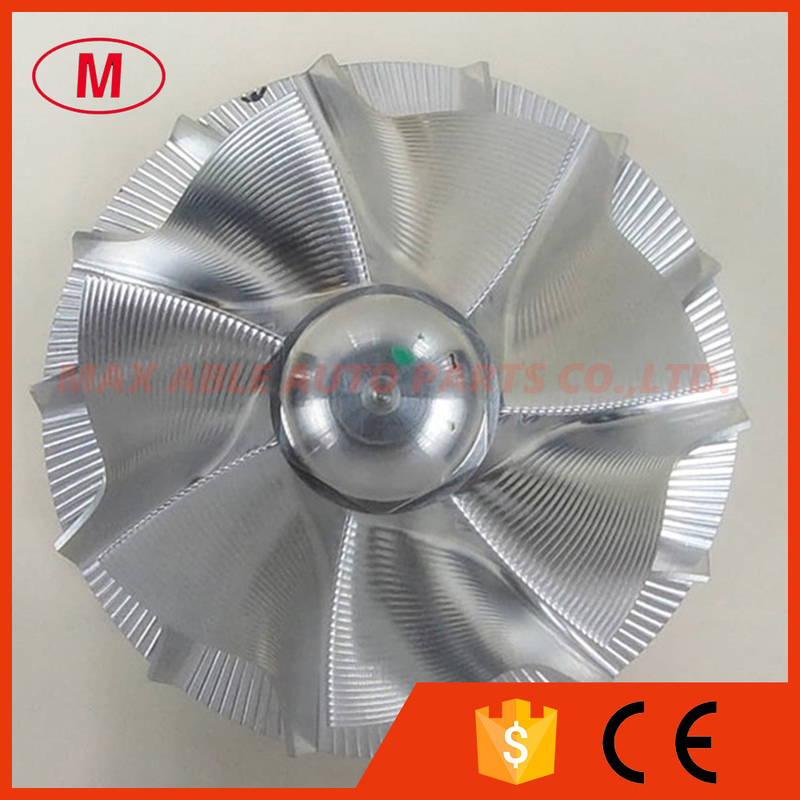

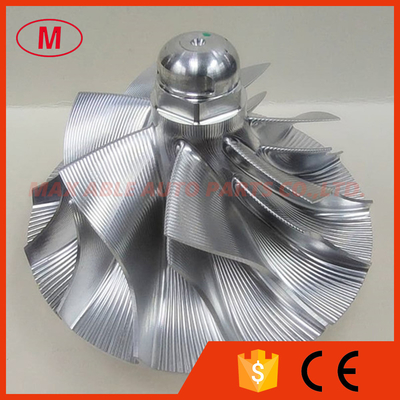

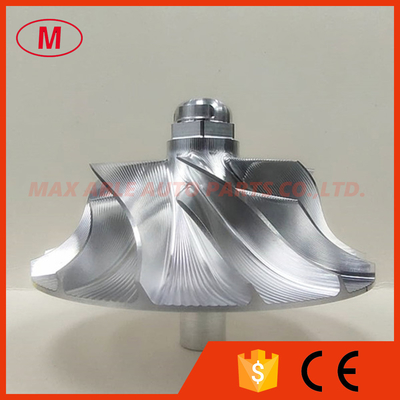

2.BTLA85 83.00/117.55mm 7+7 blades 3036-4, 449207-0003, 753036-0004 point millingTurbocharger Billet/milling/aluminum 2618 compressor wheel
for 239-5045, 10R-1885, 2395045, 1720913, 0R7044, 710024-5006S, 710024-9006S, 710024-0006, 710024-0001 Excavator: 5130B, Off-Highway Truck: 776D, 777, 777B, 777D, Engine: 3508B
3.Size:
Nose diameter:26.50mm
Inducer:83.00mm
Exducer:117.55mm
Tip height:6.66mm
super back:26.97mm
overall height:88.90mm
Blades height:40.00mm
bore size :10.32mm
bore type:Boreless-3/8-16G-LHT
Trailing angle:60 degree
Cutback:6.2mm
splitter height:25.60mm
Sp height angle:10.00
7+7 blades
Forward Rotation
Tapered tip angle:0 degree
It is for OE Compressor housng
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
