| Place of Origin: | CHINA |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Type: | Turbochargers |
|---|
1. MODEL:RHF5 forward

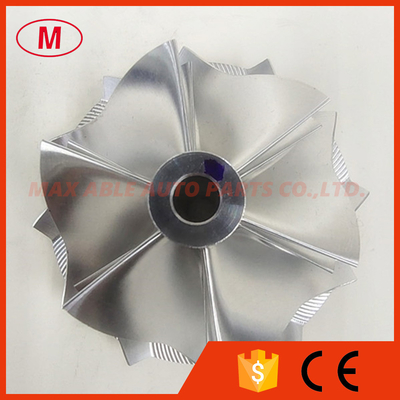

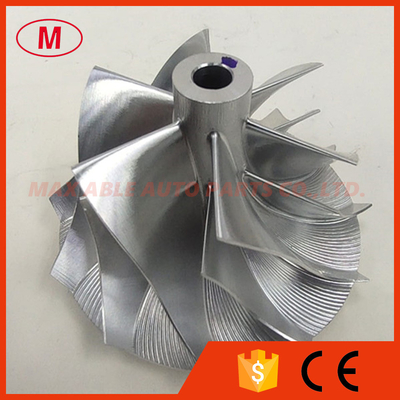

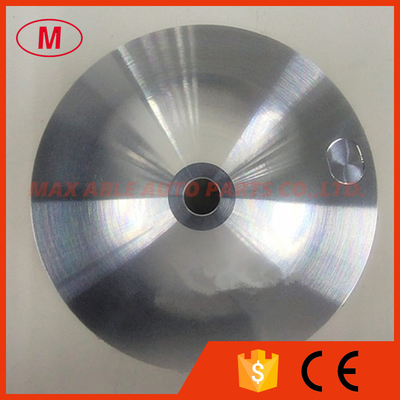

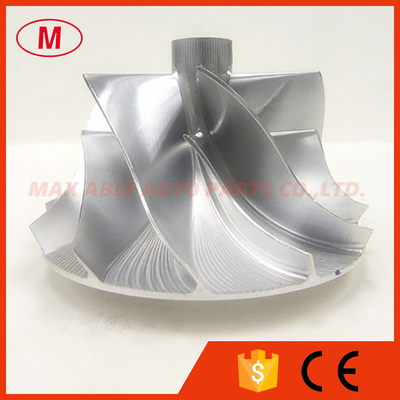

2.RHF5 40.66/52.50mm 6+6 blades turbocharger billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diamter:10.47mm
inducer:40.66mm
Exduder:52.50mm
Tapered tip exducer:55.97mm
Tip height:4.01mm
Superback:3.74mm
Overall height:32.60mm
bore size :5.10mm
bore type:through
Trailing angle:55 degree
Cutback:0.0mm
Sp height angle:-4.60
Splitter height:16.00mm
Blades height:23.83mm
6+6 blades
Forward rotation
Tapred tip angle:30 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
