| Model Number: | CT12 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 39.05/58.03mm | Type: | Turbochargers |
|---|
1. MODEL:CT12 forward

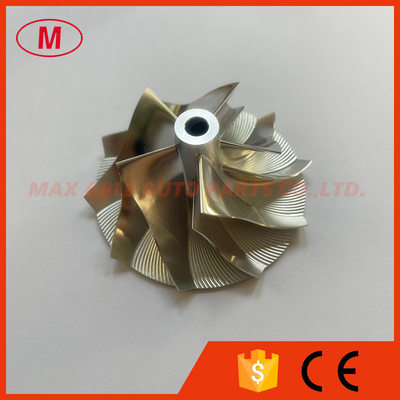

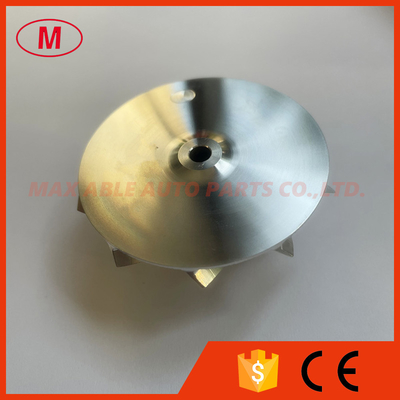

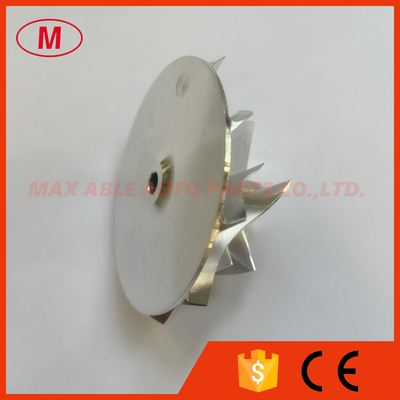

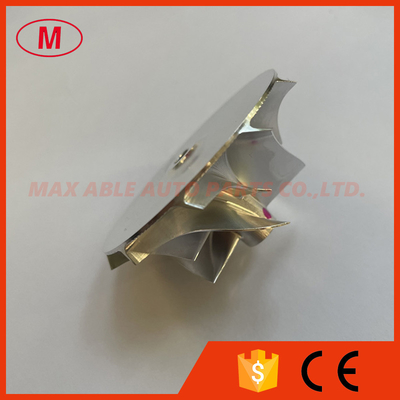

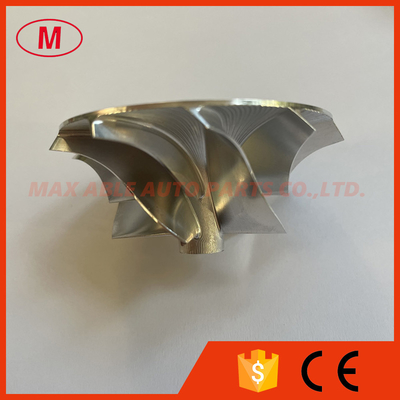

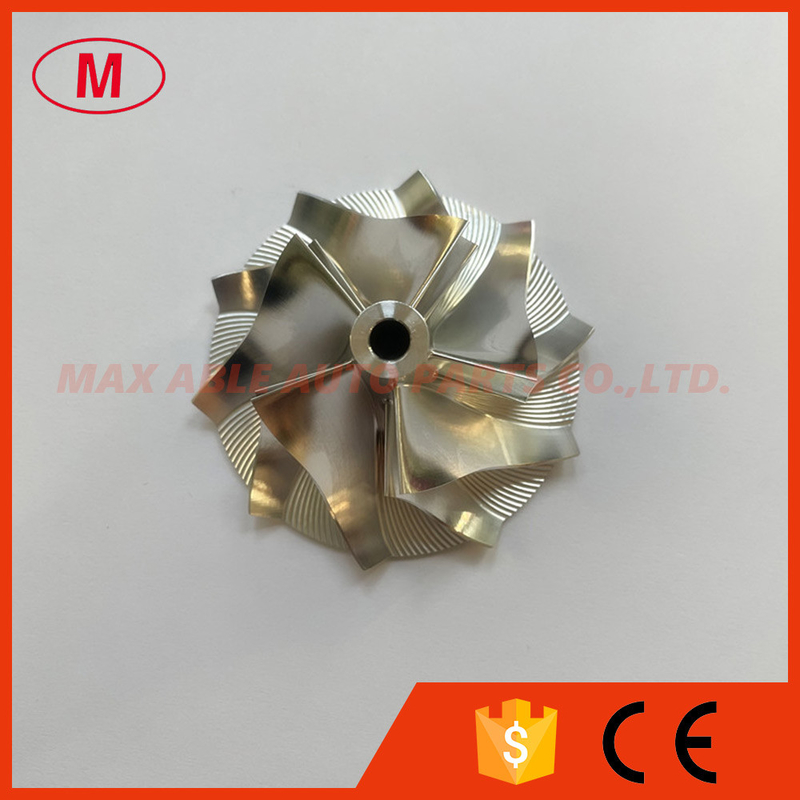

2. CT12 39.05/58.03mm 5+5 blades 17208-46030HF Milling/alumunim 2618/billet compressor wheel
3.Size:
Nose diameter:9.99mm
Inducer:39.05mm
Exducer:58.03mm
Tapered tip exducer:62.31mm
Tip height:4.70mm
Superback:1.04mm
Overall height:28.31mm
Bore size:5.10mm
bore type:through
Trailing angle:55 degree
Cutback:0.0mm
Blades height:23.40mm
Splitter hieght:15.65mm
SP height angle:-3.00
5+5 blades
forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.if you want to know more details ,please send email to me.
