| Model Number: | RHC9 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 70.00/90.00mm | Type: | Turbochargers |
|---|
1. MODEL:RHC9 FORWARD

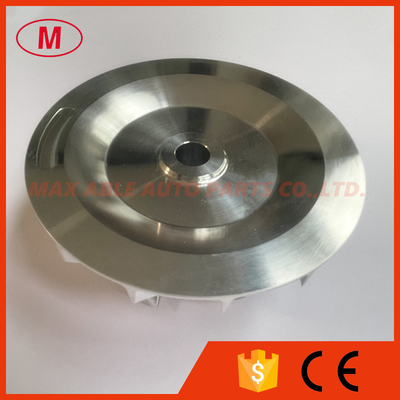

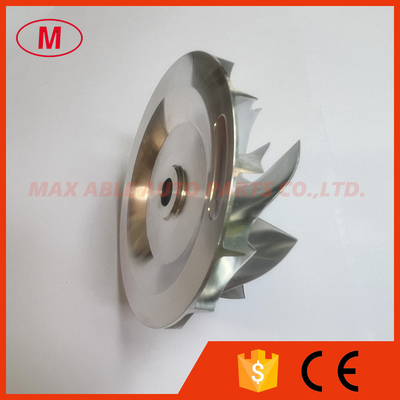

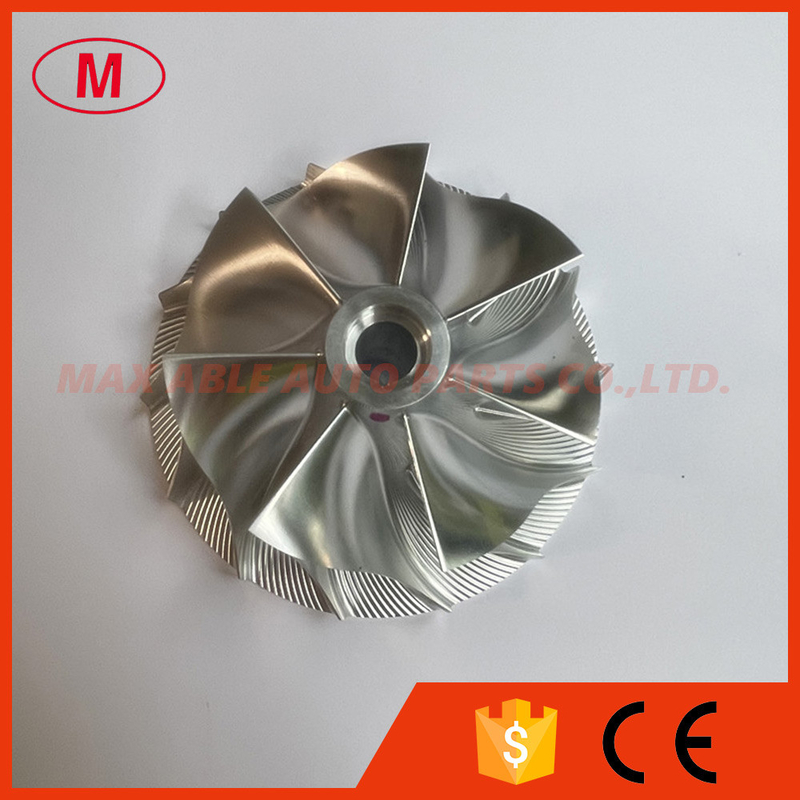

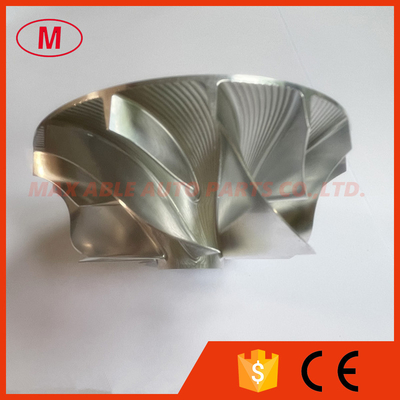

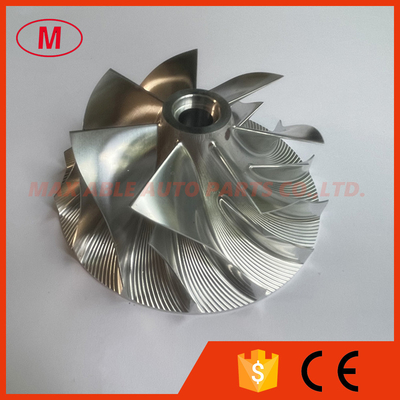

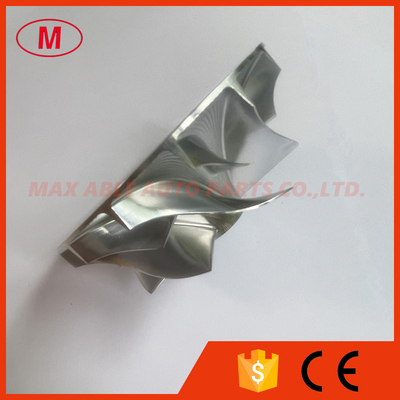

2. RHC9 70.00/90.mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
3.Size:
Nose Diameter:19.00mm
inducer:70.00mm
Exducer:90.00mm
Tip height:8.50mm
Superback:-3.00mm
Overall height:35.00mm
Bore size:9.81mm
Bore type:through
Trailing angle:90 degree
Cutback:0.00mm
Splitter height:19.20mm
SP height angle:-5.00
Blades height:32.00mm
7+7 BLADES
forward rotation
Tapered tip angle:0 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.We have many size.
All the compressor wheels have been balanced.
