| Brand Name: | NO |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD05H 20G reverse

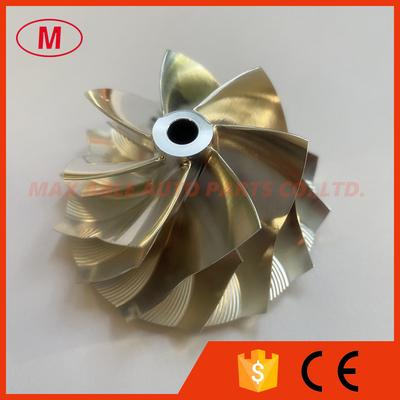

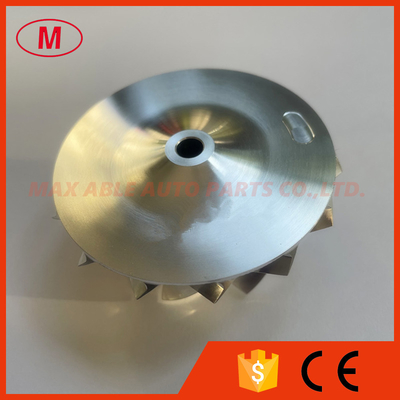

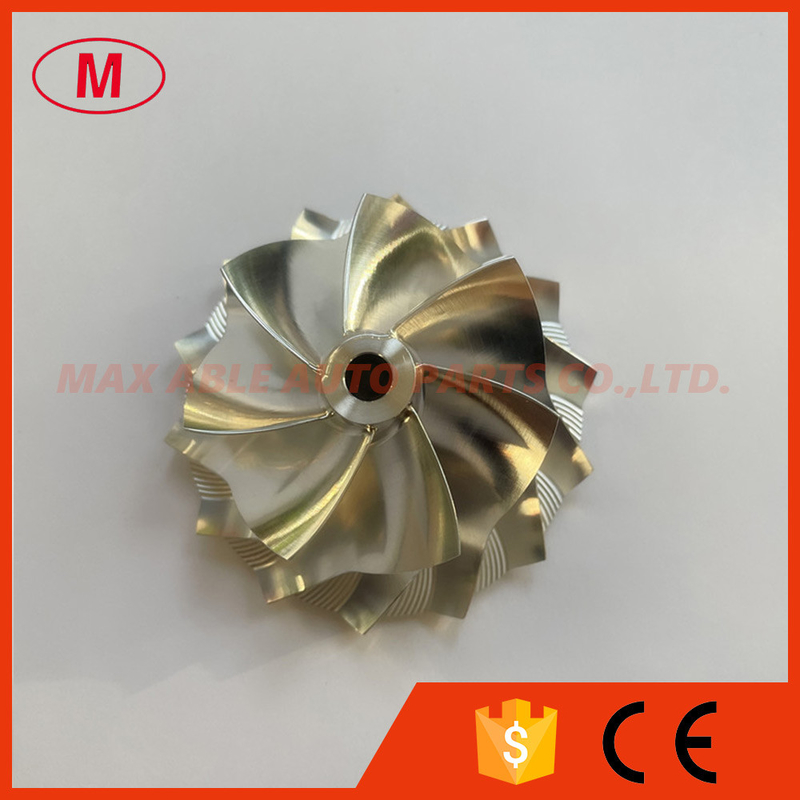

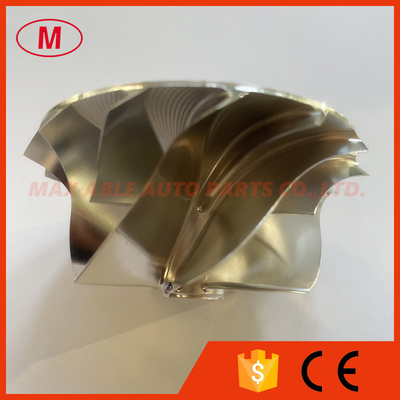

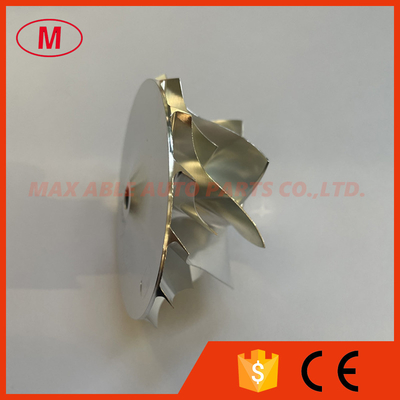

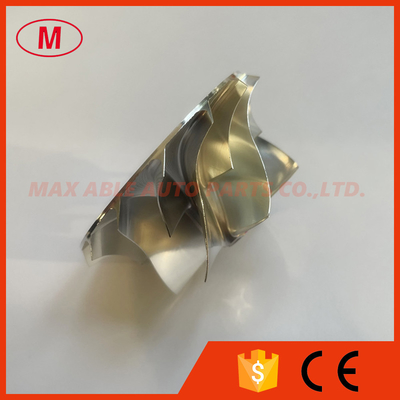

2.TD05H 20G reverse 52.56/68.01mm 7+7 blades 49179-43400 LEP style performance Turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:12.80mm
inducer:52.56mm
Inducer:68.01mm
Tapered tip exducer:73.05mm
Tip height:5.37mm
Superback:2.90mm
Overall height:35.00mm
bore size :6.50mm
bore type:through
Trailing angle:45 degree
Cutback:0.0mm
Blades height:30.10mm
Splitter height:16.00mm
Sp height angle:-5.00
7+7 blades
Reverse rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
