| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
| Size: | 46.39/56.08mm | Type: | Turbochargers |
|---|
1.Model: K04 forward

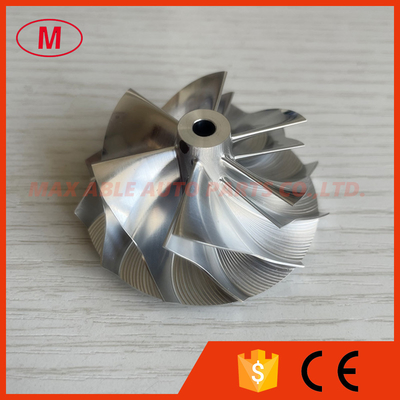

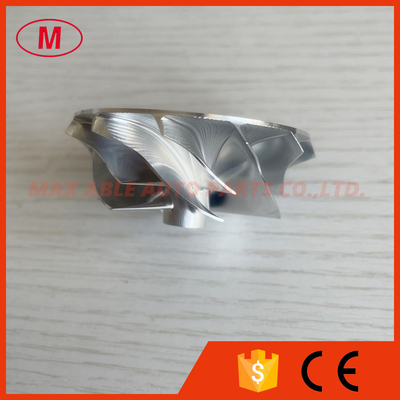

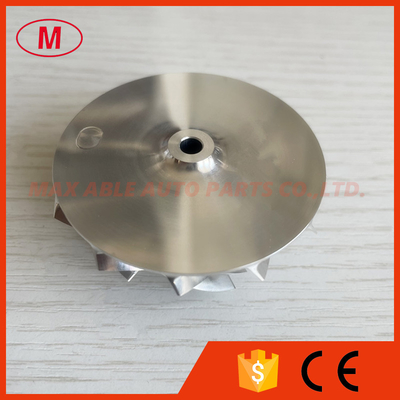

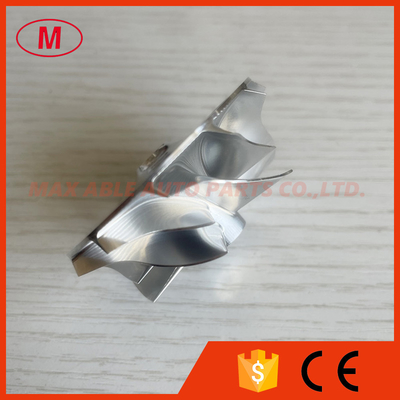

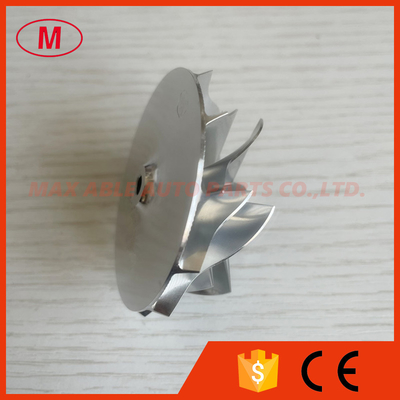

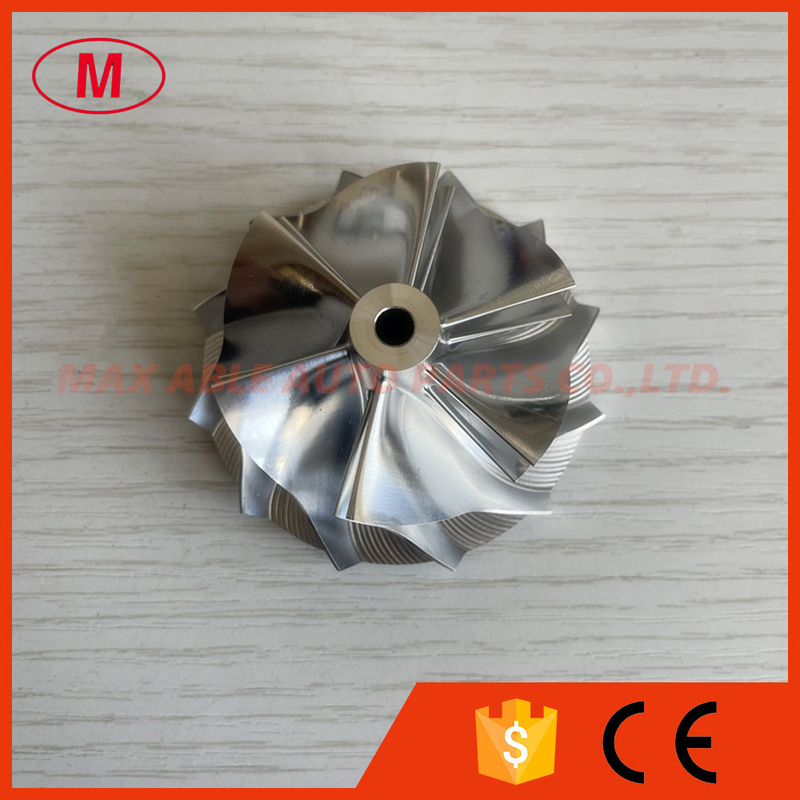

2.K04 46.39/56.08mm 6+6 blades aluminum 2618/milling /billet compressor wheel
3.SIZE:
Nose diameter:10.91mm
inducer:46.39mm
Exducer:56.08mm
Tapered tip exducer:59.66mm
Tip height:4.68mm
Superback:2.60mm
Overall height:26.48mm
bore size :4.61mm
bore type:through
Trailing angle:60 degree
Cutback:0.0mm
SP Height angle:0.00
Blades height:20.06mm
Splitter height:14.50mm
6+6 blades
forward rotation
Tapered tip angle:26 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.Please send email to me or talk to me on online ,if you want to know more details.
All the billet compressor wheels have been balanced.
