| Model Number: | TF035 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 38.00/51.00mm | Type: | Turbochargers |
|---|

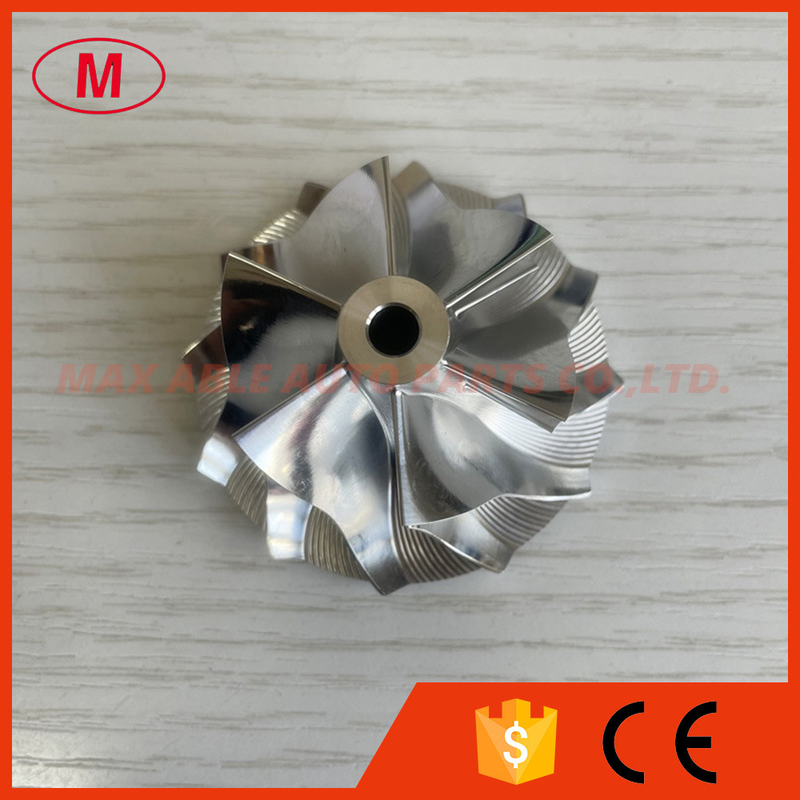

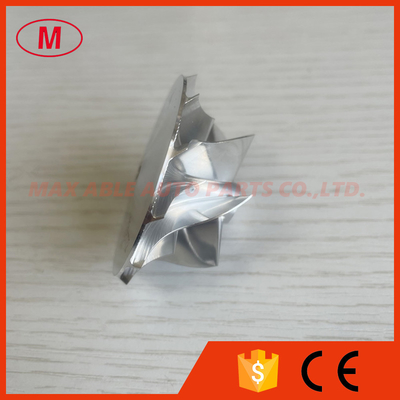

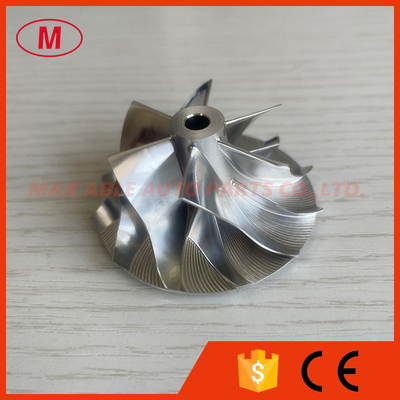

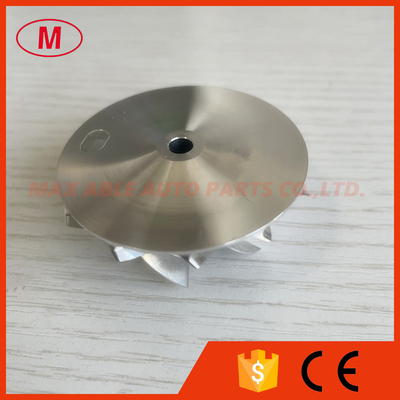

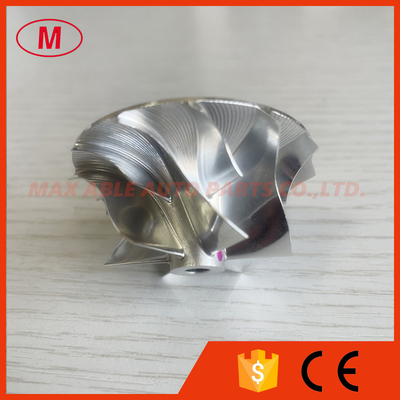

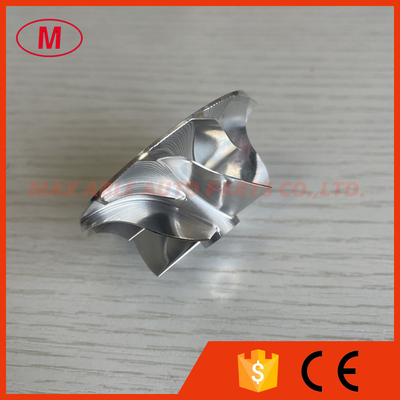

1. MODEL:TF035 forward
2.TF035 09G 6+6 blades 38.00/51.00mm high performance Turbo milling/aluminum 2618/billet compressor wheel for 49335-00600/49135-09610 BMW N47D20
3.Size:
Nose diameter:11.00mm
Inducer:38.00mm
Exducer:51.00mm
Tapered tip exducer:53.65mm
Tip height:3.30mm
Superback:1.90mm
Overall height:25.30mm
bore size :5.00mm
bore type:through
Trailing angle:45 degree
Cutback:0.0mm
SP height angle:0.00
blade height:21.50mm
Splitter height:10.70mm
6+6 Blades
forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced
we can also produce as your requirement.
