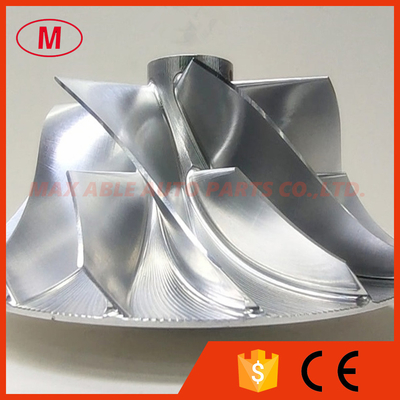

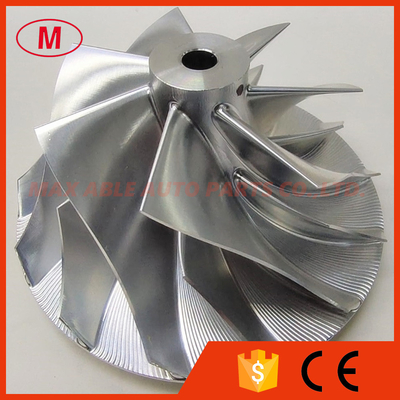

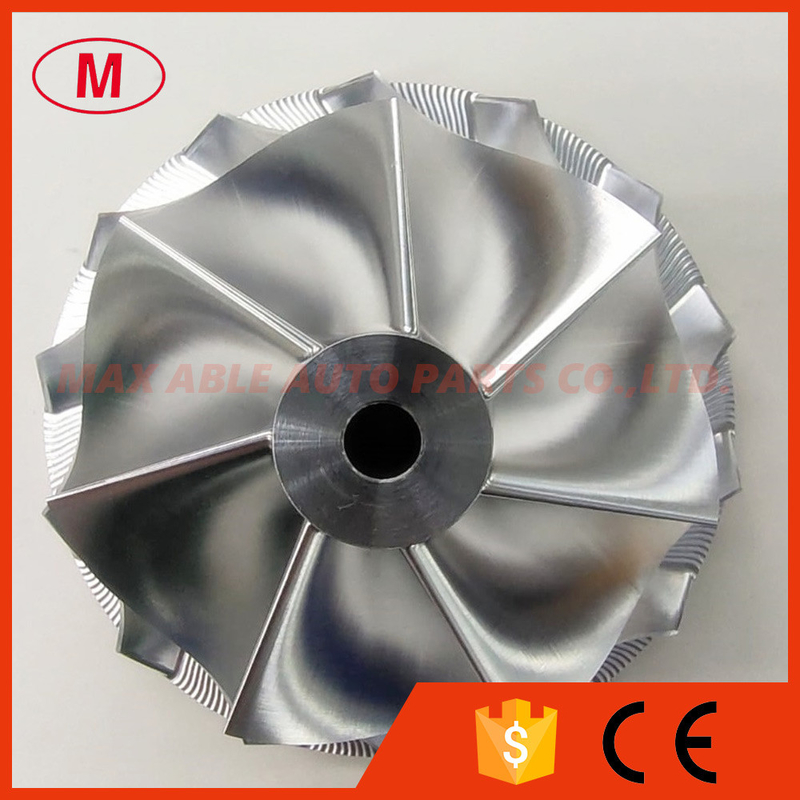

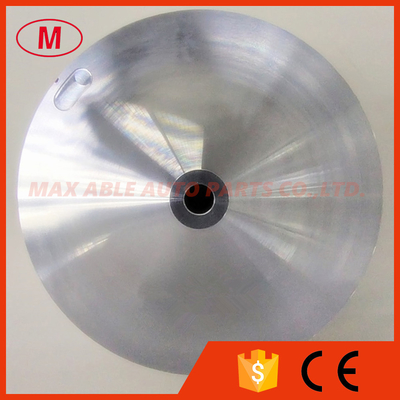

HE451VE/HE400VG 3779401 7+7blades 66.95/93.00mm LEP style turbo milling/aluminum 2618/billet compressor wheel for 3798515RX, 5448260RX, 5459711, 5358003, 5351565, 5358483, 5358484

3.Size:

Nose diamter:20.00mm

inducer:66.95mm

Exduder:93.00mm

Tip height:6.43mm

Superback:6.27mm

Overall height:44.90mm

bore size :7.00mm

bore type:through

Trailing angle:40 degree

Cutback:3.5mm

SP height angle:0.70

Blade height:34.20mm

Splitter height:18.20mm

It is for OE compressor housing

7+7 blades

Forward rotation

Tapered tip angle:0 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.

All the billet compressor wheels have been balanced.
