| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | HE451 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |

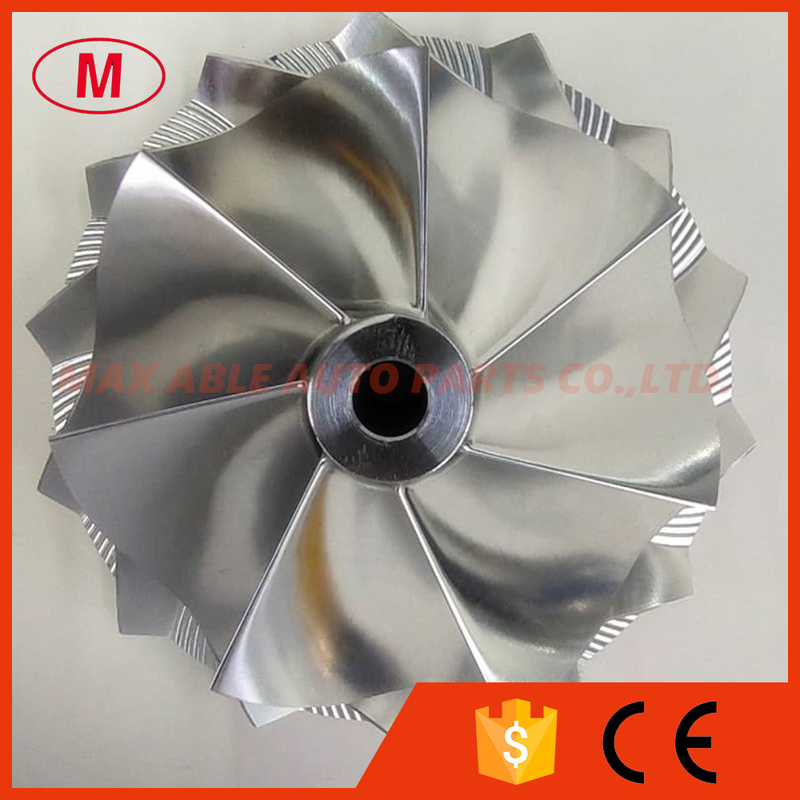

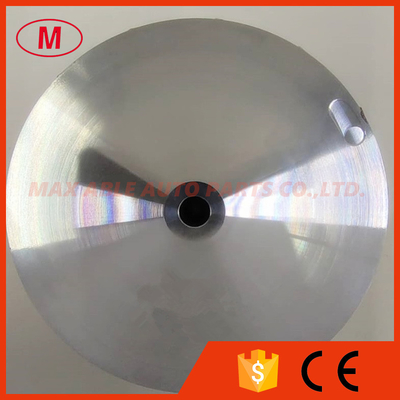

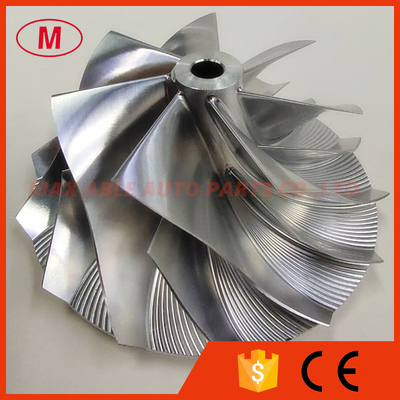

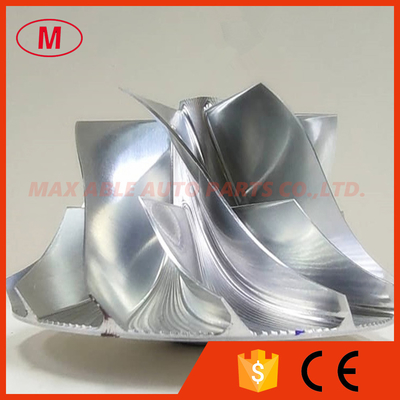

1.Model:HE451 forward
3.Size:
Nose diamter:15.50mm
inducer:66.87mm
Exduder:93.00mm
Tapered tip exducer:97.79mm
Tip height:5.15mm
Superback:6.27mm
Overall height:44.90mm
bore size :7.00mm
bore type:through
Trailing angle:45 degree
Cutback:3.5mm
SP height angle:0.00
Blade height:36.30mm
Splitter height:18.20mm
It is custom size ,please check carefully before buying.
7+7 blades
Forward rotation
Tapered tip angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
All the billet compressor wheels have been balanced.
