| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:RHF5 forward

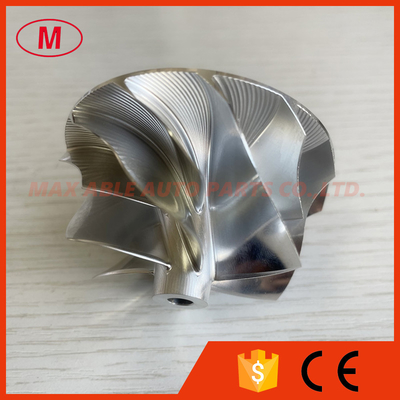

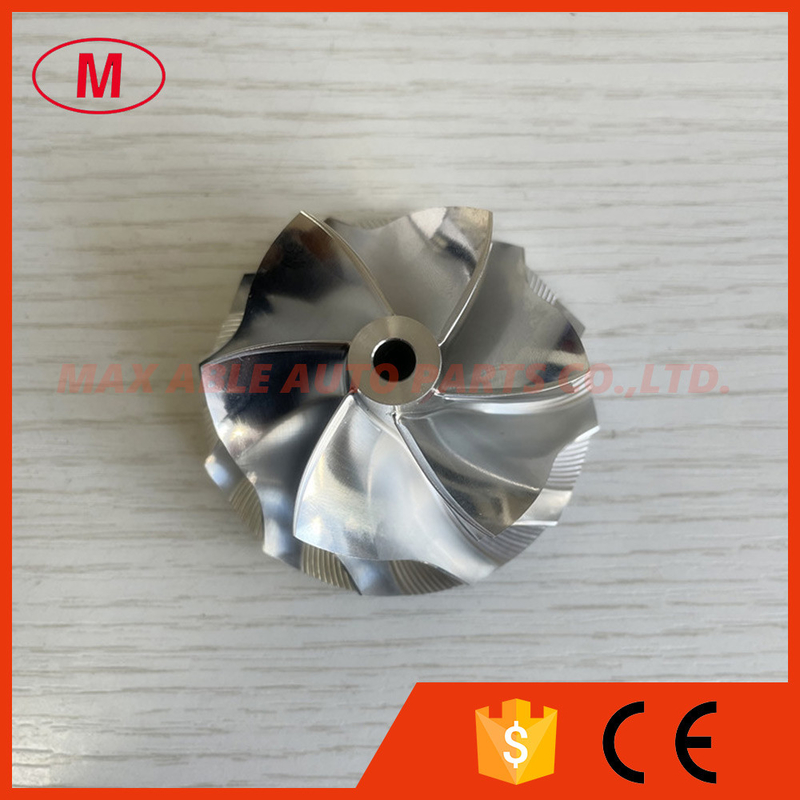

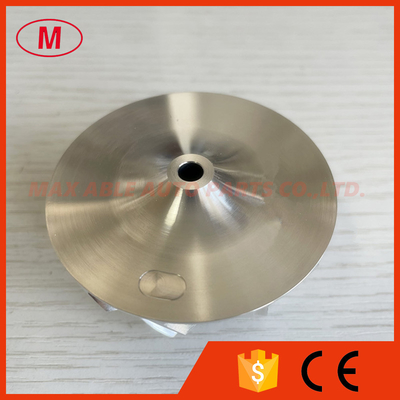

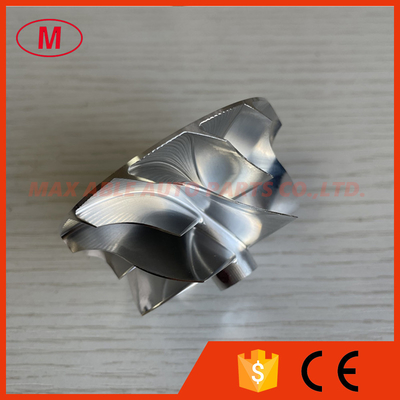

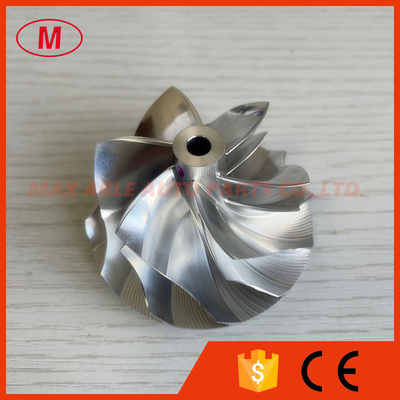

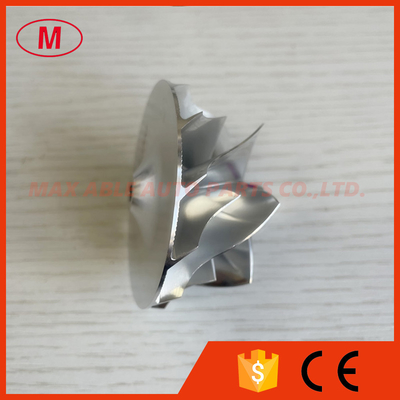

2.RHF5 48.40/60.00mm 6+6 blades LEP style aluminum 2618/milling/Billet compressor wheel
3.Size:
Nose diameter:11.00mm
Inducer:48.40mm
exducer:60.00mm
Tip height :6.24mm
superback:4.50mm
Overall height:36.70mm
Bore size:5.10mm
bore type:through
Trailing angle:45 degree
Cutback:2.8mm
SP height angle:-4.40
Blades height:27.30mm
Splitter height:16.50mm
6+6 blades
Forward rotation
Tapred tip angle:0 degree
It is Custom size,please check carefully before buying
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
