| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1.Model:RHF5 FORWARD

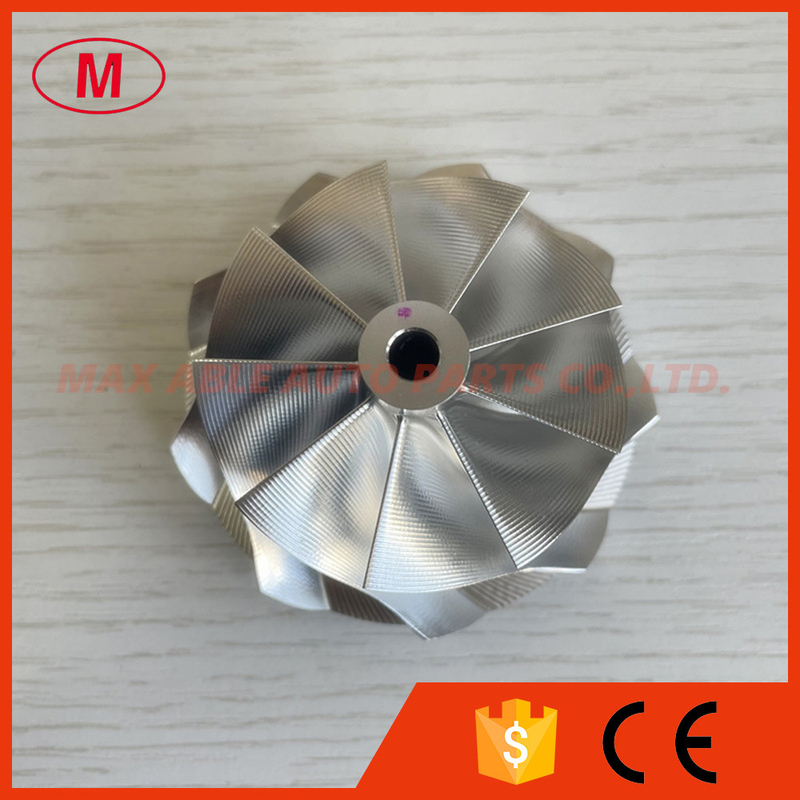

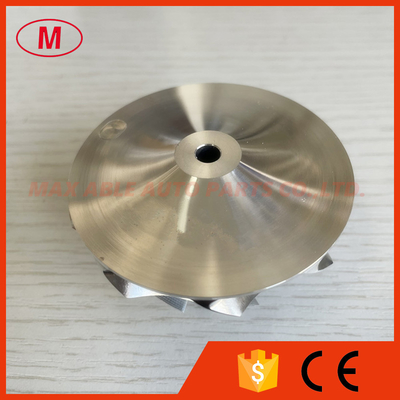

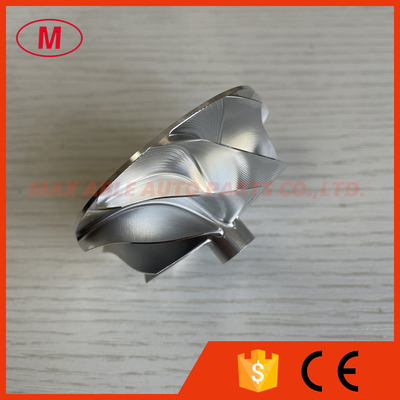

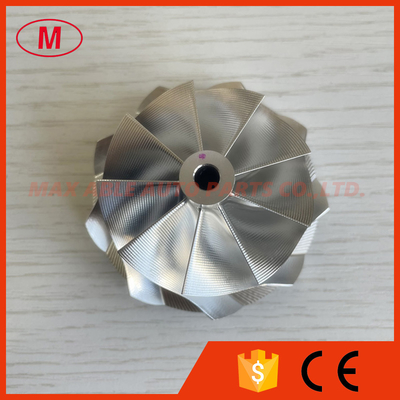

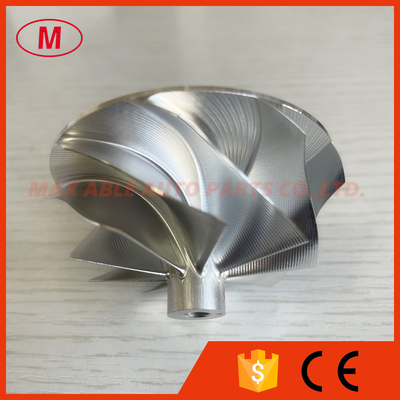

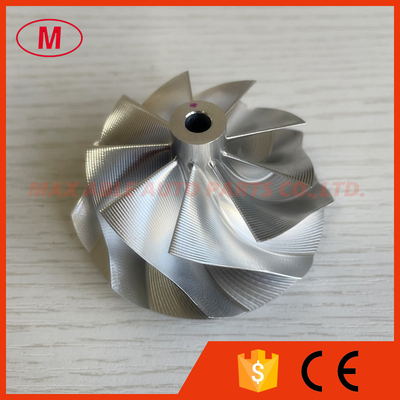

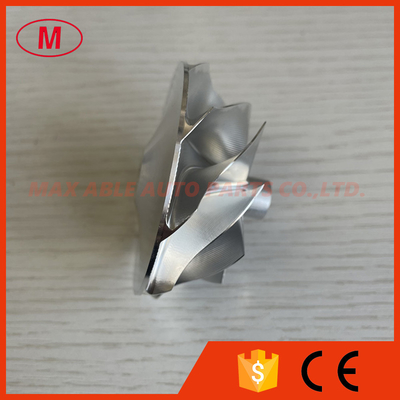

2.RHF5 48.35/60.00mm 9+0 Blades Point milling turbo aluminum 2618/Milling/billet compressor wheel
3.Size:
Nose diameter:11.10mm
Inducer:48.35mm
Exducer:60.00mm
Tapered tip exducer:62.16mm
Tip height:6.40mm
Trailing angle:35 degree
Superback:4.50mm
Bore size:5.10mm
bore type:through
Cutback:6.6mm
Overall height:34.60mm
SP Height angle:0.00
Blades height:23.20mm
Splitter height:0.00mm
9+0 blades
Tapered tip angle:11.5 degree
Forward rotation
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
ALL the billet compressor wheels have been balanced.
