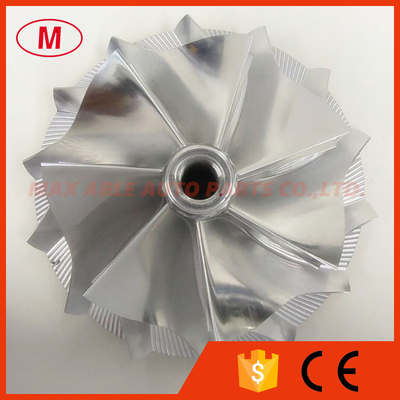

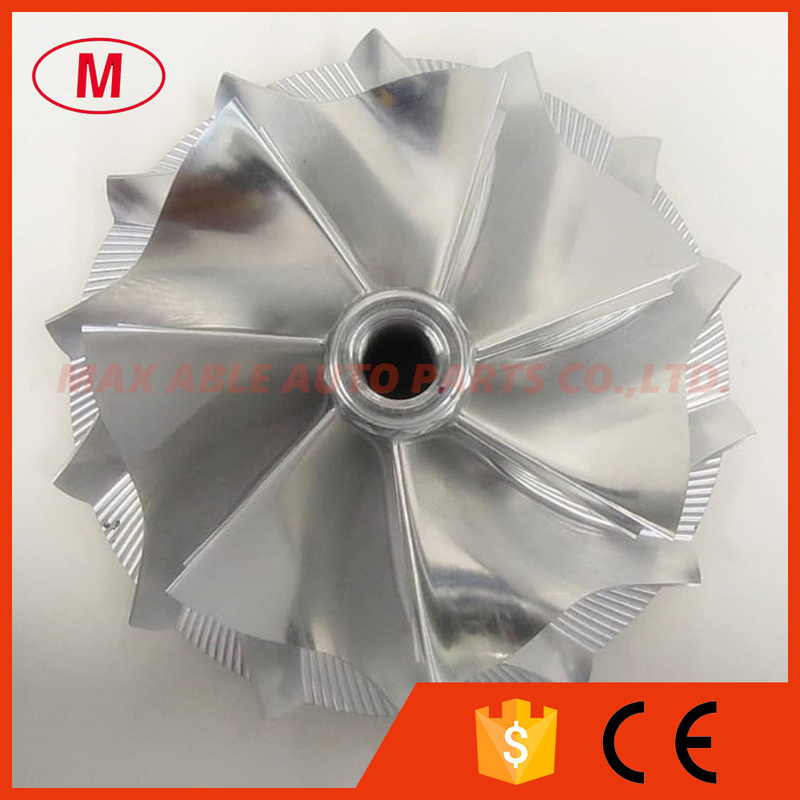

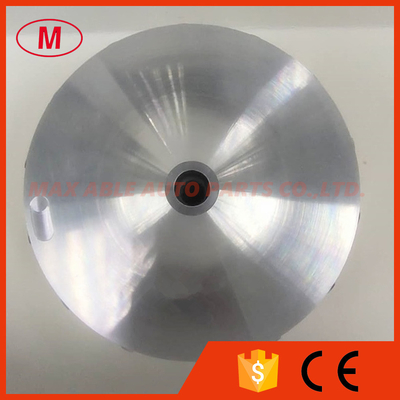

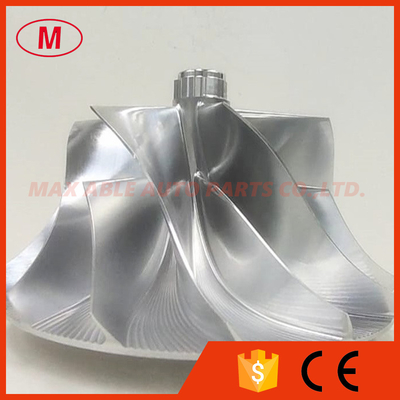

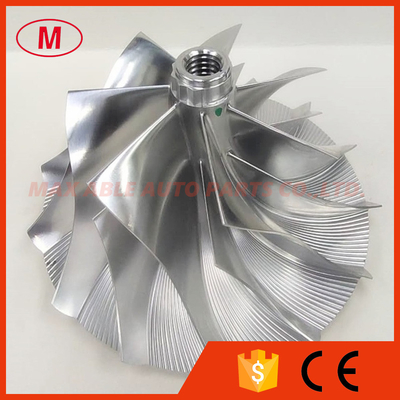

GT55 94.00/133.84mm 7+7 blades Dodecagon Nut design high performance turbo milling/aluminum 2618/billet compressor wheel

Brand Name:	NO
Model Number:	GT55

Contact Now

Detailed Product Description

1. MODEL:GT55 forward

2.GT55 94.00/133.84mm 7+7 blades Dodecagon Nut design high performance turbo milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:21.00mm

Inducer:94.00mm

exducer:133.84mm

Tapered tip exducer:141.00mm

Tip height:8.00mm

Superback:8.07mm

bore size :13.49mm

Overall height:73.00mm

Cutback:6.0mm

Trailing Angle:50 degree

Bore type:Threaded-1/2-13G-LHT

SP height angle:4.30

Blades height:54.28mm

Splitter height:32.50mm

7+7 blades forward

It is custom size ,please check carefully before buying.

Tapered tip Angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

We will produce as your requirment ,the minimun order is 5pcs

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

GT55 94.00/133.84mm 7+7 blades Dodecagon Nut design high performance turbo milling/aluminum 2618/billet compressor wheel
