| Brand Name: | NO |
| Model Number: | GT55 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:GT55 forward

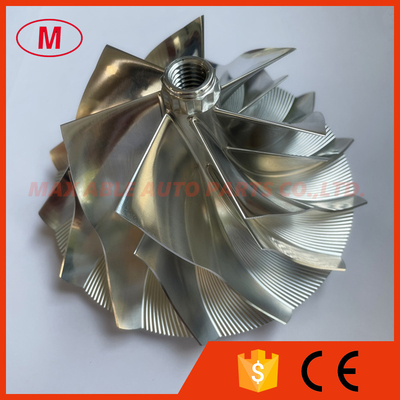

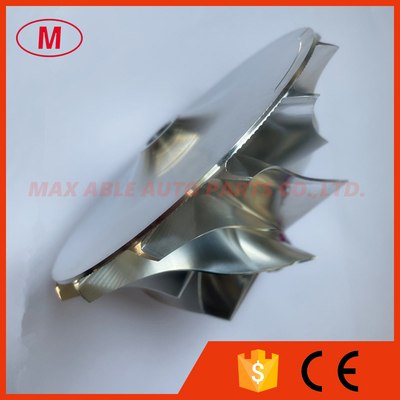

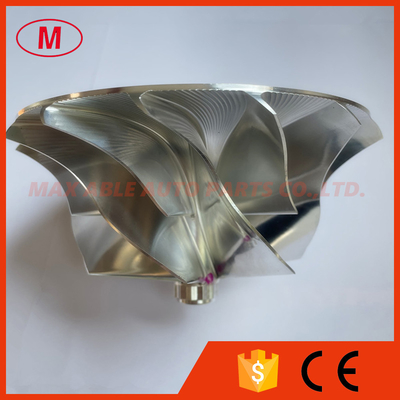

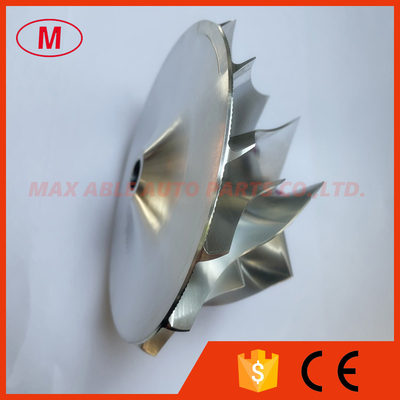

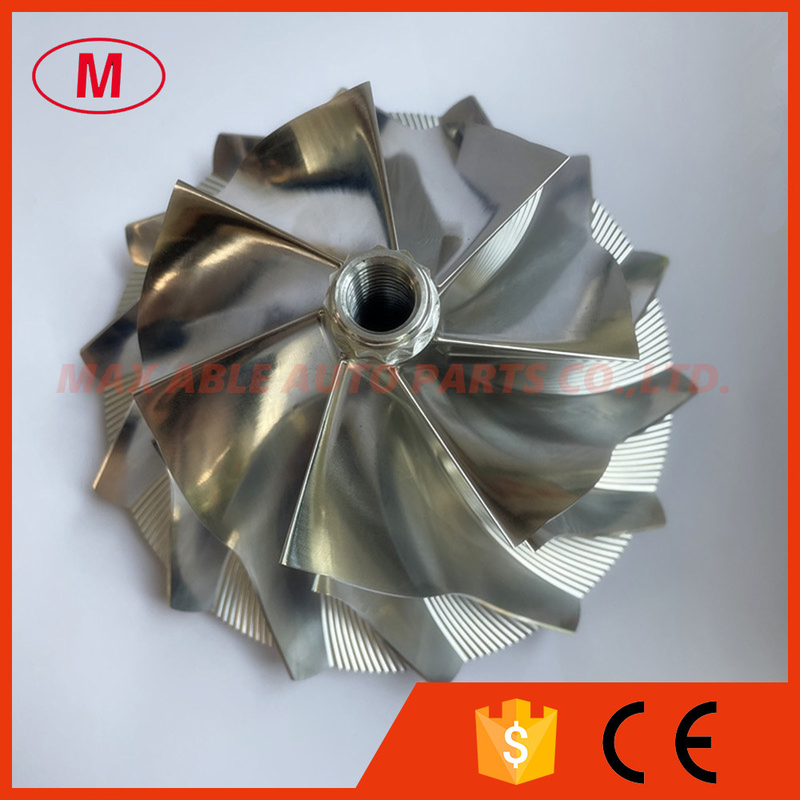

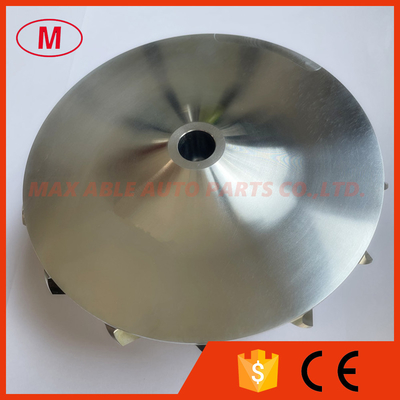

2.GT55 7+7 blades 88.83/131.97mm Dodecagon Nut design, Performance Design turbo billet/milling/aluminum 2618 compressor wheel
3.SIZE:
Nose diameter:19.00mm
inducer:88.83mm
Exducer:131.97mm
Tapered tip exducer:139.70mm
Tip height:8.06mm
Superback:8.07mm
Overall height:77.00mm
bore size :13.49mm
bore type:Threaded-1/2-13G-LHT
Trailing angle :50 degree
Cutback:10.00mm
Sp height Angle:1.20 degree
Splitter Height:33.50mm
Blade height:59.43mm
7+7 blades
Forward rotation
Tapered tip Angle:31.7 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.please email to me or talk to me on online ,if you want to know more details.
All the compressor wheels have been balanced.
We can produce as your requirement.
