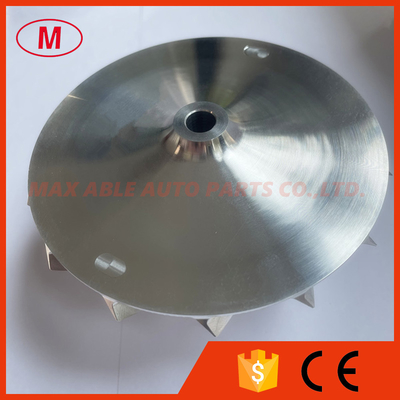

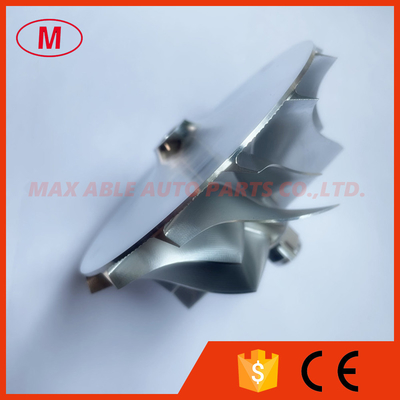

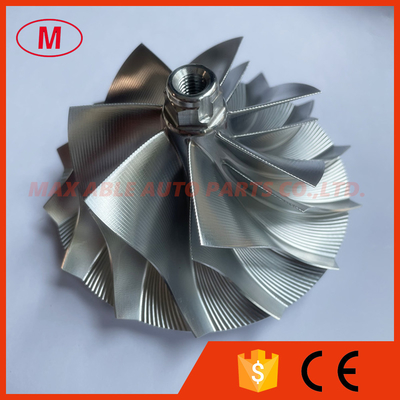

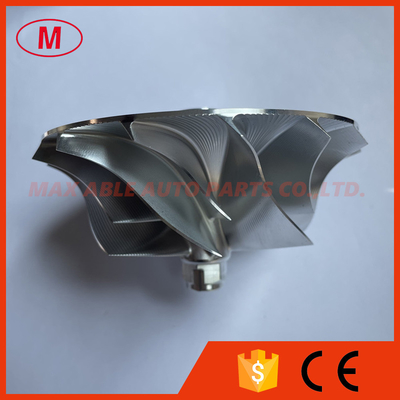

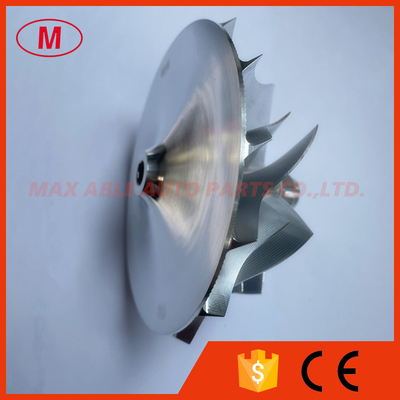

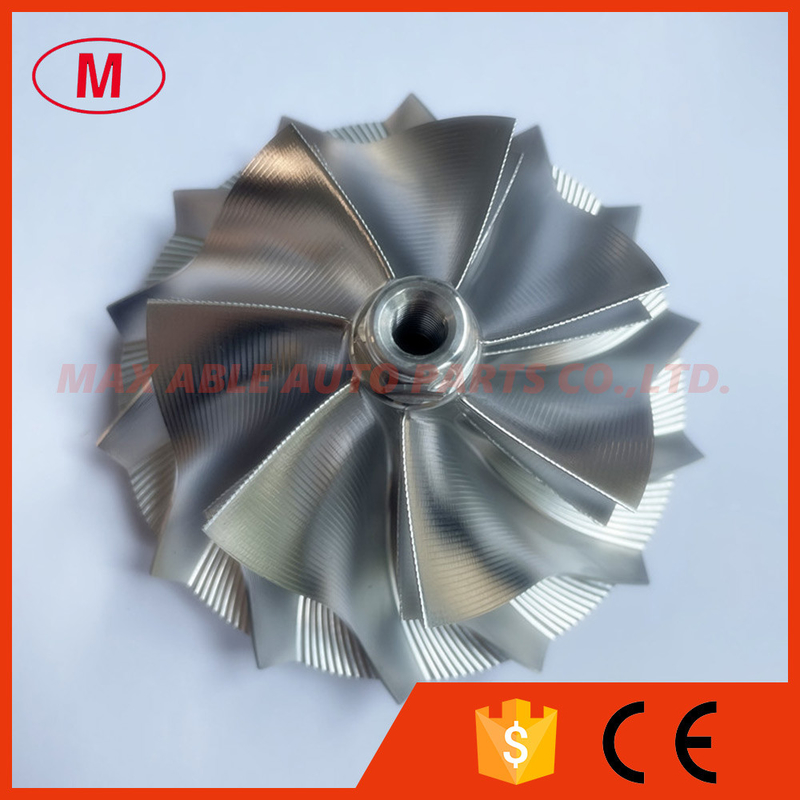

Name: PTE76 76.44/102.40mm 7+7 blades point milling turbocharger milling/aluminum 2618/billet compressor wheel for PTE7685 Sportman CEA GEN2, PTE7675 Sportsman CEA GEN2, PTE7675HP CEA GEN2
Brand: Max Able Auto Parts Co.,Ltd.
SKU: pte76
Price: Negotiable USD
Availability: InStock

Home Products Billet compressor wheel

PTE76 76.44/102.40mm 7+7 blades point milling turbocharger milling/aluminum 2618/billet compressor wheel for PTE7685 Sportman CEA GEN2, PTE7675 Sportsman CEA GEN2, PTE7675HP CEA GEN2

Product Details:

Brand Name:	NO
Certification:	ISO
Model Number:	pte76

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	neutral packing
Delivery Time:	3-7 days
Payment Terms:	TT ,western union ,paypal
Supply Ability:	1000

Contact Now

Detailed Product Description

1.Model:PTE76 Forward

2.PTE76 76.44/102.40mm 7+7 blades point milling turbocharger billet/milling/aluminum 2618 compressor wheel for PTE7685 Sportman CEA GEN2, PTE7675 Sportsman CEA GEN2, PTE7675HP CEA GEN2

3.Size:

Nose diameter:18.40mm

Inducer:76.44mm

Exducer:102.40mm

Tapered tip exducer:108.15mm

Tip height:6.48mm

Superback:9.33mm

Overall height:60.80mm

Bore size:8.25mm

bore type:Threaded-M8x1.25LHT

Trailing angle:55 degree

Cutback:7.5mm

SP Height angle:1.20

Blade height:38.37mm

Splitter height:26.00mm

6+6 blades

Forward rotation

Tapered tip angle:30 degree

Fits OE Compressor Housing

4.High quality ,competitive price and good service.

5.We can also produce as your requirement.

All the compressor wheels have been balanced.

6.If you want more details, please send email to me or talk to me online.

We will try our best to meet your needs.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

PTE76 76.44/102.40mm 7+7 blades point milling turbocharger milling/aluminum 2618/billet compressor wheel for PTE7685 Sportman CEA GEN2, PTE7675 Sportsman CEA GEN2, PTE7675HP CEA GEN2
