| Brand Name: | NO |
| Model Number: | k04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:K04 Forward

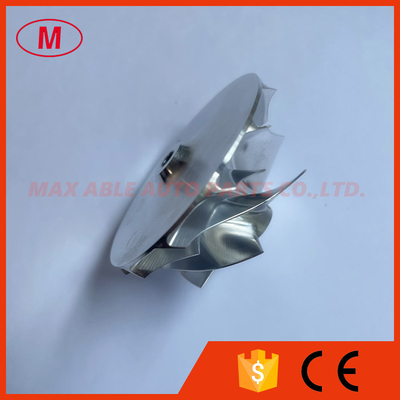

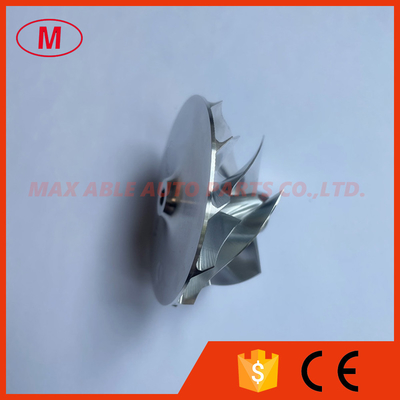

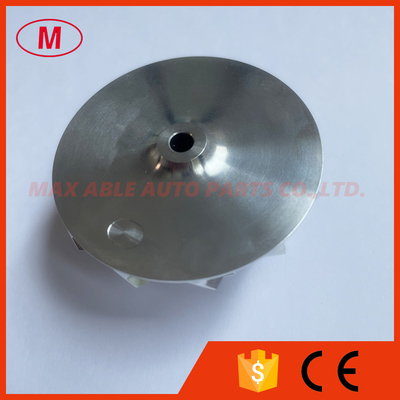

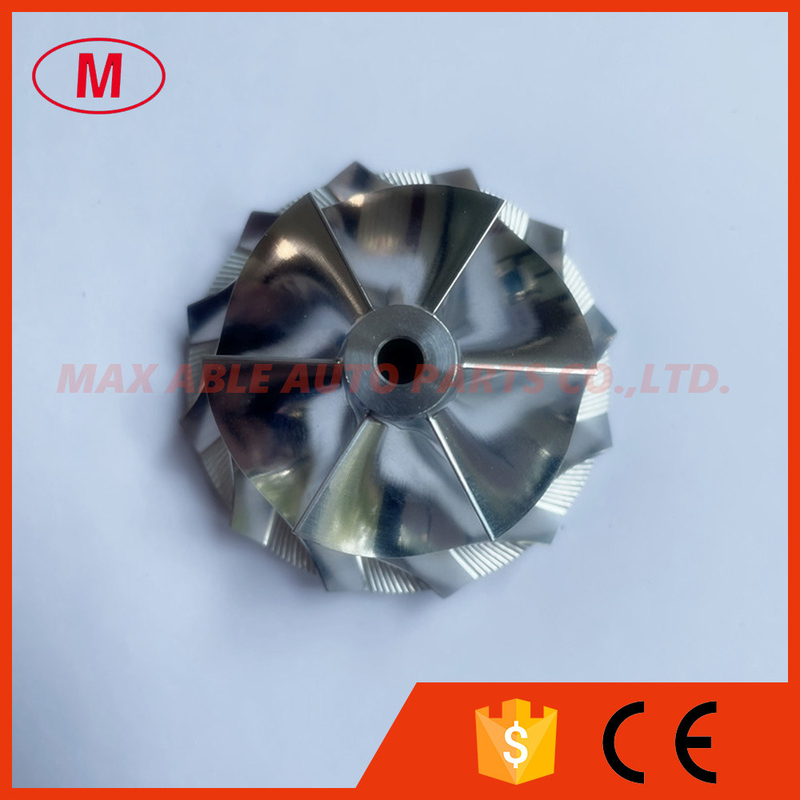

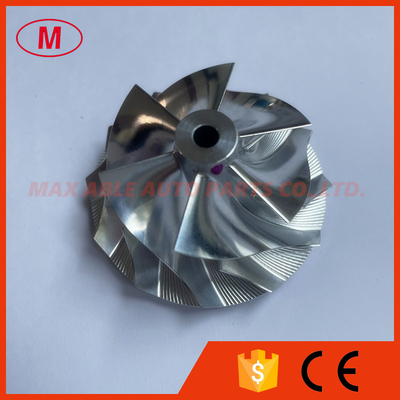

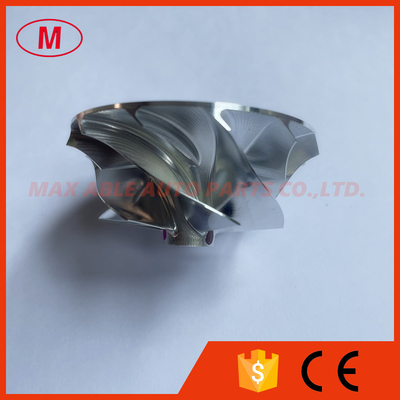

2.K04 41.00/53.04mm 6+6 Blades Milling/aluminum 2618/billet Compressor Wheel
3.SIZE:
Nose Diameter:11.20mm
inducer:41.00mm
Exducer:53.04mm
Tapered tip exducer:54.44mm
Tip height:4.50mm
Superback:3.27mm
Overall height:27.85mm
bore size :4.61mm
bore type:through
Trailing angle:45 degree
Cutback:6.8mm
Blades height:21.53mm
splitter height:10.10mm
Sp height angle:-11.50
6+6 blades
forward rotation
Tapered tip angle:11 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5. aluminum 2618/milling/ billet high performance compressor wheel
6.Please send email to me or talk to me on online ,if you want to know more details.
All the compressro wheels have been balanced.
