| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | K36 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:K36 Forward

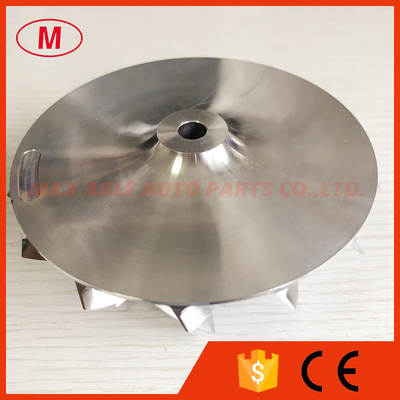

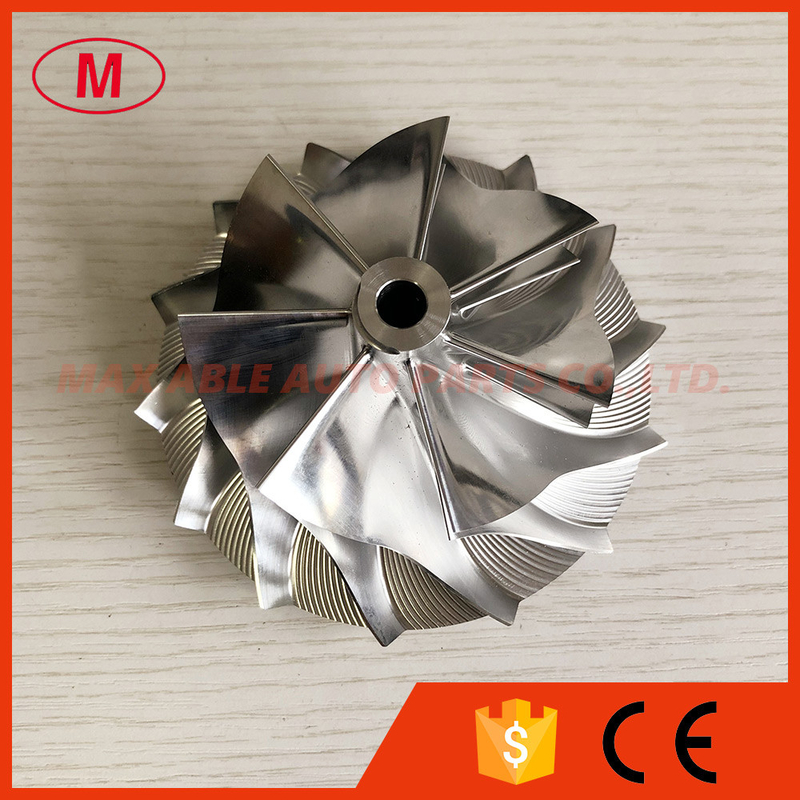

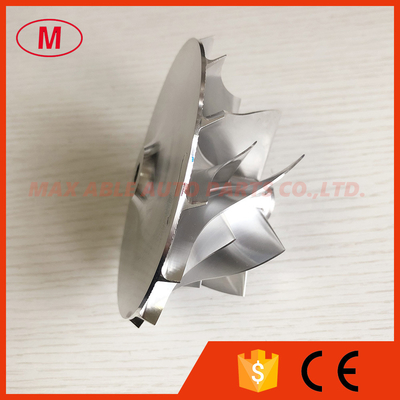

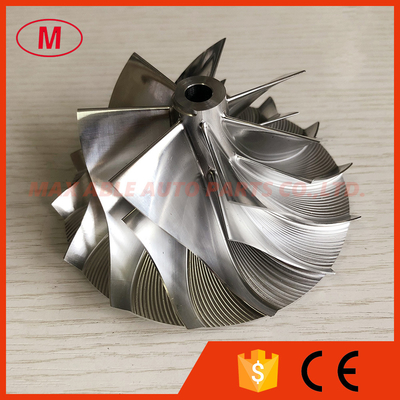

2.k36 Forward 73.00/101.87mm 7+7 blades turbo turbocharger aluminum 2618/milling/billet compressor wheel
3.Size:
Nose diameter:15.90mm
Inducer:73.00mm
exducer:101.87mm
Tapered tip exducer:107.93mm
Tip height :6.75mm
superback:6.01mm
Overall height:52.91mm
Bore size:7.94mm
Trailing Angle:60
Cutback:0.0
SP height Angle:2.10
Blade height:41.79mm
Splitter Height:24.60mm
7+7 blades
Tapered tip Angle: 30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
We can produce as your requirement.
