| Place of Origin: | CHINA |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Type: | Turbochargers |
|---|
1.Model: K04 forward

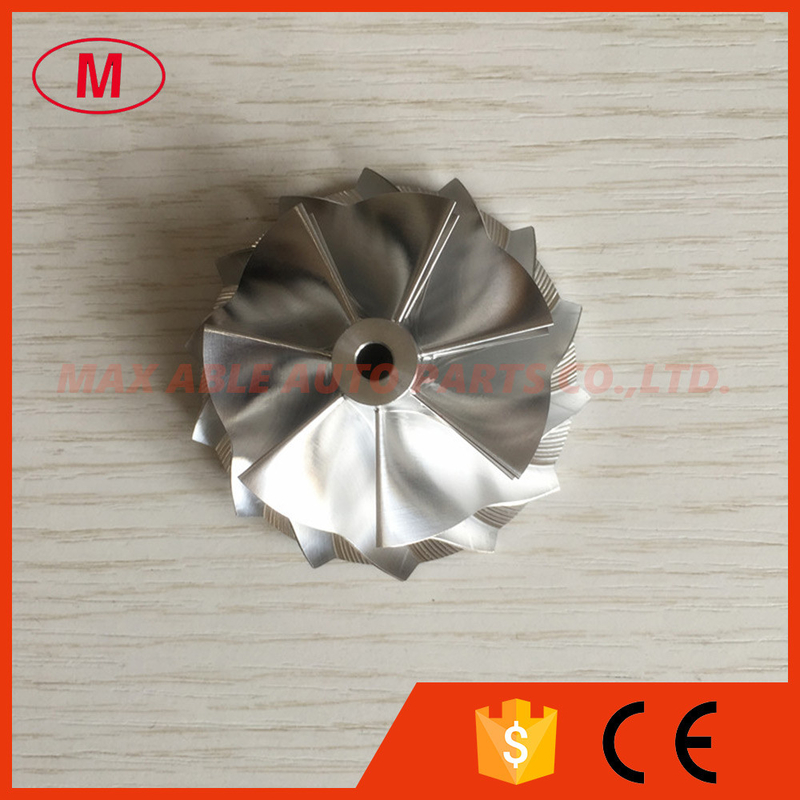

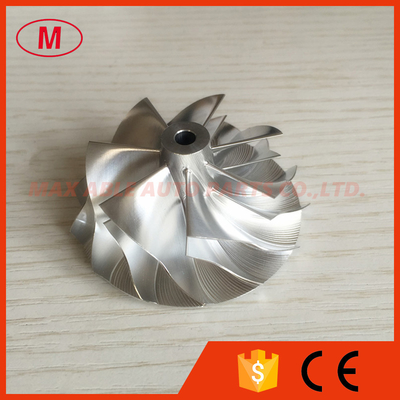

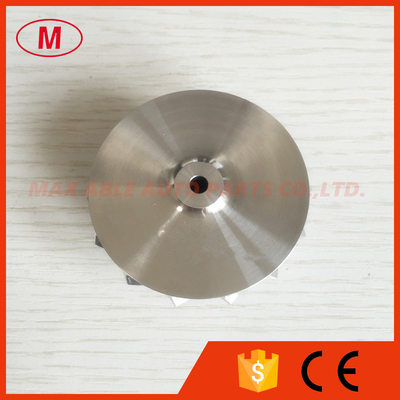

2.K04 5306-123-2014 46.39/56.08mm 7+7 blades aluminum 2618/milling/billet compressor wheel for 5304-970-0064 53049700064
3.SIZE:
Nose diameter:10.97mm
inducer:46.39mm
Exducer:56.08mm
Tapered tip exducer:59.67mm
Tip height:4.68mm
Superback:1.80mm
Overall height:25.68mm
bore size :4.61mm
bore type:through
Trailing angle:60
Cutback:0.0
SP Height angle:-4.00
blades height:19.59mm
Splitter height:12.90mm
7+7blades
4.Good quality and competitive price
5.Please send email to me or talk to me on online ,if you want to know more details.
All the billet compressor wheels have been balanced.
