| Place of Origin: | CHINA |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Type: | Turbochargers |
|---|

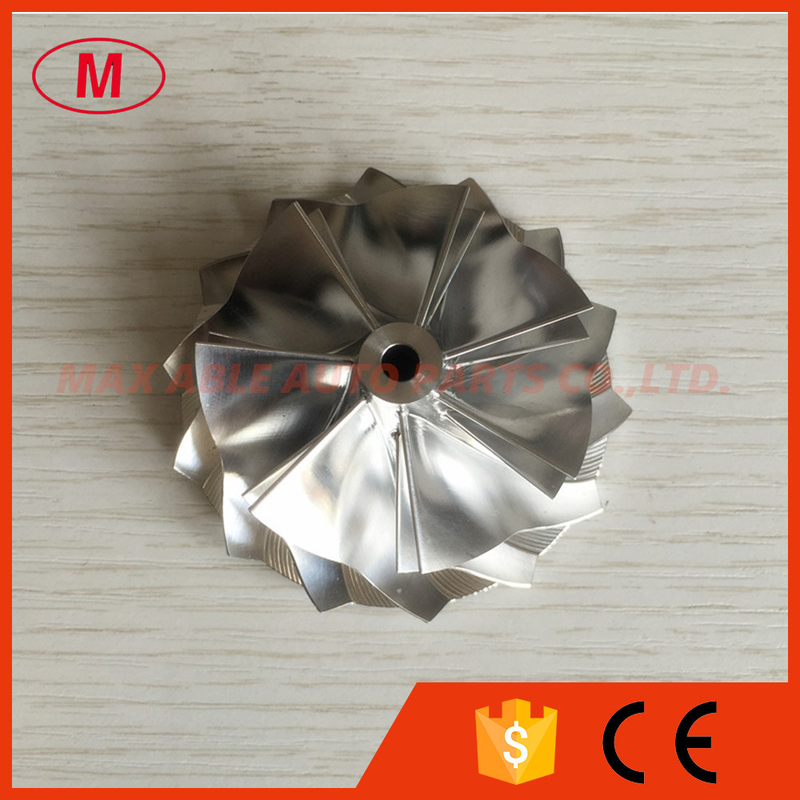

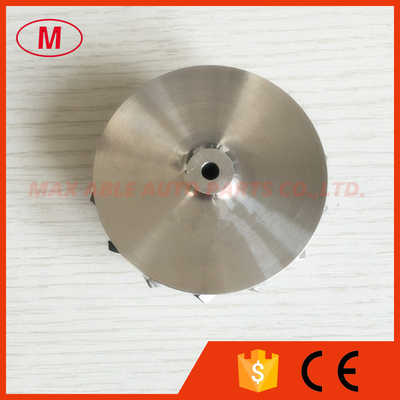

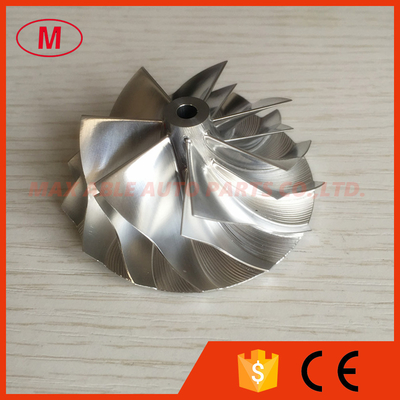

1.Model: K04 Forward
2.K04 5306-123-2014 Upgrade 51.03/61.98mm 7+7 blades aluminum 2618/milling /billet compressor wheel for
5304-970-0064 Upgrade 5304-123-0000
3.SIZE:
Nose diameter:10.16mm
inducer:51.03mm
Exducer:61.98mm
Tapered tip exducer:66.13mm
Tip height:4.60mm
Superback:1.80mm
Overall height:25.68mm
bore size :4.61mm
Trailing angle:45
Cutback:0.0
SP Height angle:-1.20mm
Blades height:20.56mm
Splitter height:13.90mm
7+7blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.Please send email to me or talk to me on online ,if you want to know more details.
All the billet compressor wheels have been balanced.
