| Model Number: | KP35 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

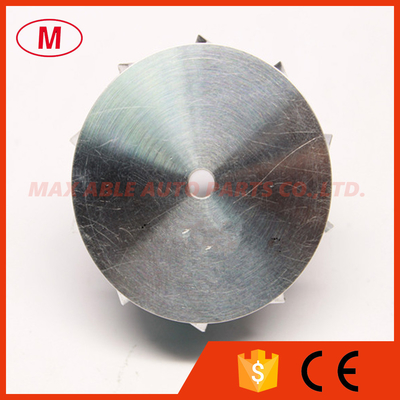

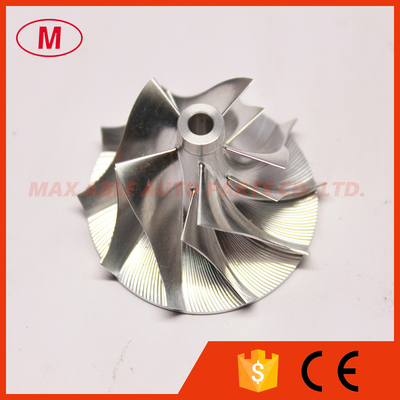

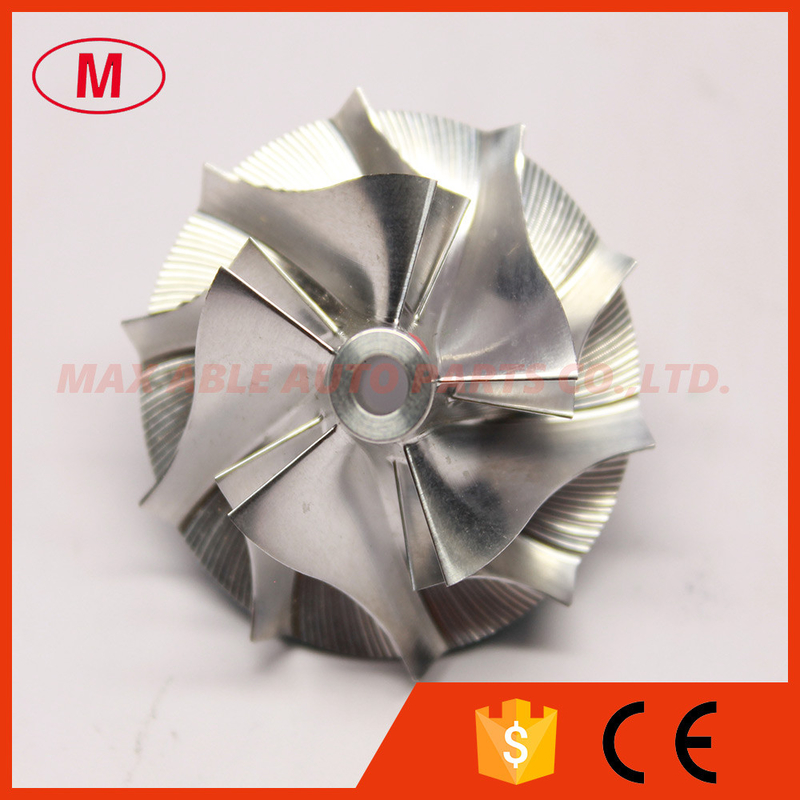

1. KP35 29.50/40.81mm 5435-123-2001 1303-035-400 5+5 blades high performance milling/aluminum 2618/Billet compressor wheel for 5435-970-0000/2/5435-710-0500
2.Size:
Nose diameter:8.03mm
Inducer :29.50mm
Exducer:40.81mm
Tapered tip exducer:44.15mm
Tip height:3.89mm
superback:0.00mm
Overall height:21.00mm
bore size:4.10mm
bore type:through
Trailing angle:65 degree
Cutback:0.0
Blades height:16.62mm
Splitter height:12.10mm
Sp height angle:-6.20
5+5 blades
forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
3.High quality and competitive price.
4.Application:
5435-970-0000
5435-970-0002
5435-710-0500
We have more size and we can produce as your requirement .
All the compressor wheels have been balanced.
