CT26 39.00/62.00mm 5+5 blades 17201-46010 Turbo milling/aluminum 2618/billet compressor wh

Model Number:	CT26

Contact Now

Detailed Product Description

1. MODEL:CT26 forward

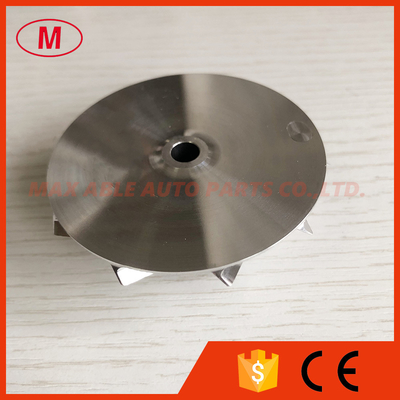

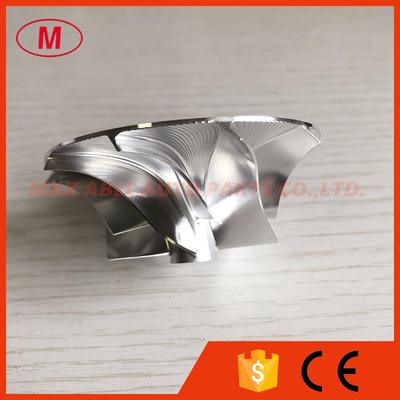

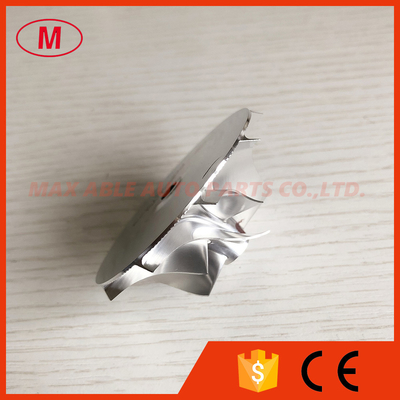

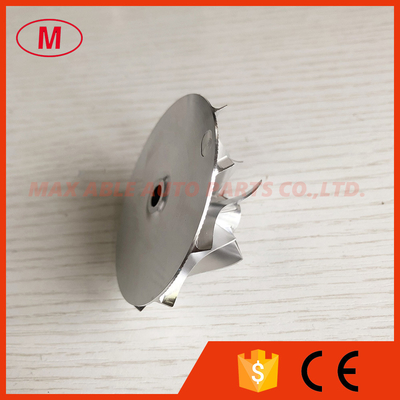

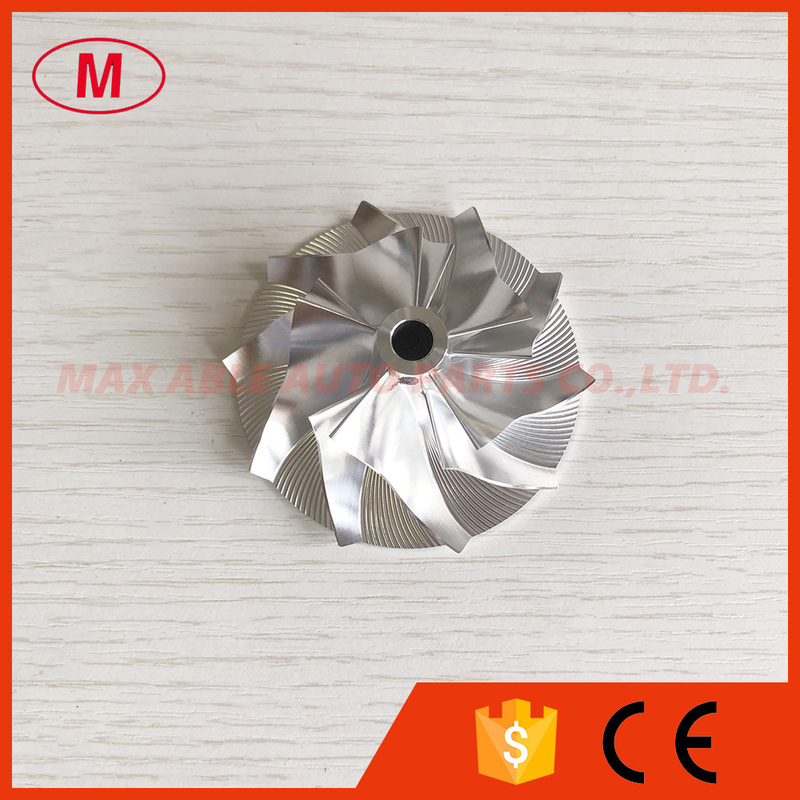

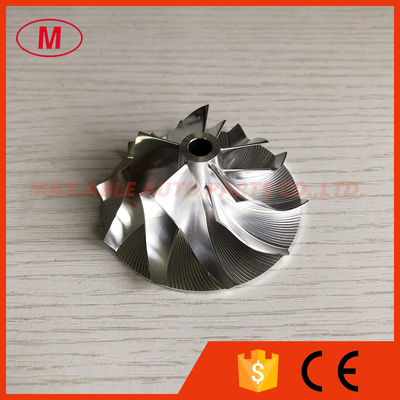

2.CT26 39.00/62.00mm 5+5blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel for 17201-46010

3.Size:

Nose diameter:11.02mm

Inducer:39.00mm

exducer:62.00mm

Tapered tip exducer:65.91mm

Tip height:4.38mm

Superback:0.60mm

bore size :6.50mm

Overall height:26.10mm

Cutback:2.0

Trailing Angle:55

Splitter height:17.90mm

SP height angle:-9.60

Blades height:23.50mm

5+5blades forward

Tapered tip angle:30 degree

FIT for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
