| Certification: | ISO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:GT15-25 forward

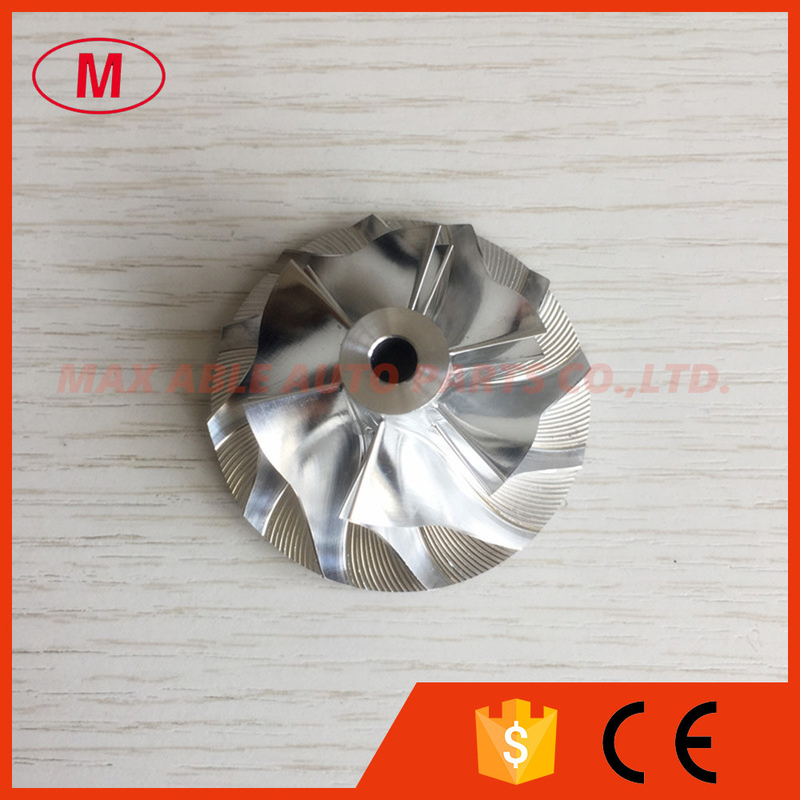

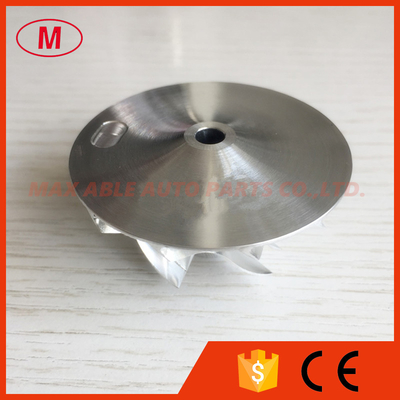

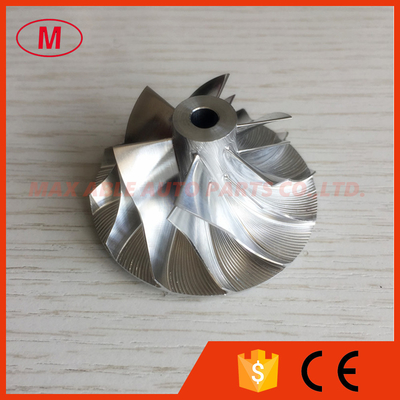

2.GT15-25 702489-0009/6/2 34.62/49.00mm 6+6 blades turbocharger turbo billet/milling/aluminum 2618 compressor wheel for 717858/717858/724930/750718
3.Size:
Nose diameter:11.76mm
inducer:34.62mm
Exduder:49.00mm
Tip height:3.56mm
Superback:2.40mm
Overall height:24.89mm
bore size :5.08mm
bore type:through
Trailing Angle: 45 degree
Cutback:0.0
Blades height:19.02mm
Splitter height:13.85mm
Sp height angle:-7.40
Tapered tip Angle: 0 degree
6+6 blades
Forward rotation
Fit for OE compressor housing
Application:
717858
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
