| Model Number: | TD04HL 19T |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD04HL 19T forward

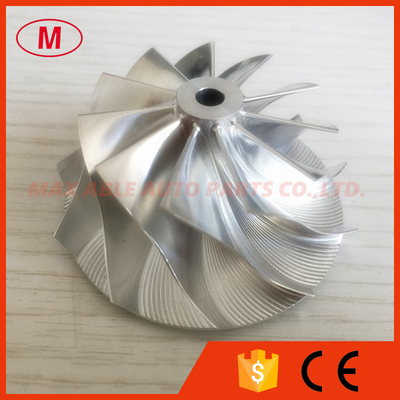

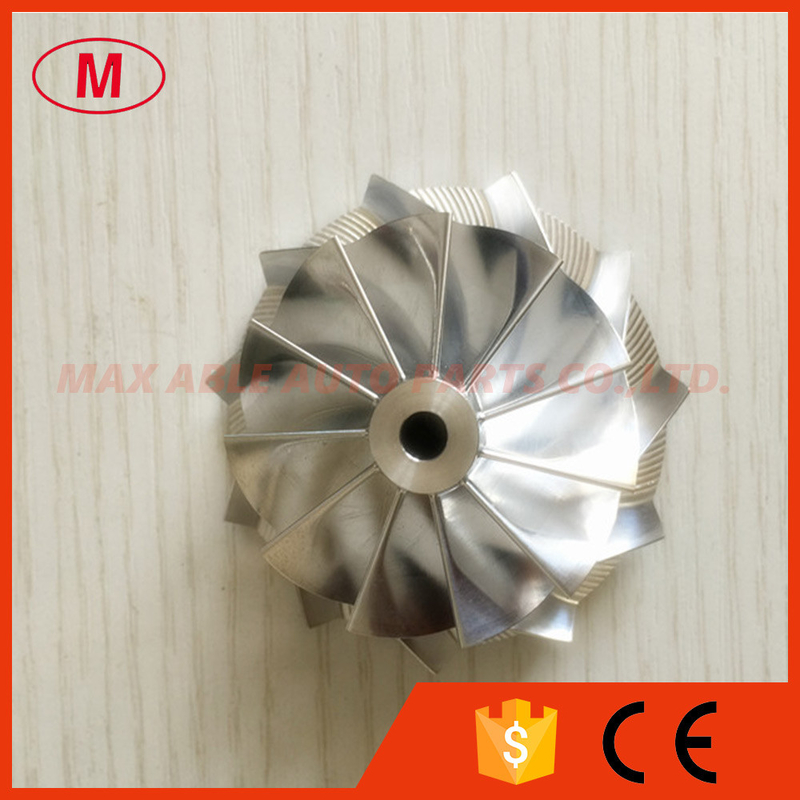

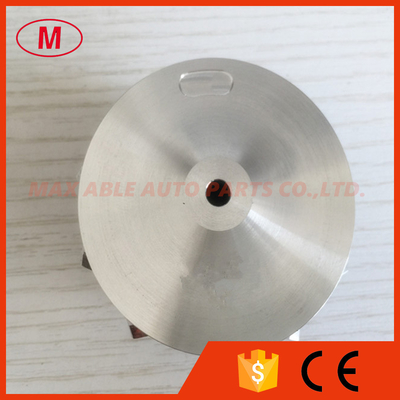

2. TD04HL 19T 46.02X58.00mm 11+0 blades 49189-X performance design Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:11.82mm
Inducer:46.02mm
Exducer:58.00mm
Tapered tip exducer:62.58mm
Tip height:4.97mm
Superback:1.90mm
Overall height:26.13mm
Bore size:5.00mm
Trailing angle:45
Cutback:6.0
SP Height angle:0.00
Blades height:22.74mm
Splitter height:0.00
11+0 blades
Forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.Any questions please send email to me.
6.Application:
7.All the compressor wheels have been balanced.
