| Model Number: | HY35 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:HY35 Forward

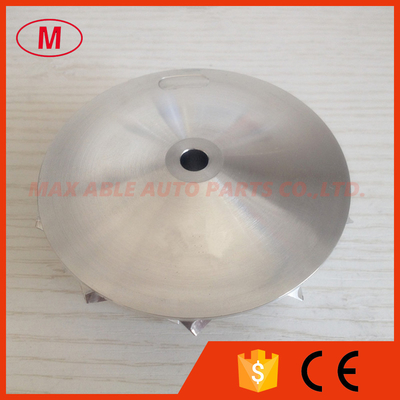

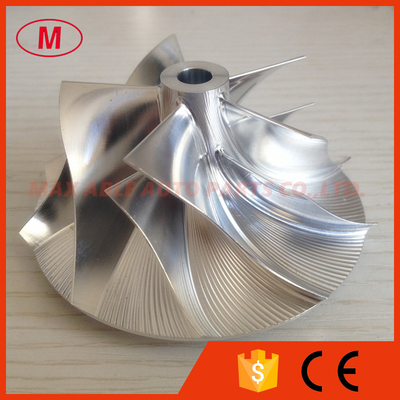

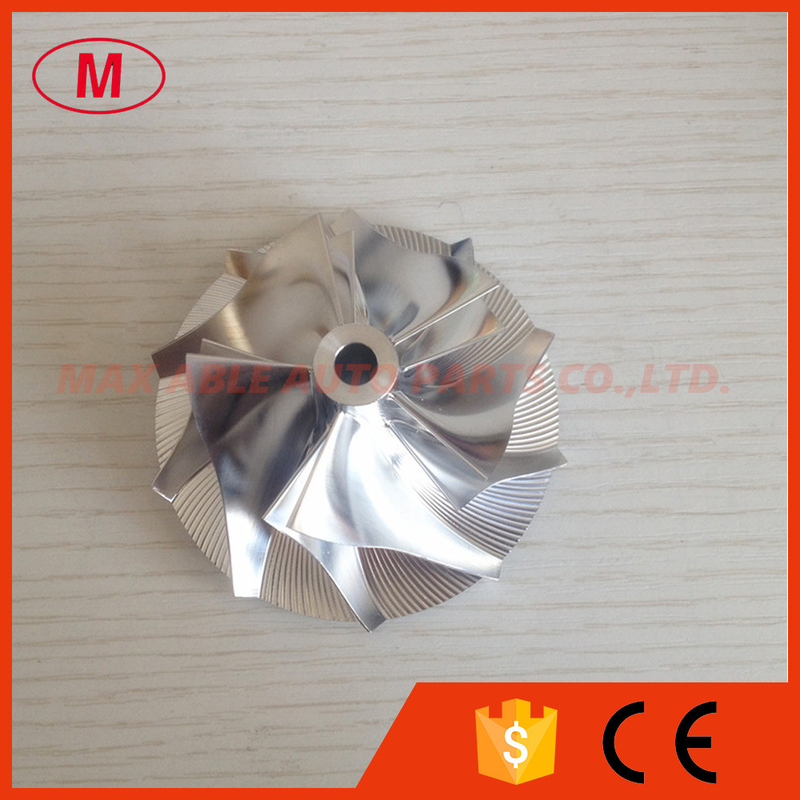

2.HY35 55.96/78mm 5+5 blades high performace design Turbocharger Billet/aluminum 2618/milling compressor wheel for 2003-2004 Ram
3.Size:
Nose diameter:13.92mm
Inducer:55.96mm
Exducer:78.00mm
Tapered tip exducer:82.13mm
Tip height: 4.58mm
Superback:5.09mm
Overall height:39.38mm
bore size :7.00mm
bore type:through
Trailing angle:60 degree
Cutback:0.0
SP Height angle:-7.00
Blades height:32.03mm
Splitter height:22.80mm
5+5 blades
forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
We can produce as your requirement.
