| Model Number: | TD05H-20G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD05H 20G upgrade forward

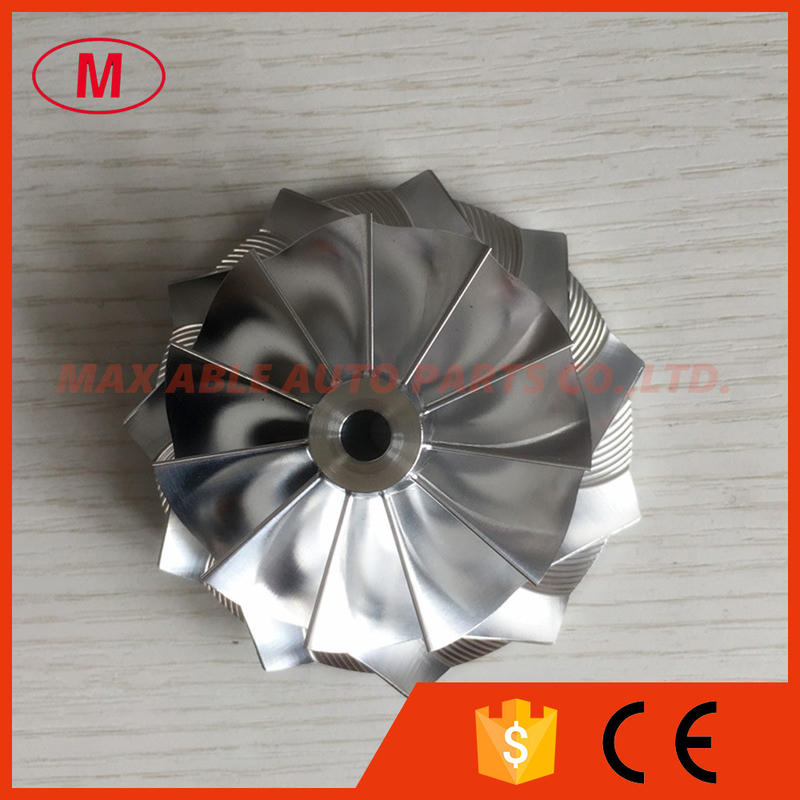

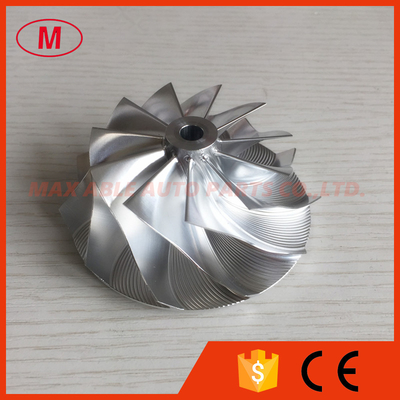

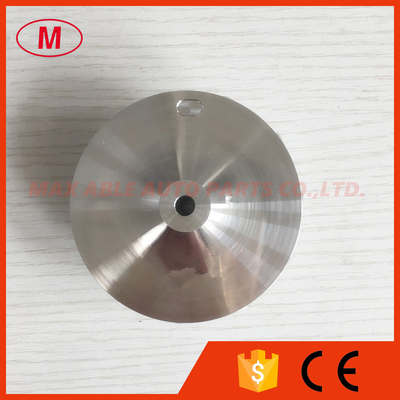

2.TD05H 20G upgrade 58.00/76.13mm 11+0 blades Turbocharger milling/aluminum 2618/Billet compressor wheel
3.Size:
Nose diameter:14.78mm
inducer:58.00mm
Inducer:76.13mm
Tapered tip exducer:80.49mm
Tip height:7.72mm
Superback:2.90mm
Overall height:33.25mm
bore size :6.50mm
bore type:through
Trailing angle:50
Cutback:0.0
SP height angle:0.00
Splitter height:0.00
Blade height:27.27mm
11+0 blades
forward rotation
Tapered tip angle:18 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the billet compressor wheels have been balanced.
