| Place of Origin: | China |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD03 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD03 Forward

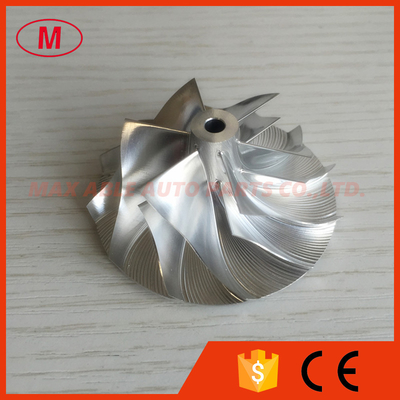

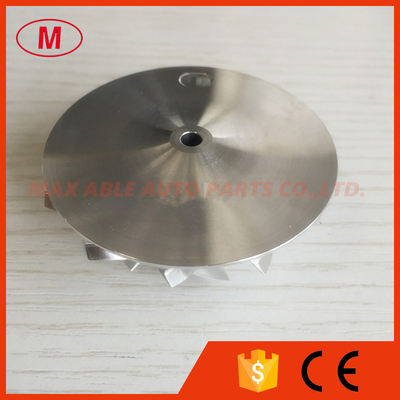

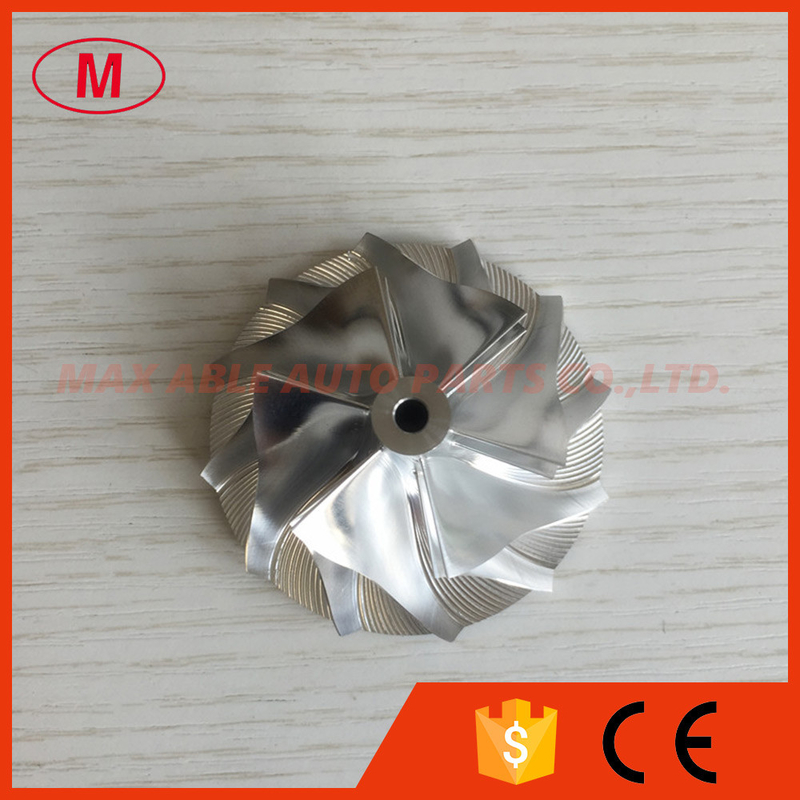

2.TD03 39.60/56.00mm 6+6 blades Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:9.52mm
Inducer:39.60mm
Exducer:56.00mm
Tapered tip exducer:58.27mm
Tip height:4.50mm
Superback:1.68mm
Overall height:24.40mm
bore size :4.00mm
Trailing angle:60
Cutback:0.0
SP Height angle:-5.00
blades height:19.45mm
Splitter height:13.05mm
6+6 Blades
forward rotation
Tapered tip angle:18 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced
