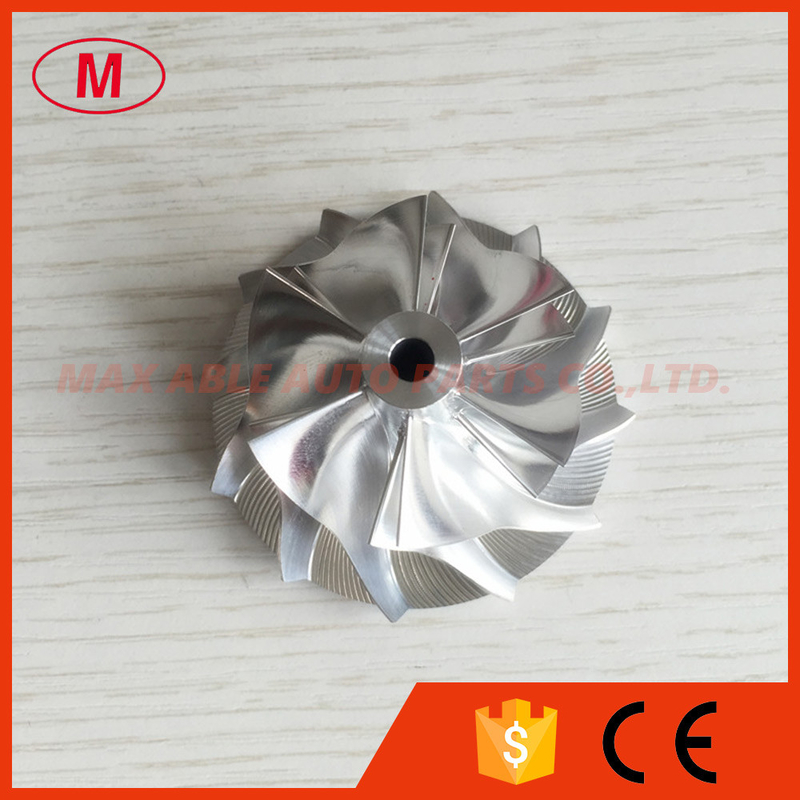

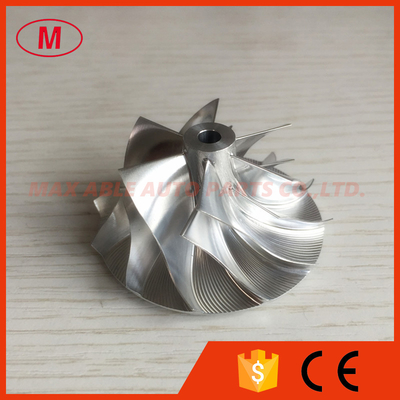

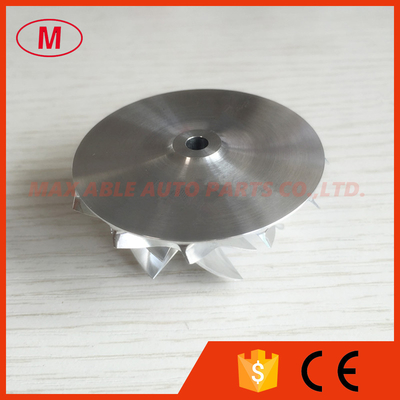

K04 5304-123-2209 37.84/50.96mm 6+6 blades high performance billet compressor wheel

1.Model: K04 forward
2.K04 5304-123-2209 37.84/50.96mm 6+6 blades high performance aluminum 2618/milling billet compressor wheel for 5303-988-0099/102/110/112/117/118/122/142/150/151/162, 5304-988-0057

3.SIZE:

Nose diameter:10.61mm

inducer:37.84mm

Exducer:50.96mm

Tapered tip exducer:54.29mm

Tip height:3.88mm

Superback:1.80mm

Overall height:25.46mm

bore size :4.61mm

bore type:through

Trailing angle:60

Cutback:0.0

SP Height angle:-2.60

Blades height:21.94mm

Splitter height:14.30mm

6+6 blades

Forward rotation

Tapered tip angle:30 degree

Fits OE Compressor Housing

4.Good quality and competitive price

5.Please send email to me or talk to me on online ,if you want to know more details.

All the billet compressor wheels have been balanced.
