1. MODEL:TA31 forward

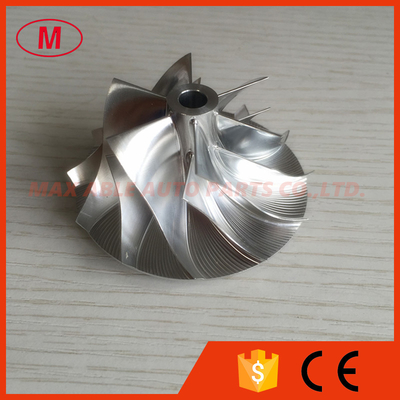

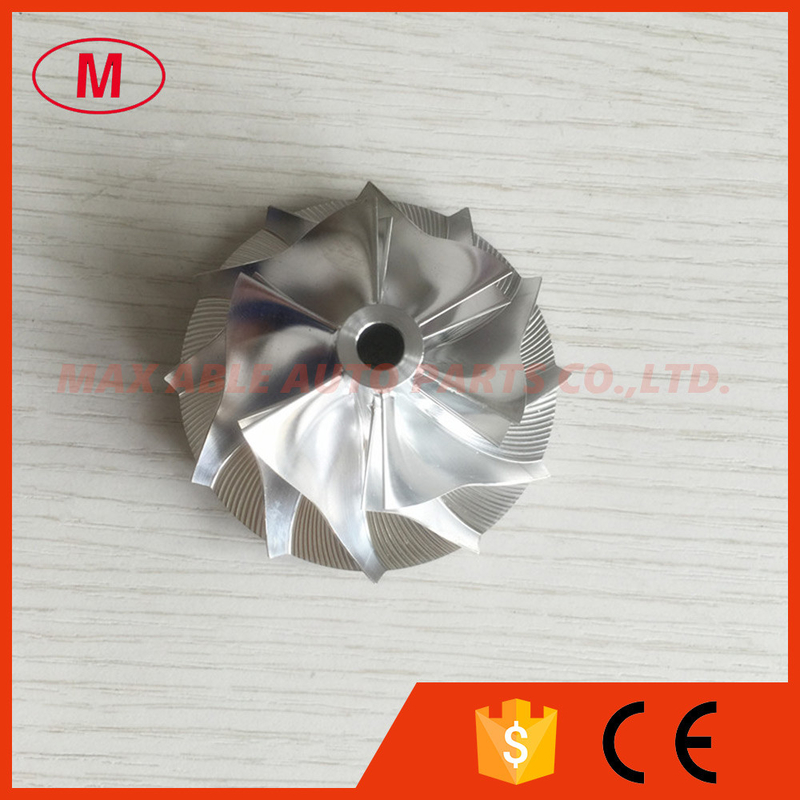

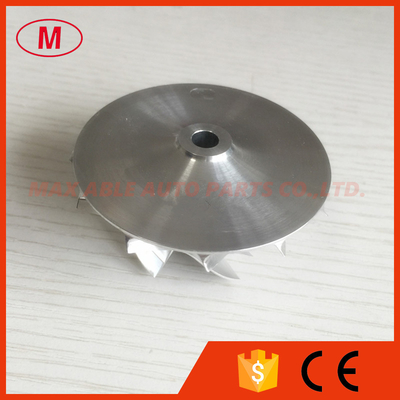

2. TA31 6207-81-8130 42.55/60.25mm 6+6 blades 409096-0014 high performance billet/milling/aluminum 2618 compressor wheel for 452012-0003/454114-0001/454177-0001/465103-0001/465133-0003/465143-0007/465163-0001
3.Size:
Nose diameter:11.48mm
inducer:42.55mm
Exduder:60.25mm
Tapered tip exducer:63.85mm
Tip height:4.12mm
Superback:3.81mm
Overall height:31.00mm
bore size:6.35mm
bore type:through
Trailing angle:60 degree
Cutback:1.0
Blades height:25.29mm
Splitter height:18.10mm
Sp height angle:-7.00
6+6 blades
forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
6.Application:
452012-0003
454114-0001
454177-0001
465103-0001
465133-0003
465143-0007
465163-0001
We can produce as your requirement.
All the turbine shaft and compressor wheel have balanced .
The more models we also have.
