| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:RHF5 forward

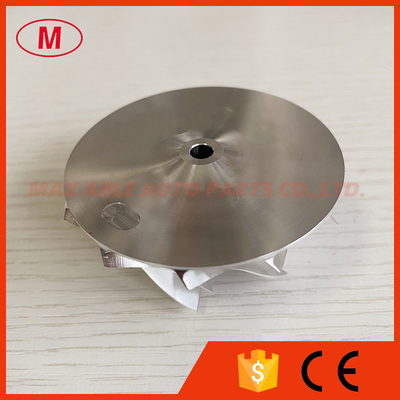

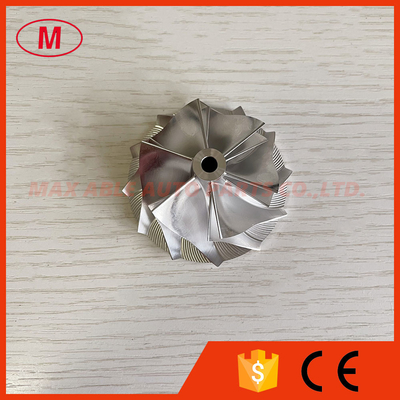

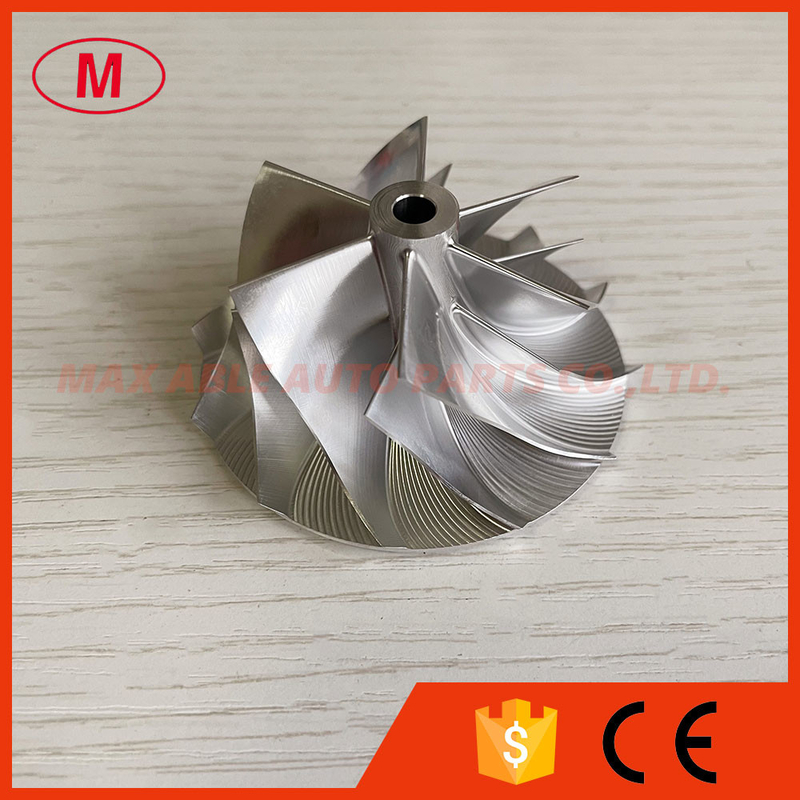

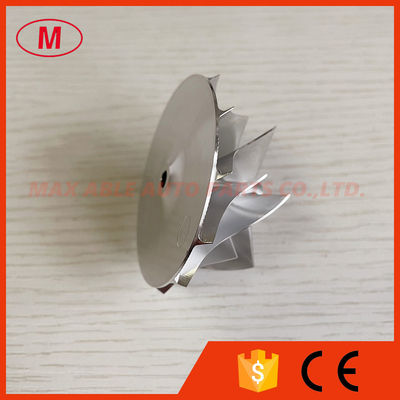

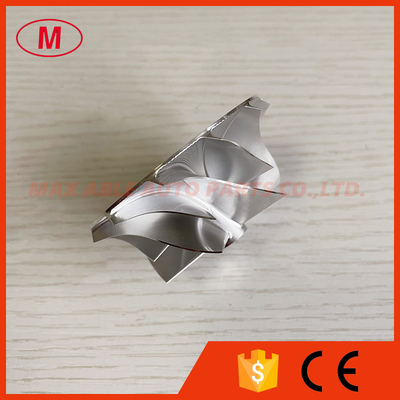

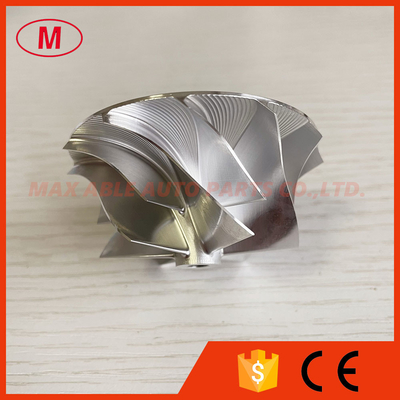

2. RHF5 forward 47.00/60.50mm 6+6 blades high performance Thin Blades Turbo Billet/milling/aluminum 2618 compressor wheel for VF54 upgrade
3.Size:
Nose diameter:10.61mm
Inducer:47.00mm
exducer:60.50mm
Tapered tip exducer:64.07mm
Tip height:4.09mm
Superback:1.53mm
Overall height:30.00mm
Bore size:5.10mm
bore type:through
Trailing angle:60 degree
Cutback:3.0
SP Height angle:-5.50
BladeS height:26.37mm
Splitter height:18.20mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
We also have many other sizes,please don't hestitate to contact me.
All the compressor wheel have been balanced.
