| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD04HL 20G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

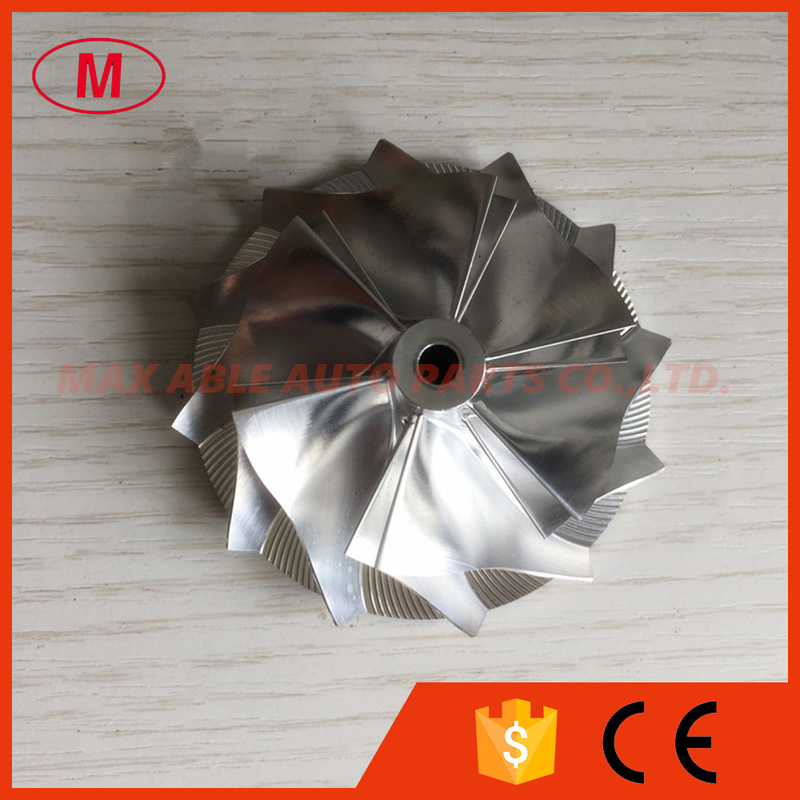

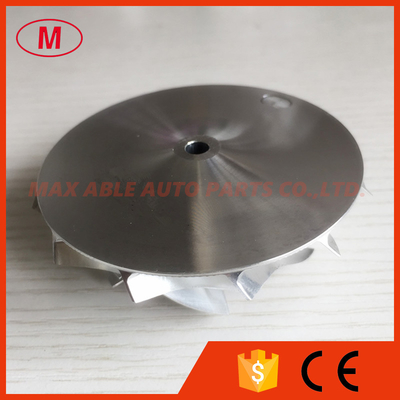

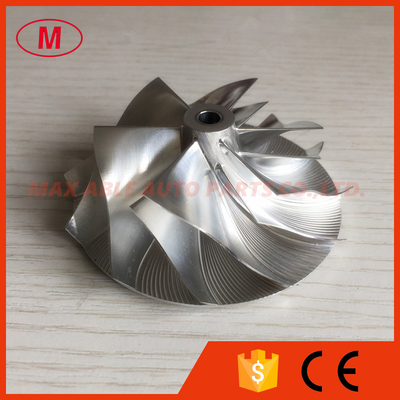

1. MODEL:TD04HL 20G FORWARD
2. TD04HL 20G 52.56X68.00mm 6+6 blades 49189-X performance design Turbocharger Billet/Milling/aluminum 2618 compressor wheel for
3.Size:
Nose diameter:11.73mm
Inducer:52.56mm
Exducer:68.00mm
Tapered tip exducer:73.05mm
Tip height:5.37mm
Superback:1.90mm
Overall height:26.13mm
Bore size:5.00mm
bore type:through
Trailing angle:60 degree
Cutback:0.0mm
Blades height:21.83mm
Splitter height:15.75mm
Sp height angle:-1.70
6+6 blades
forward rotation
Tapered tip angle:30 degree
4.High quality and competitive price.
5.Any questions please send email to me.
6.Application:
All the compressor wheels have been balanced.
