| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
. MODEL:TD05H Forward

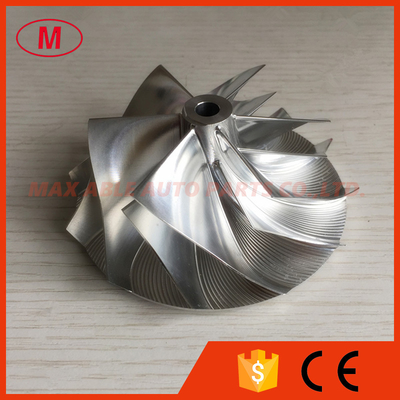

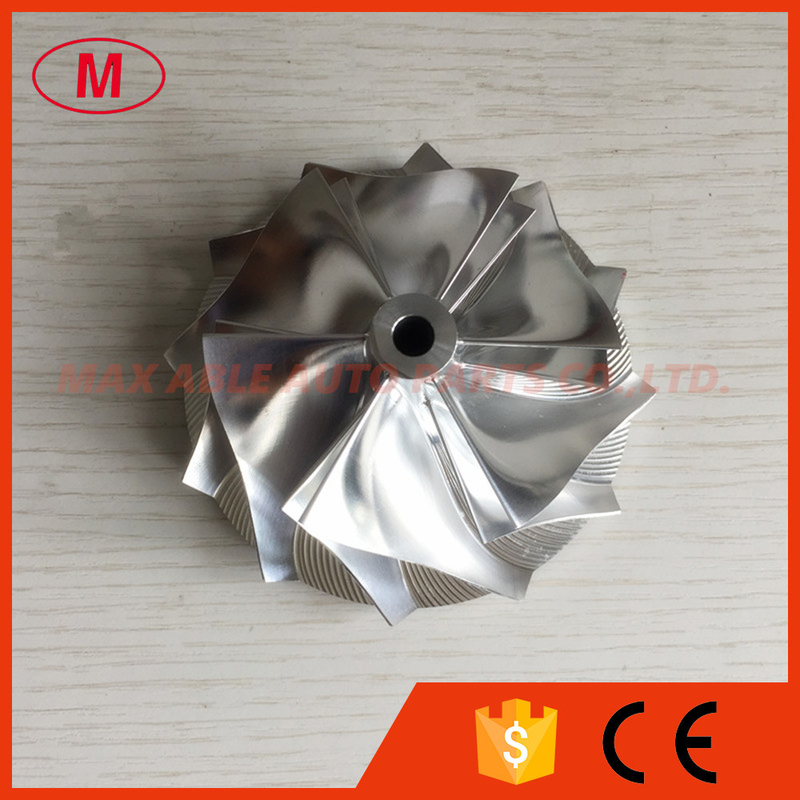

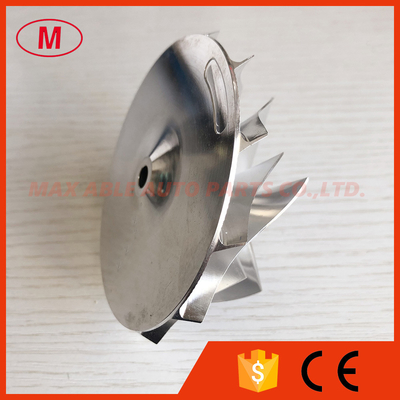

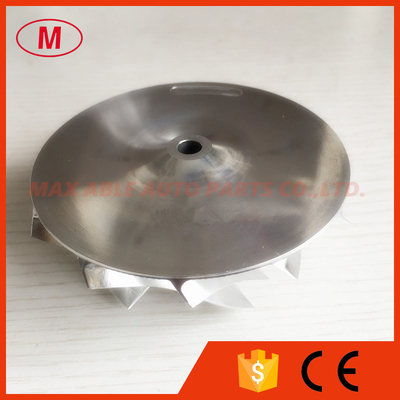

2.TD05H 451470-0001 66.65/84.00mm 6+6 blades high performance turbo aluminum 2618/milling/ Billet compressor wheel for racing
3.Size:
Nose diameter:13.70mm
Inducer:66.65mm
Exducer:84.00mm
Tapered tip exducer :90.20mm
Tip height:6.37mm
Superback:2.70mm
Overall height:35.80mm
Bore size:6.50mm
bore type:through
Trailing angle:50 degree
Cutback:5.0
SP height angle:-1.00
Blades height:30.91mm
Splitter height:20.80mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
We can produce as your requirement.
All the compressor wheels have been balanced.
