| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | RHF5/RHF55 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:RHF5/RHF55 forward

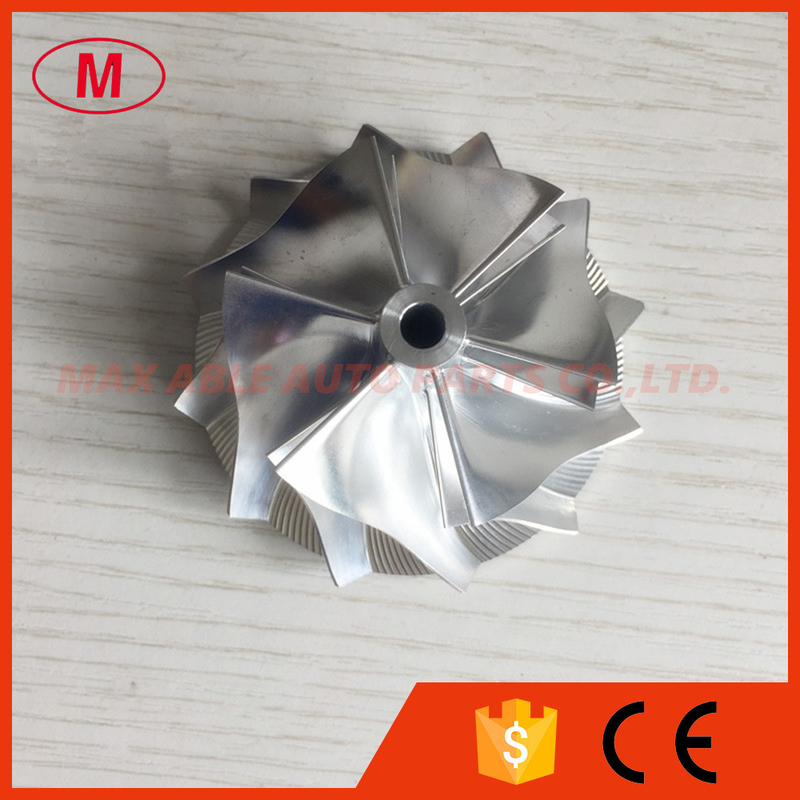

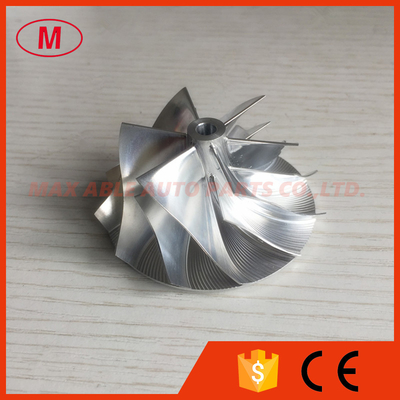

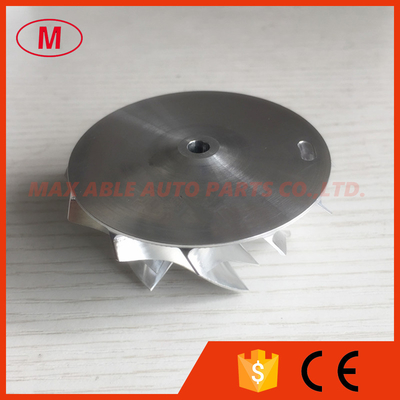

2.RHF5/RHF55 46.30/60.00mm 6+6 blades high performance turbocharger aluminum 2618/Billet/milling compressor wheel for VF39 VF52 S-ubaru EJ25G/E
3.Size:
Nose diameter:9.89mm
Inducer:46.30mm
exducer:60.00mm
Tapered tip exducer:65.29mm
Tip height :5.58mm
superback:1.53mm
Overall height:28.90mm
Bore size:5.10mm
bore type:through
Trailing angle:55 degree
Cutback:-3.0
SP Height angle:-8.00
Blades height:26.15mm
Splitter height:18.40mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
We can produce as your requirement.
