Max Able Auto Parts Co.,Ltd.
Customer Satisfy is the eternal pursue of corporation.
Customer Satisfy is the eternal pursue of corporation.
 |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:RHV5 Forward

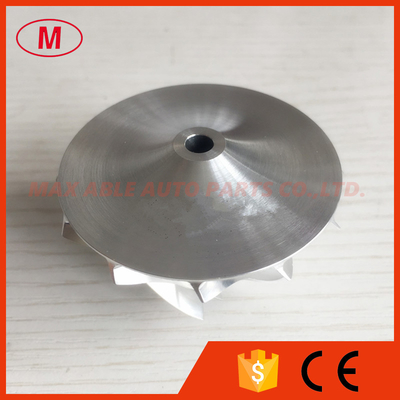

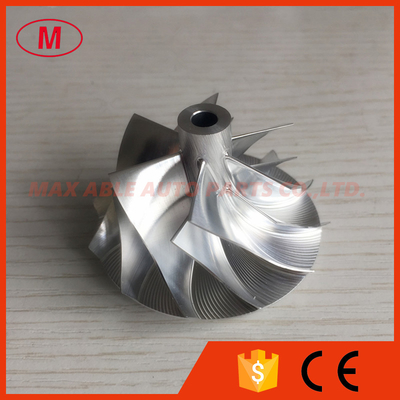

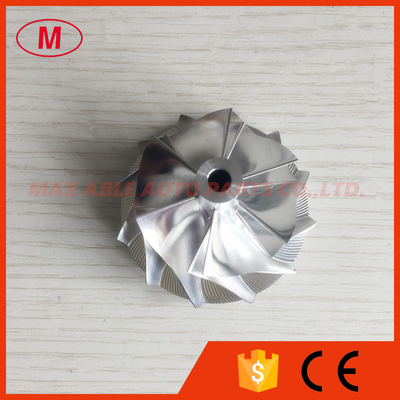

2.RHV5 40.65/52.51mm 6+6 blades turbocharger Billet/milling/aluminum 2618 compressor wheel for VIEZ, VFD30013, VDD30013, VBD30013, VED30013,8980115293, 8980115294, 8980115295, 8980115296 Isuzu D-MAX 3.0 CRD, Rodeo with 4JJ1T
3.Size:
Nose diameter:10.53mm
Inducer:40.65mm
Exducer:52.51mm
Tapered tip exducer :55.90mm
Tip height:3.94mm
Superback:4.50mm
Overall height:34.60mm
Bore Size:5.10mm
Bore type:through
Trailing angle:60
Cutback:3.0
Blades height:23.67mm
Splitter height:16.50mm
SP height angle:-6.20
6+6 blades
forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
ALL THE billet compressor wheels have been balanced.
