Home ProductsBillet compressor wheel

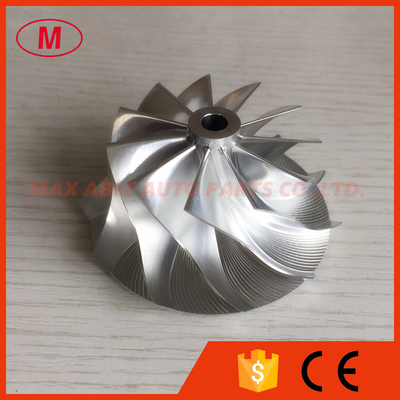

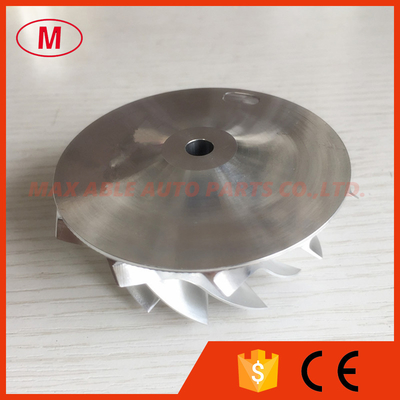

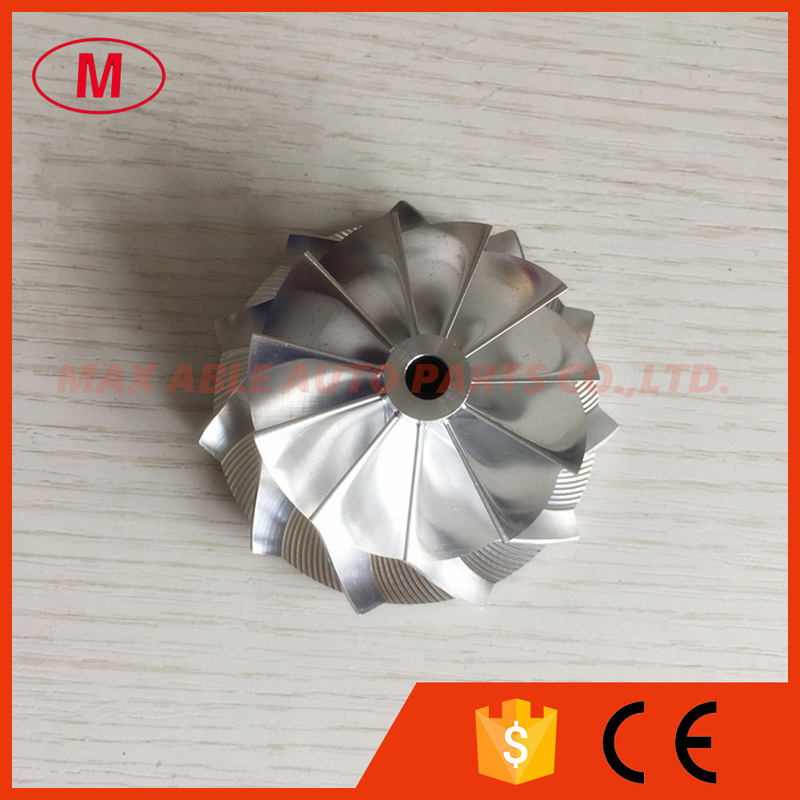

TD05H 20G 49179-43400 52.56/68.01mm 11+0 BLADES performance Turbo billet compressor wheel

TD05H 20G 49179-43400 52.56/68.01mm 11+0 BLADES performance Turbo billet compressor wheel

    • TD05H 20G 49179-43400 52.56/68.01mm 11+0 BLADES performance Turbo billet compressor wheel
    • TD05H 20G 49179-43400 52.56/68.01mm 11+0 BLADES performance Turbo billet compressor wheel
    • TD05H 20G 49179-43400 52.56/68.01mm 11+0 BLADES performance Turbo billet compressor wheel
  • TD05H 20G 49179-43400 52.56/68.01mm 11+0 BLADES performance Turbo billet compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: TD05H

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description



    1.  MODEL:TD05H 20G

    2.TD05H 20G 49179-43400 52.56/68.01mm 11+0 BLADES high performance Turbocharger Billet/milling/aluminum 2024 compressor wheel

    3.Size:

    Nose diameter:12.80mm

    Inducer:52.56mm

    Exducer:68.01mm

    Tapered tip exducer:73.05mm

    Tip height:5.37mm

    Superback:2.90mm

    Overall height:35.00mm

    Bore:6.50mm

    Blade height:29.20mm

    11+0 blades

    Forward rotation

    4.High quality and competitive price.

    5.Any questions please send email to me.



    All the compressor wheel have been balanced.

    We can produce as your requirement.
