1. MODEL:RHF5 forward

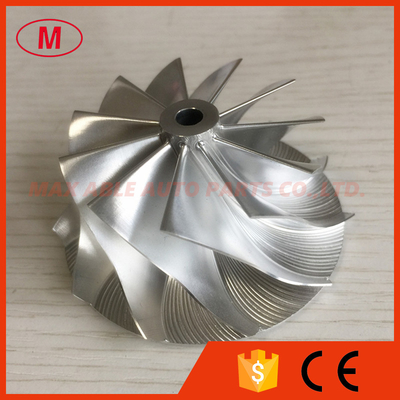

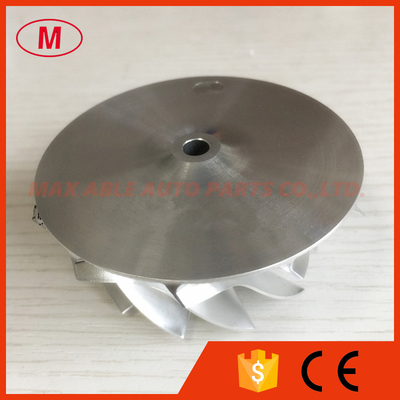

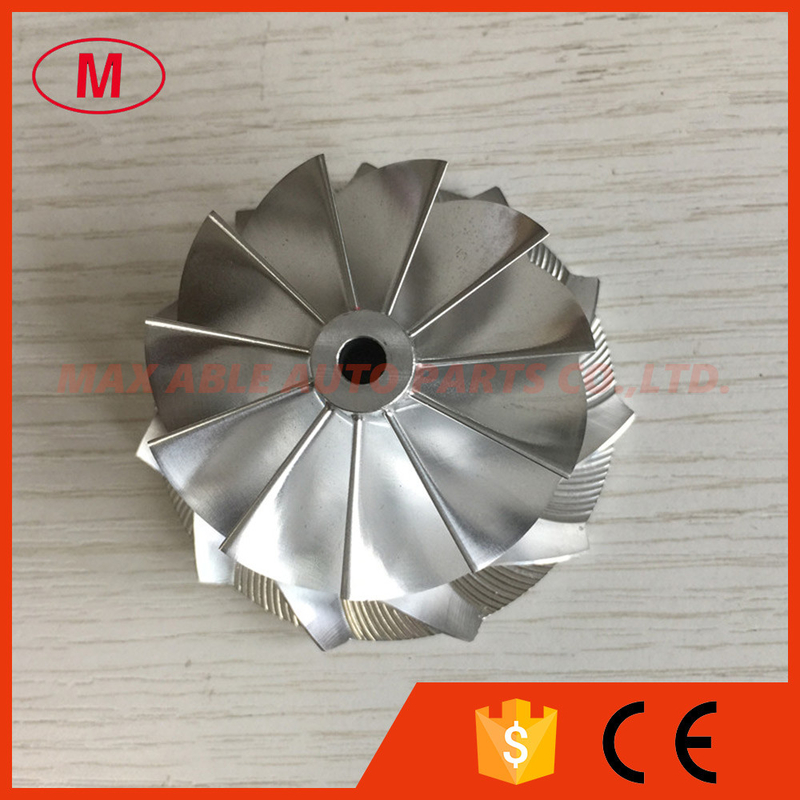

2.RHF5 11+0 blades 49.60/62.00mm high performance turbocharger billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:11.22mm
inducer:49.60mm
Exducer:62.00mm
Tapered tip exducer:65.57mm
Tip height:4.09mm
Superback:1.53mm
Overall height:30.00mm
Bore size:5.10mm
bore type:through
Trailing Angle:50 degree
Cutback:0.0
SP height angle:0.00
Splitter height:0.00mm
Blades height:26.40mm
11+0 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
