| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:K04 forward

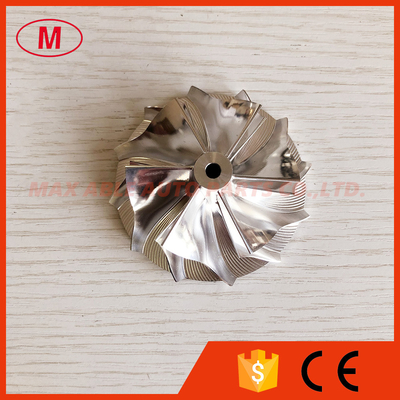

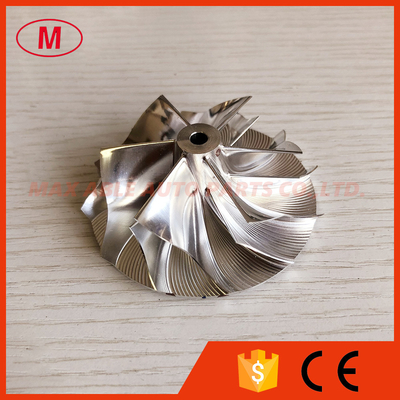

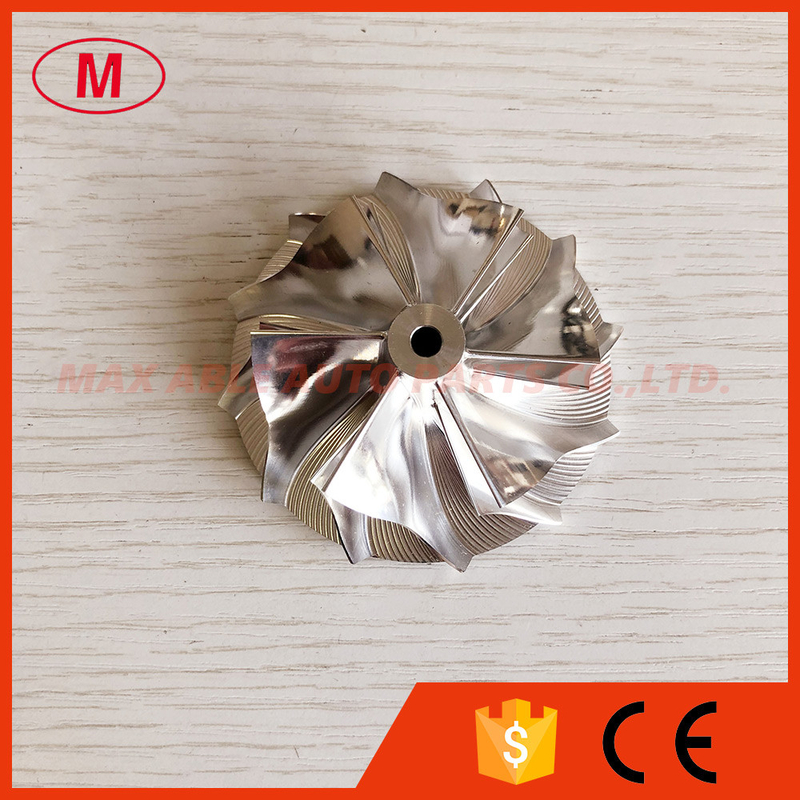

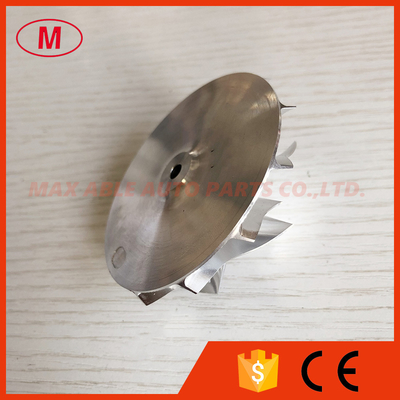

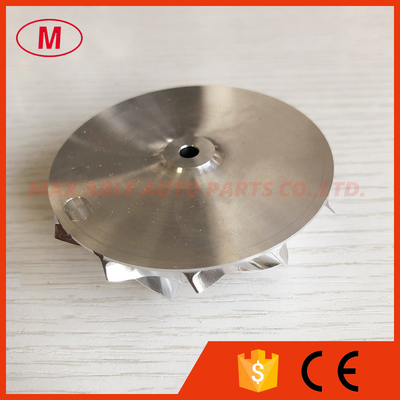

2.K04 54.20/66.56mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:11.80mm
inducer:54.20mm
Exduder:66.56mm
Tapered tip exducer:70.56mm
Tip height:4.93mm
Superback:1.80mm
Overall height:26.00mm
bore size :4.61mm
Trailing Angle:60
Cutback:8.0
SP height angle:-4.00
Blade height:22.50mm
Splitter height:13.50mm
6+6 blades
forward rotation
Tapered tip angle:27 degree
It is Custom size,please check carefully before buying
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
