| Place of Origin: | CHINA |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | K16 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:K16 forward

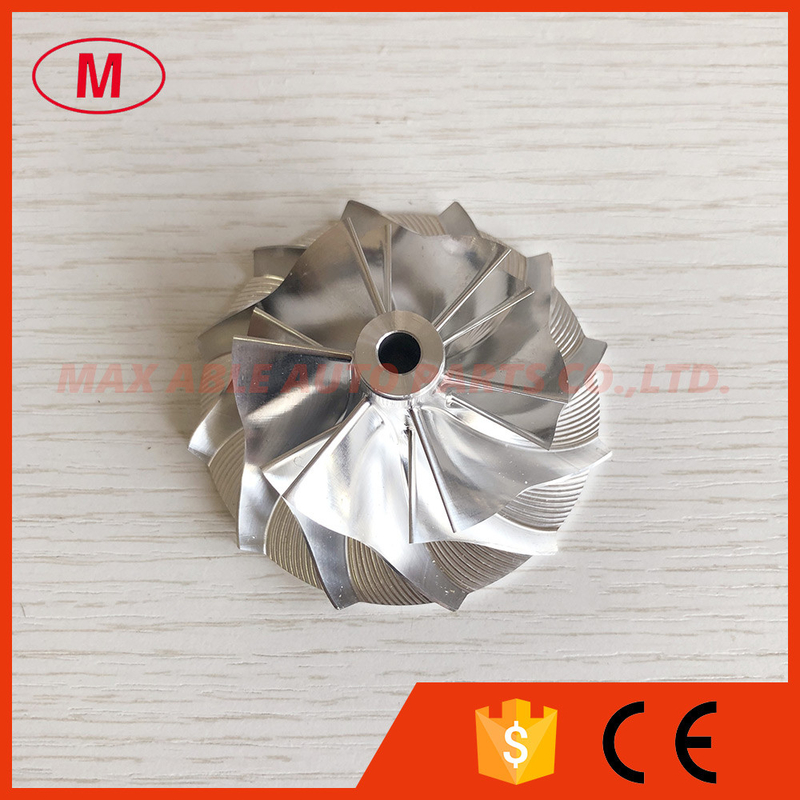

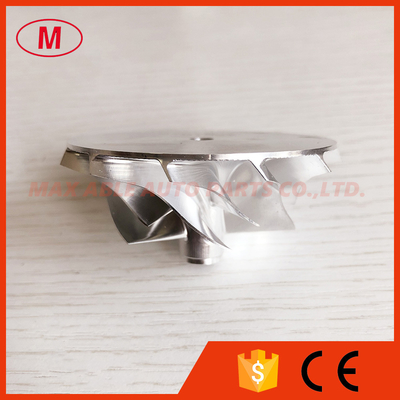

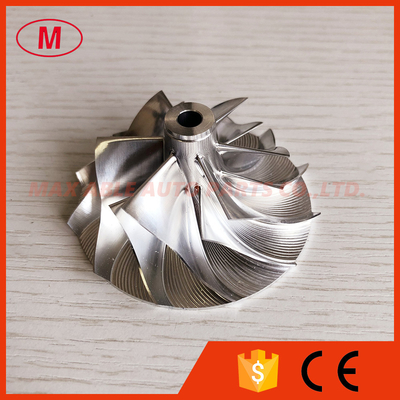

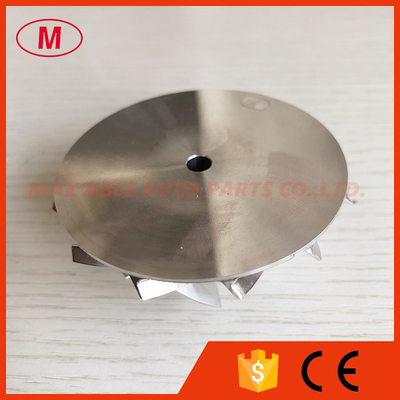

2.K16 45.78/61.98mm 6+6 blades turbo milling/aluminum 2618/Billet compressor wheel
3.Size:
Nose diameter:11.70mm
inducer:45.78mm
Exduder:61.98mm
Tapered tip exducer:65.57mm
Tip height:4.63mm
Superback:0.00mm
Overall height:29.70mm
bore size :5.41mm
Trailing Angle:60
Cutback:8.00
SP height angle:-6.00
Blade height:23.25mm
Splitter height:16.15mm
6+6 blades
Forward rotation
It is custom size ,please check carefully before buying.
Tapered tip angle:27 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
