| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | RHF55 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:RHF55 forward

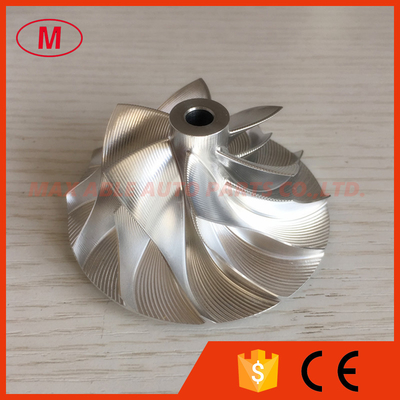

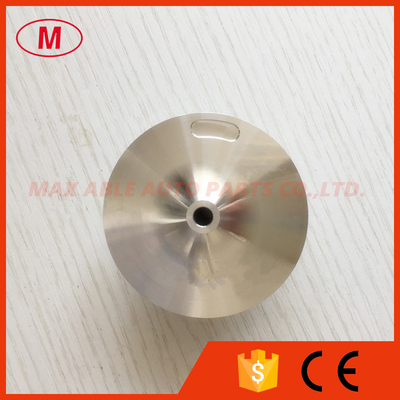

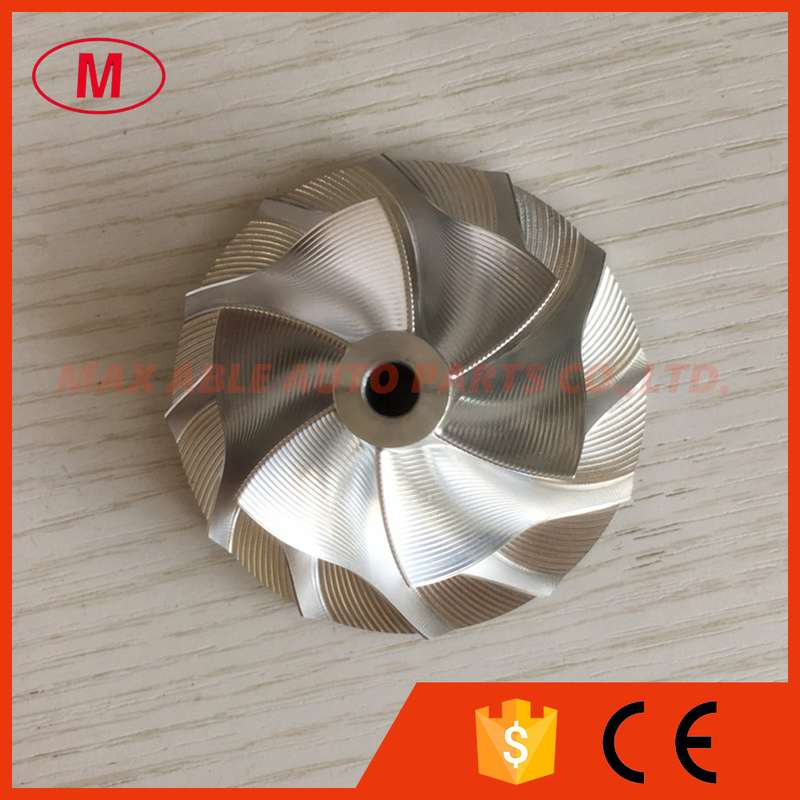

2. RHF55 46.52/68.01mm 6+6 blades point milling Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:13.35mm
Inducer:46.52mm
exducer:68.01mm
Tip height:4.79mm
Superback:3.68mm
Overall height:34.00mm
Bore size:6.10mm
bore type:through
Trailing angle:60 degree
Cutabck:3.0mm
SP Height angle:5.00
Blades height:25.12mm
Splitter height:13.92mm
6+6 blades
Forward rotation
Tapered tip angle:0 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
6.We can produce as your requirement.
ALL the billet compressor wheels have been balanced.
