| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD07S |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:TD07S 25 forward

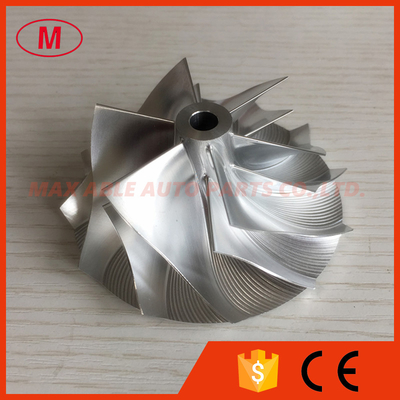

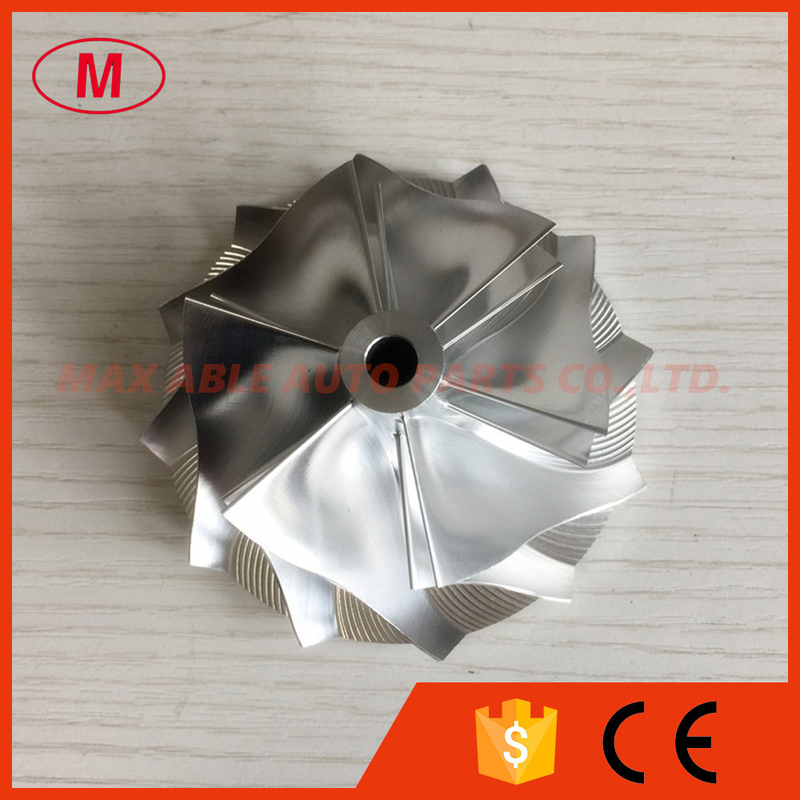

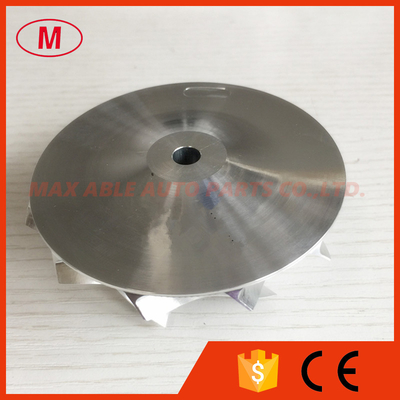

2. TD07S 25G 60.50/78.00mm 6+6 blades racing Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:14.04mm
inducer:60.50mm
exducer:78.00mm
Tapered tip exducer:83.54mm
tip height:5.80mm
Overall height:34.13mm
super back:2.70mm
bore size :7.00mm
bore type:through
Trailing angle:50
blades height:29.57mm
Cutback:1.0
Splitter height :19.20mm
SP height angle:0.0
6+6 blades
forward rotation
Tapered tip angle:30 degree
OE Compressor Housing
4.High quality and competitive price.
5.Any questions please send email to me.
