| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:K04 Forward

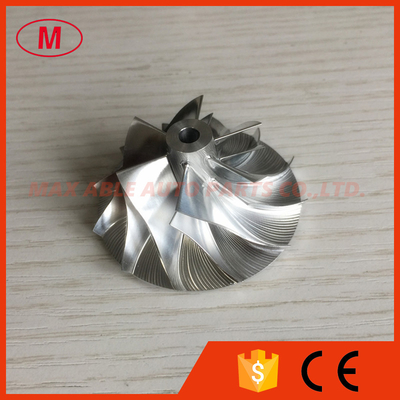

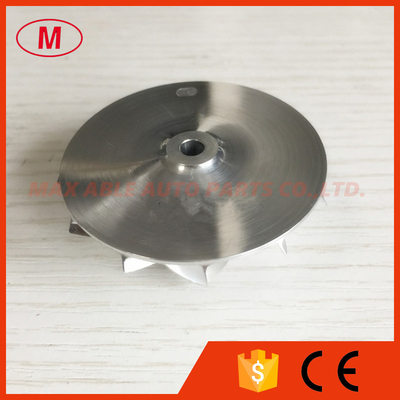

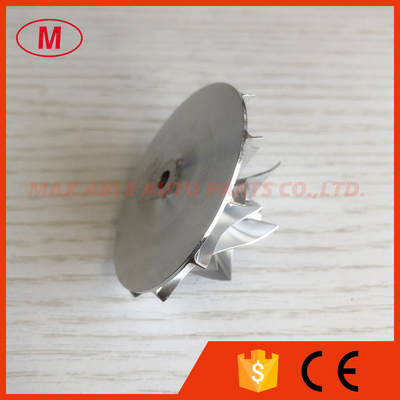

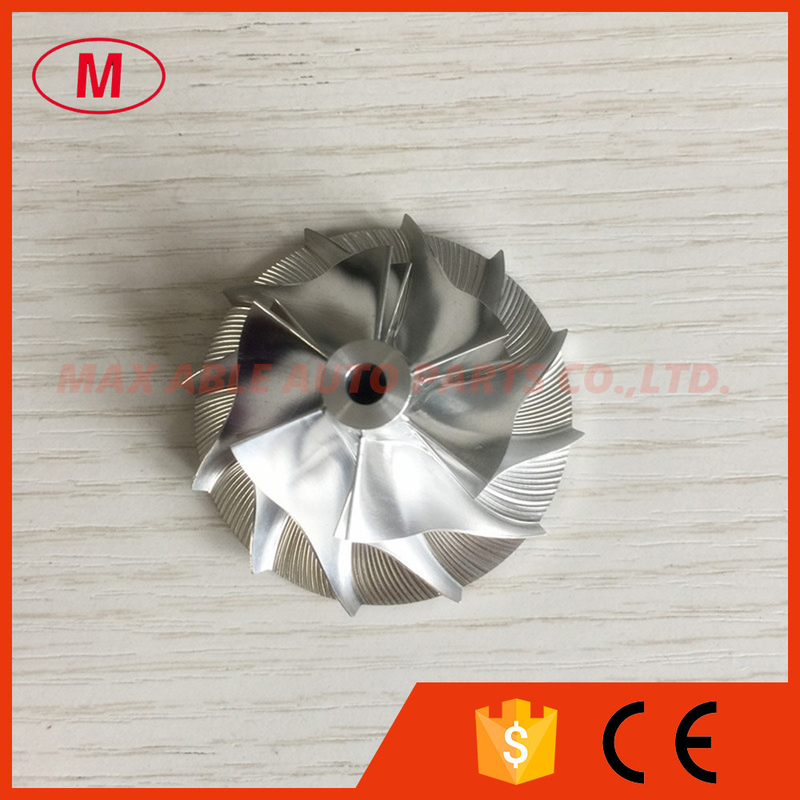

2.K04 34.53/50.96mm 6+6 blades 5304-123-2032 Turbo Billet/milling/aluminum 2618 compressor wheel for 5303-970-0048 53039700048
3.Size:
Nose diameter:10.13mm
Inducer:34.53mm
Exducer:50.96mm
Tapered tip exducer:54.07mm
Tip height:3.70mm
super back:1.80mm
overall height:25.67mm
bore size :4.61mm
bore type:through
Trailing angle:75 degree
Cutback:0.0
Blades height:19.78mm
Splitter height:14.25mm
Sp height angle:-6.10
6+6 blades
forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.Application:
5303-970-0048
53039700048
5.High quality and competitive price.
6.Any questions please send email to me.
All the compressor wheels have been balanced.
