| Brand Name: | no |
| Certification: | ISO |
| Model Number: | KP39 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | Neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:KP39 Forward

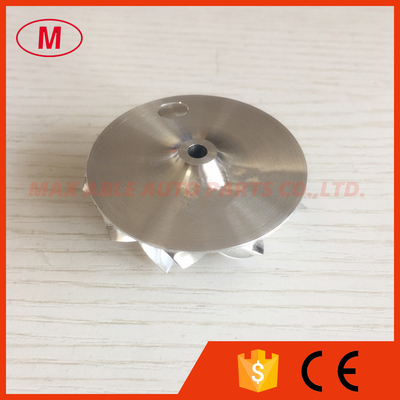

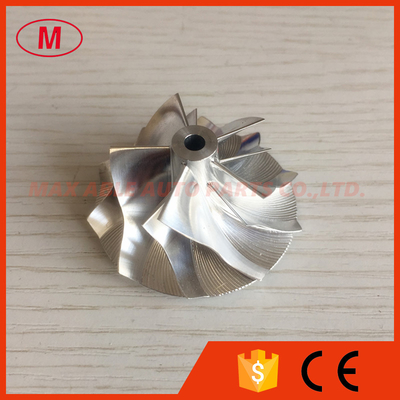

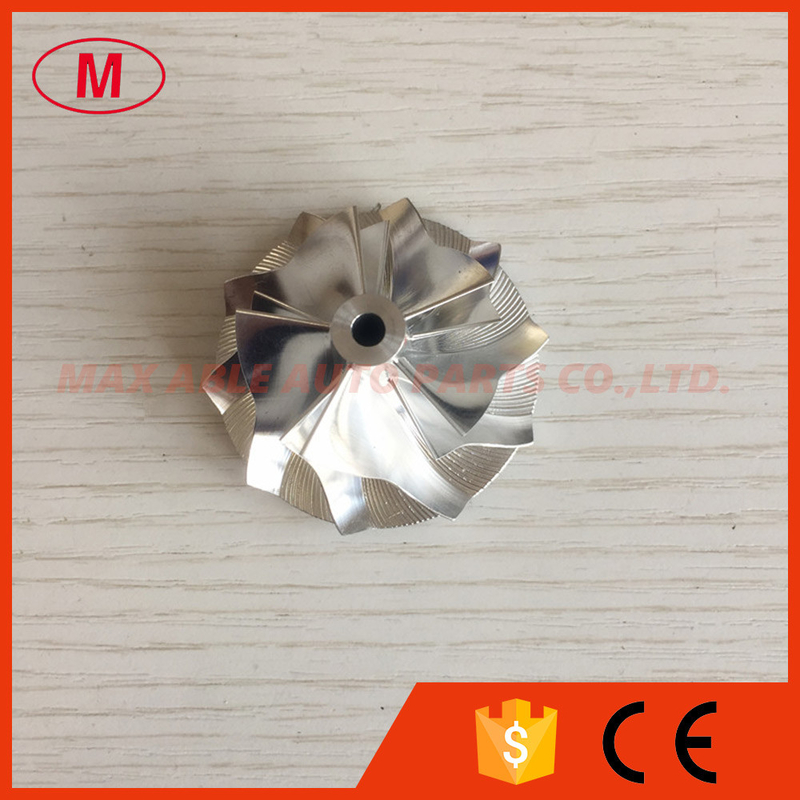

2.KP39 34.00/46.00mm 5+5 blades high performance Turbo Billet/aluminun 2618/milling compressor wheel for 5439-970-0059
3.Size:
Nose diameter:9.02mm
inducer:34.00mm
Exduder:46.00mm
Tapered tip exducer:48.98mm
Tip height:3.59mm
Superback:2.81mm
Bore size :4.10mm
bore type:through
Overall height:24.61mm
Blades height:20.16mm
Cutback:7.0
Splitter height:13.65mm
SP height angle:2.00
Trailing Angle:40 degree
5+5 blades
Foward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
