| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 53.11/70.98mm | Type: | Turbochargers |
|---|

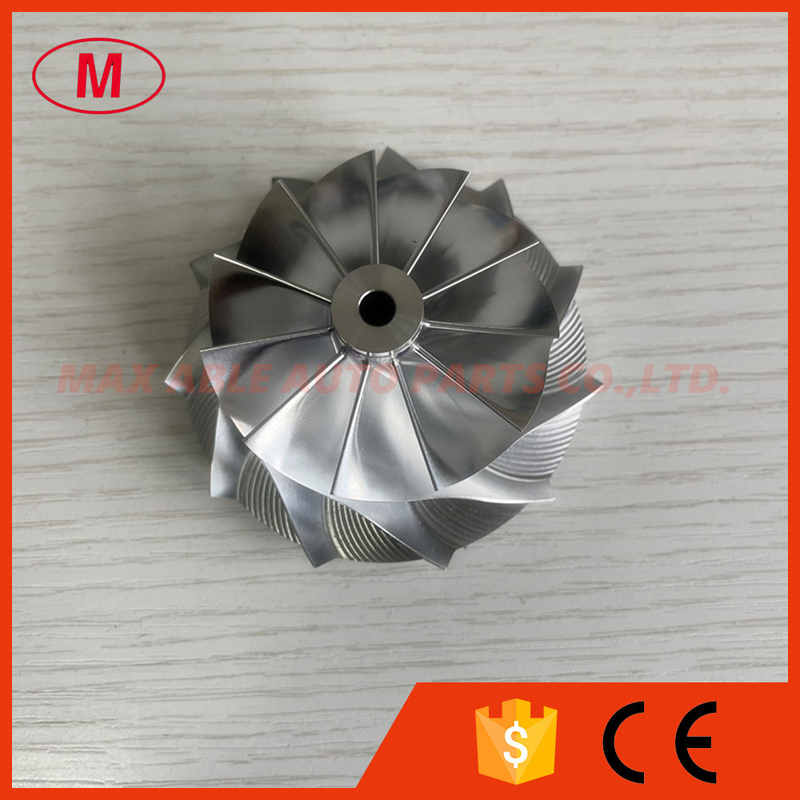

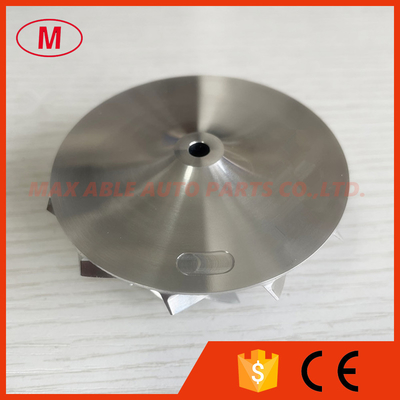

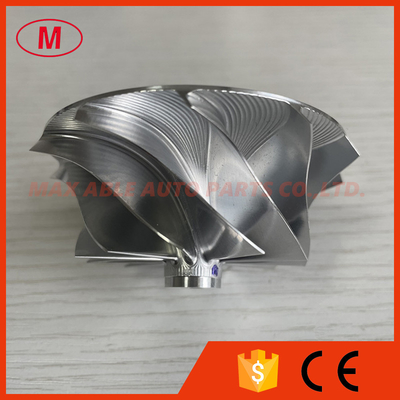

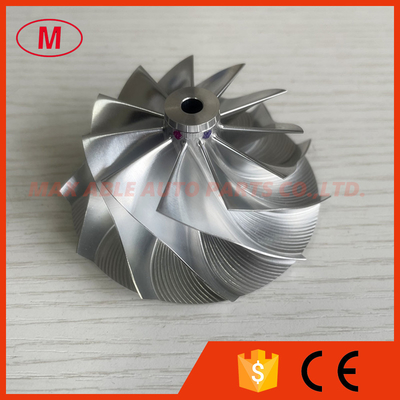

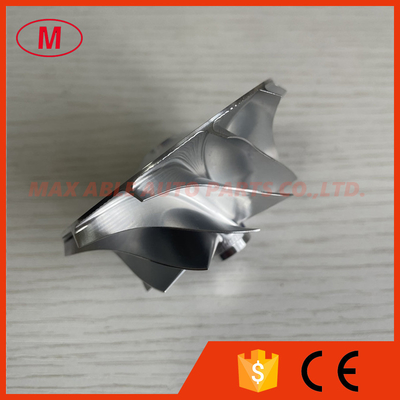

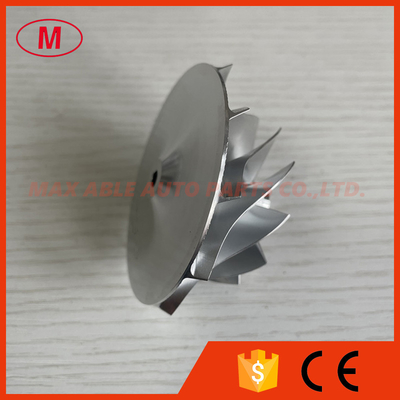

1.Model:GT15-25 forward
3.Size:
Nose diamter:13.22mm
inducer:53.11mm
Exduder:70.98mm
Tapered tip exducer:75.78mm
Tip height:5.16mm
Superback:3.79mm
Overall height:36.10mm
bore size :5.08mm
bore type:through
Cutback:0.00mm
SP Height Angle:0.00
Blade height:26.69mm
Splitter Height:0.00
11+0 blades
Forward rotation
Tapered tip angle:30 degree
Trailing angle:60 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
