| Model Number: | GT3788va |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 68.00/88.25mm | Type: | Turbochargers |
|---|
1. MODEL:GT3788VA forward

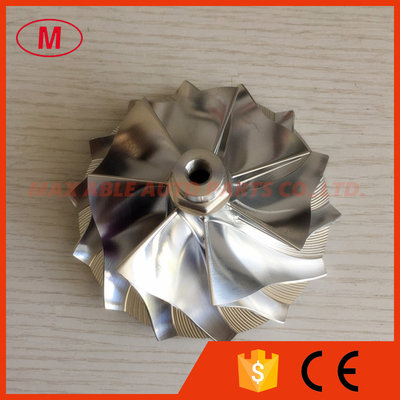

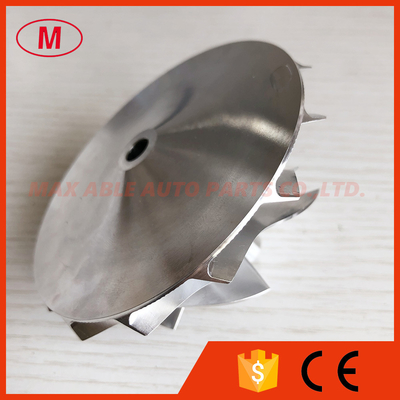

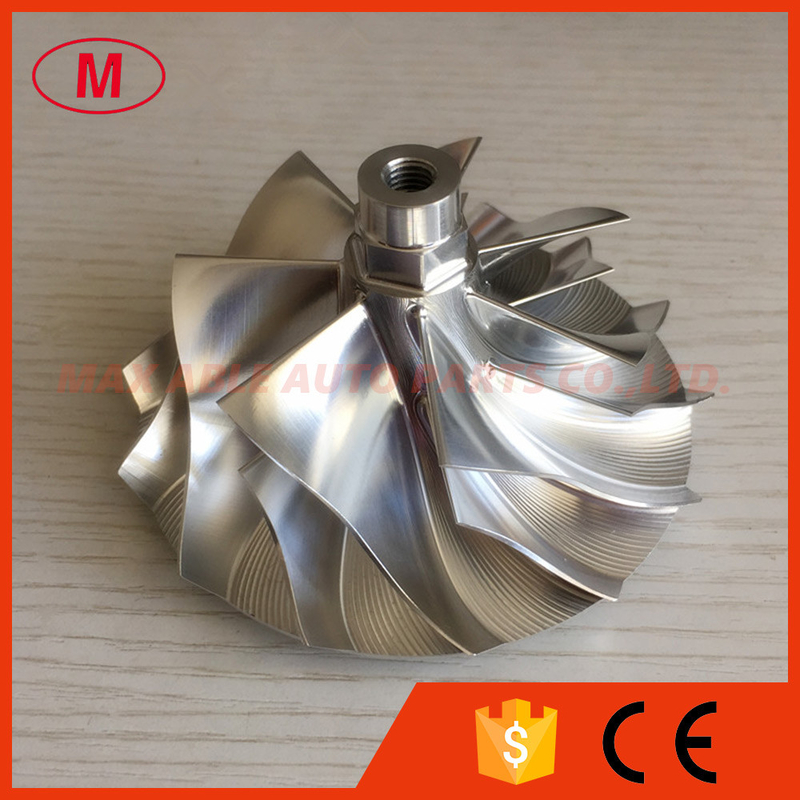

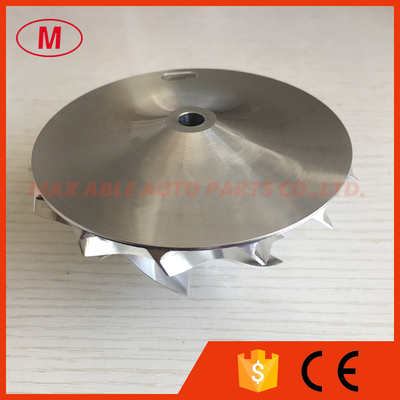

2.GT3788VA 68.00/88.25mm 7+7 blades 725326-0002 upgrae high performance turbo Billet/milling compressor wheel for Chevy 6.6L 2004.5-2005 Duramax LLY (736554-0011/8-97387-8962)
3.Size:
Nose diameter:18.59mm
inducer:68.00mm
Exduder:88.25mm
Tapered tip exducer:94.04mm
Tip height:6.01mm
Superback:5.30mm
Overall height:50.92mm
bore size :7.48mm
Trailing angle:50 degree
Bore type:Threaded-M7x1.0LHT
Cutback:2.0mm
Sp height angle:-2.00
Blade height:30.20mm
Splitter height:17.30mm
7+7 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
