| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:K04 forward

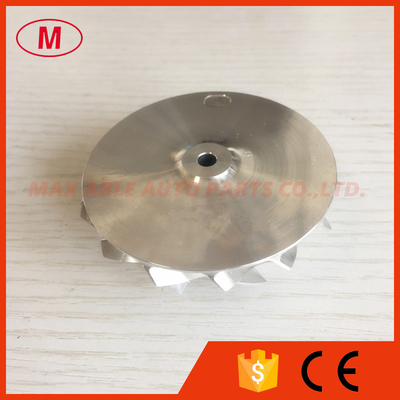

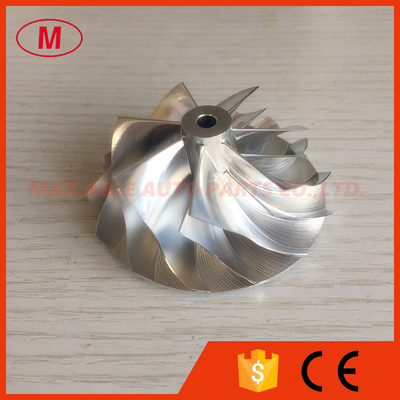

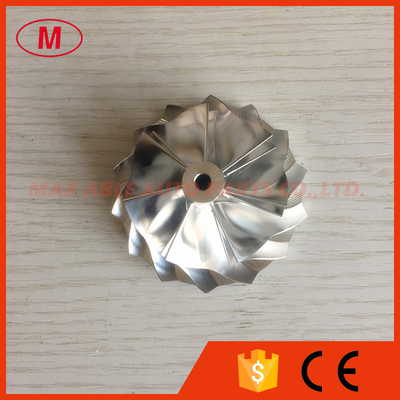

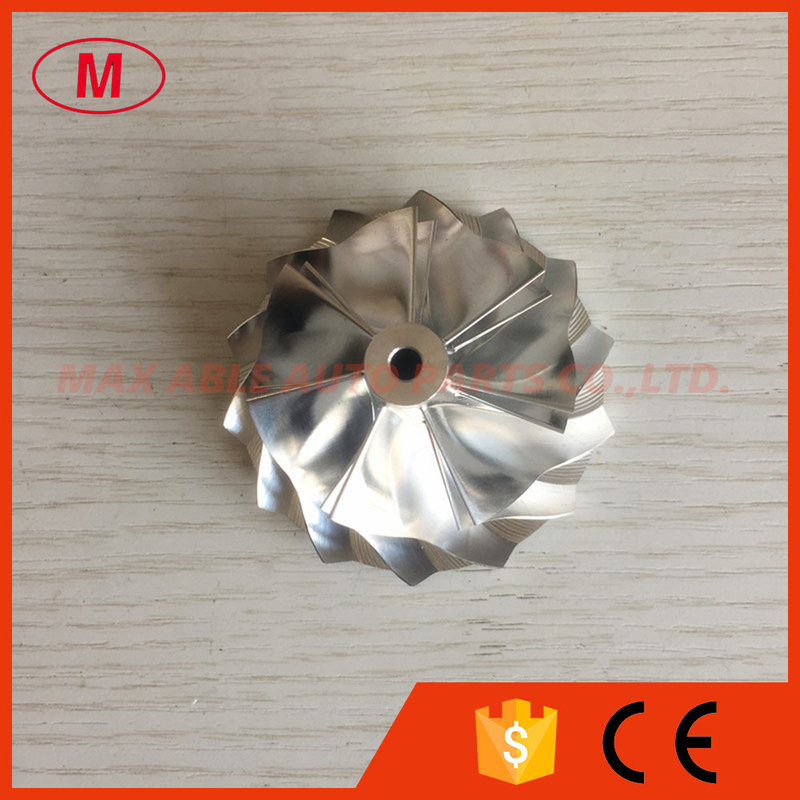

2.K04 49.62/61.98mm 7+7 blades high performance billet/milling/aluminum 2618 compressor wheel
3.SIZE:
Nose diameter:12.31mm
inducer:49.62mm
Exducer:61.98mm
Tapered tip exducer:65.90mm
Tip height:4.95mm
Superback:1.80mm
Overall height:28.00mm
bore size :4.61mm
Trailing angle :60
Cutback:8.0
SP Height angle:1.00
Blades height:23.25mm
Splitter height:15.10mm
7+7 blades
Forward rotation
Tapered tip angle:27 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.please email to me or talk to me on online ,if you want to know more details.
All the compressor wheels have been balanced.
We can produce as your requirement.
