| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:GT15-25 forward

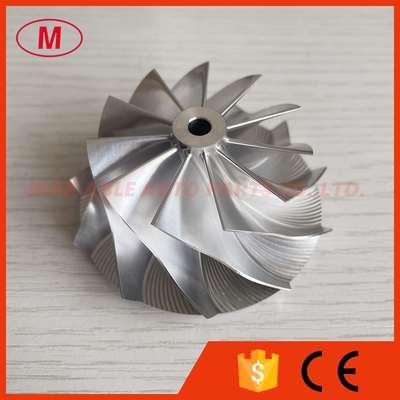

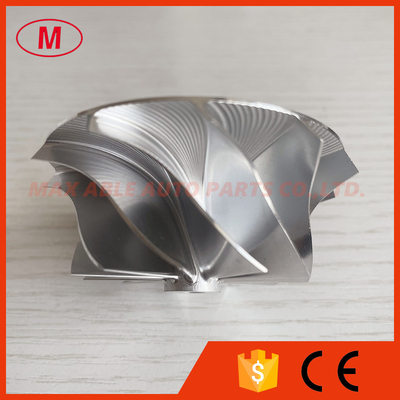

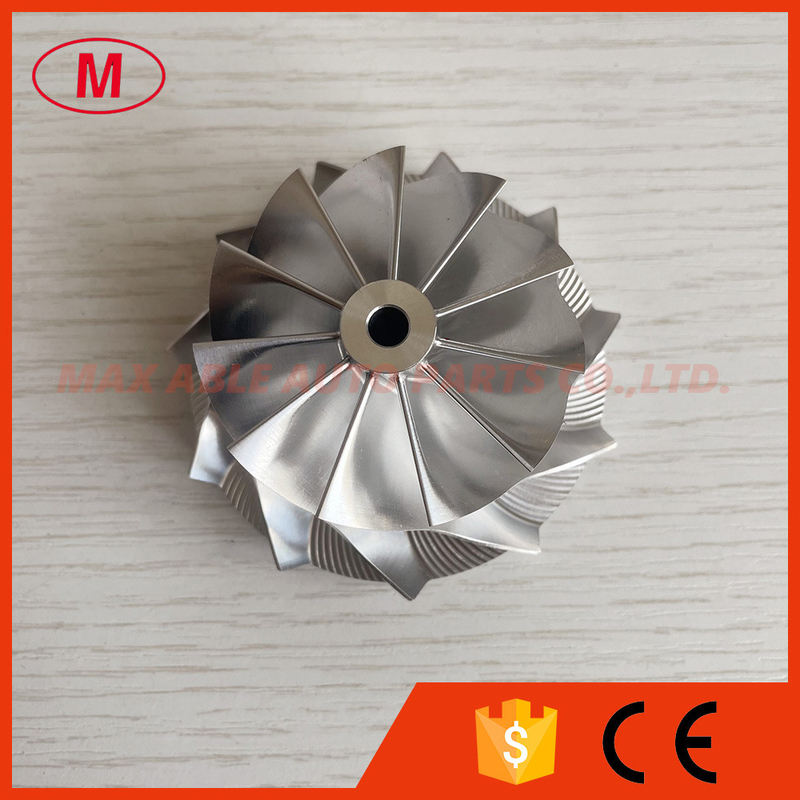

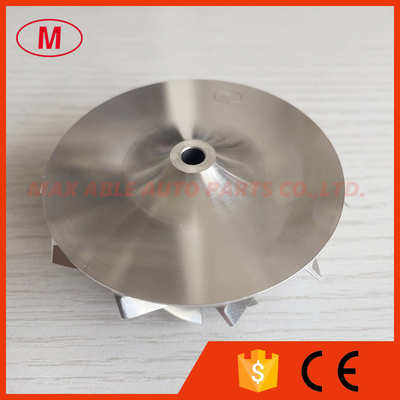

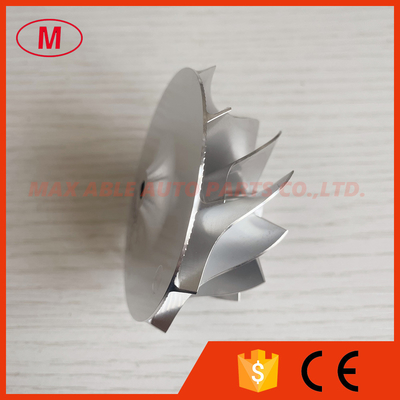

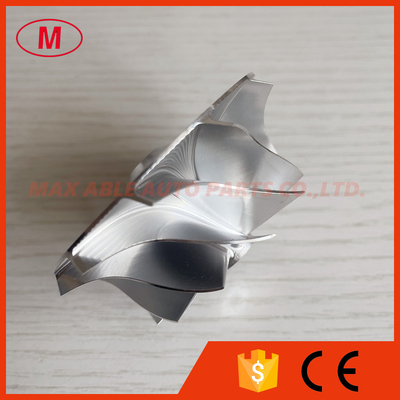

2. GT15-25 50.2/65.00mm 11+0 Blades 702549-0008HF V1 high performance turbo billet/milling/aluminum 2618 compressor wheel for 702549-0008HF TOYOTA
3.Size:
Nose diameter:11.98mm
Inducer: 50.20mm
Exuducer:65.00mm
Tapered tip exducer:69.83mm
Tip height:5.19mm
Superback:3.68mm
Overall height:32.28mm
Bore Size:5.08mm
bore type:through
Trailing Angle:60 degree
Cutback:0.0mm
SP Height Angle:0.00
Blades height:26.30mm
Splitter height:0.00mm
11+0 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
All the billet compressor wheels have been balanced.
