| Brand Name: | NO |
| Model Number: | T04B |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:T04B forward

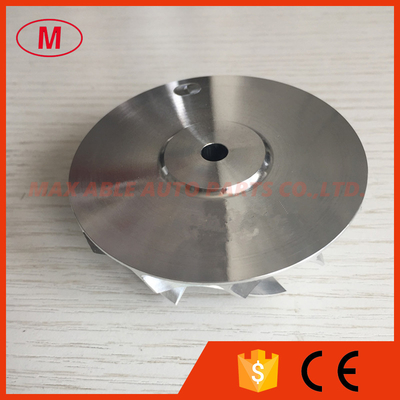

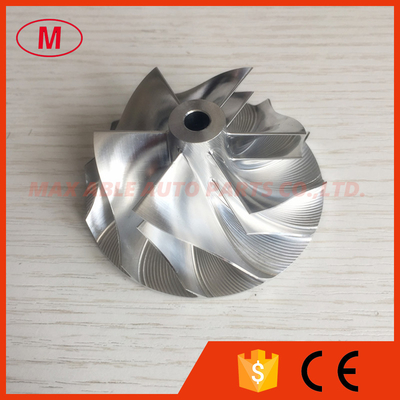

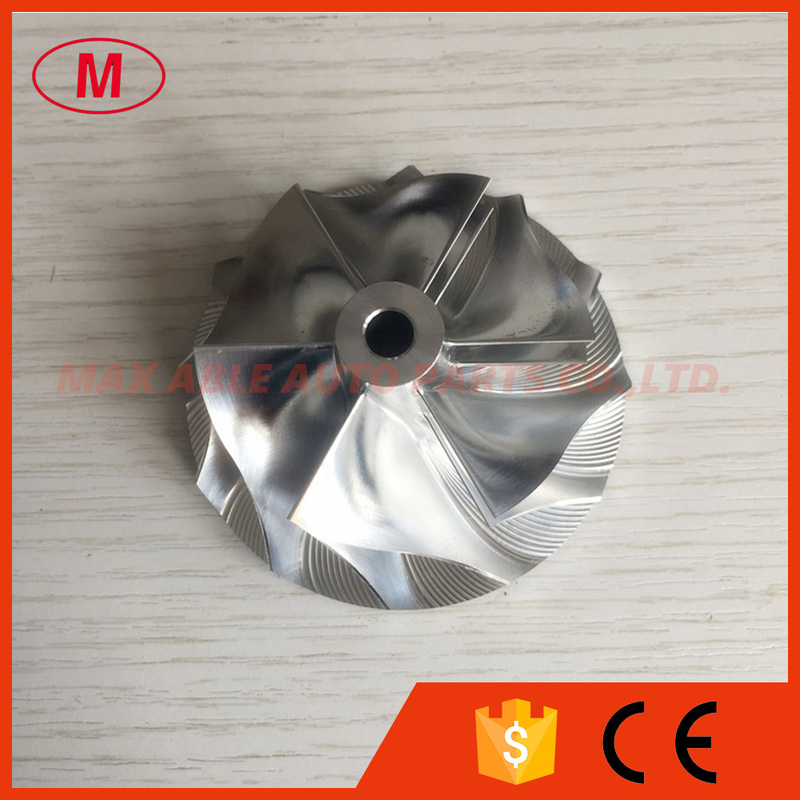

2.T04B 409179-0024 14201-95013 54.14/69.96mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 409640-0001/409770-0001/452018-0002/465070-0001
3.Size:
Nose diameter:14.09mm
inducer:54.14mm
Exduder:69.96mm
Tip height:6.70mm
Superback:1.68mm
Overall height:31.40mm
bore size :6.35mm
bore type:through
Trailing angle:50 degree
Cutback:0.0
Blades height:25.08mm
Splitter height:16.15mm
Sp height angle:-4.60
6+6 blades
Forward rotation
Tapered tip angle:0 degree
Fit for OE compressor housing
4.Application:
409640-0001
409770-0001
452018-0002
465070-0001
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
