| Brand Name: | NO |
| Model Number: | K16 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:K16 forward

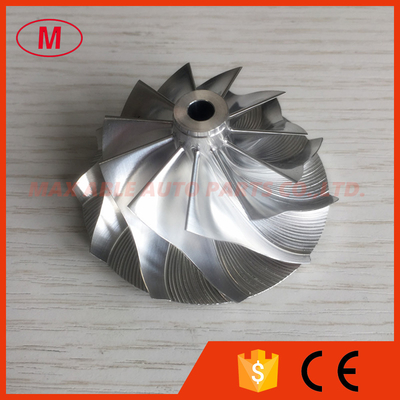

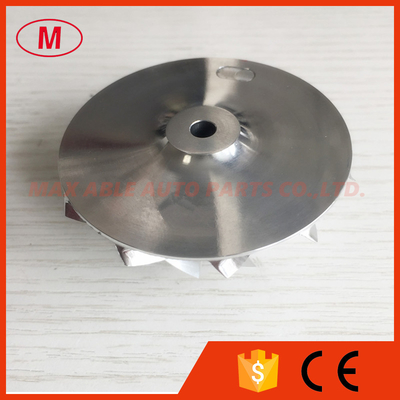

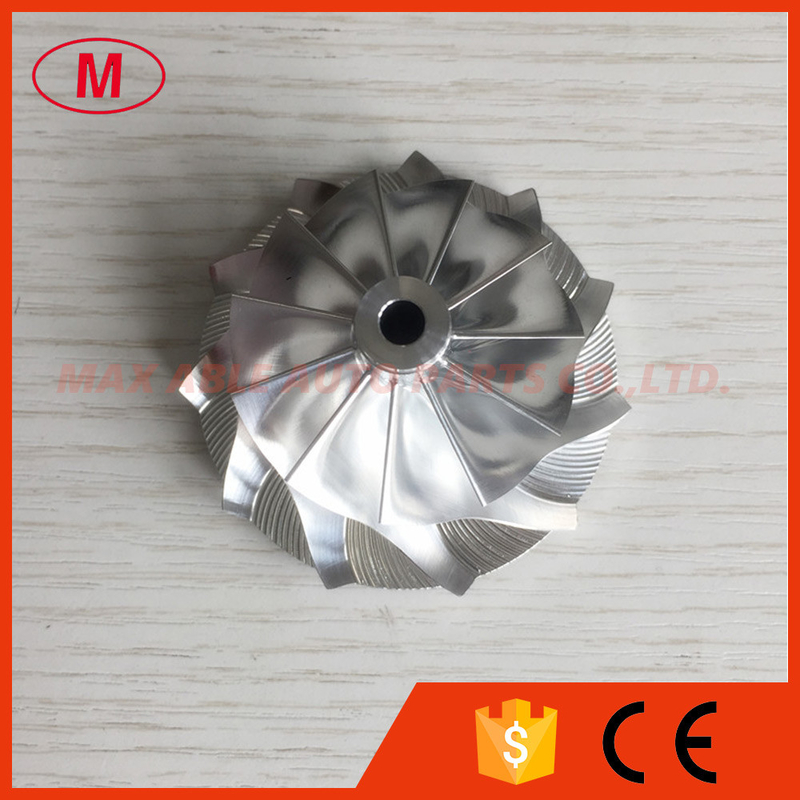

2.K16 5324-123-2201 45.78/61.98mm 11+0 blades turbo billet/milling/aluminum 2618 compressor wheel for 5324-970-7401 / 5324-970-740
3.Size:
Nose diameter:11.89mm
inducer:45.78mm
Exduder:61.98mm
Tapered tip exducer:65.57mm
Tip height:4.63mm
Superback:2.67mm
Overall height:32.37mm
bore size :5.41mm
bore type:through
Trailing Angle:60 degree
Cutback:9.00
Blade height:23.74mm
Splitter height:0.00mm
Sp height angle:0.00
11+0 blades
Forward rotation
Fit for OE compressor housing
Tapered tip angle:27 degree
Application:
5324-970-7401
5324-970-7400
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
