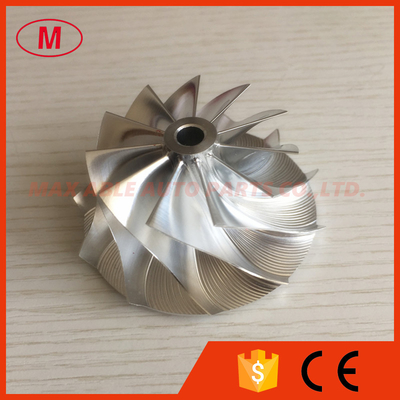

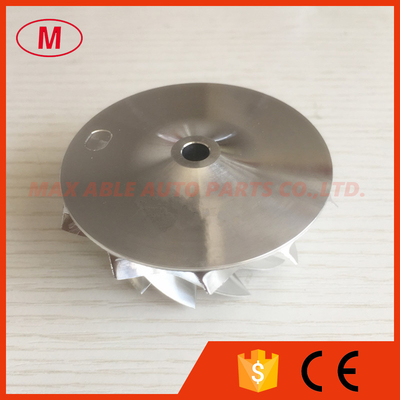

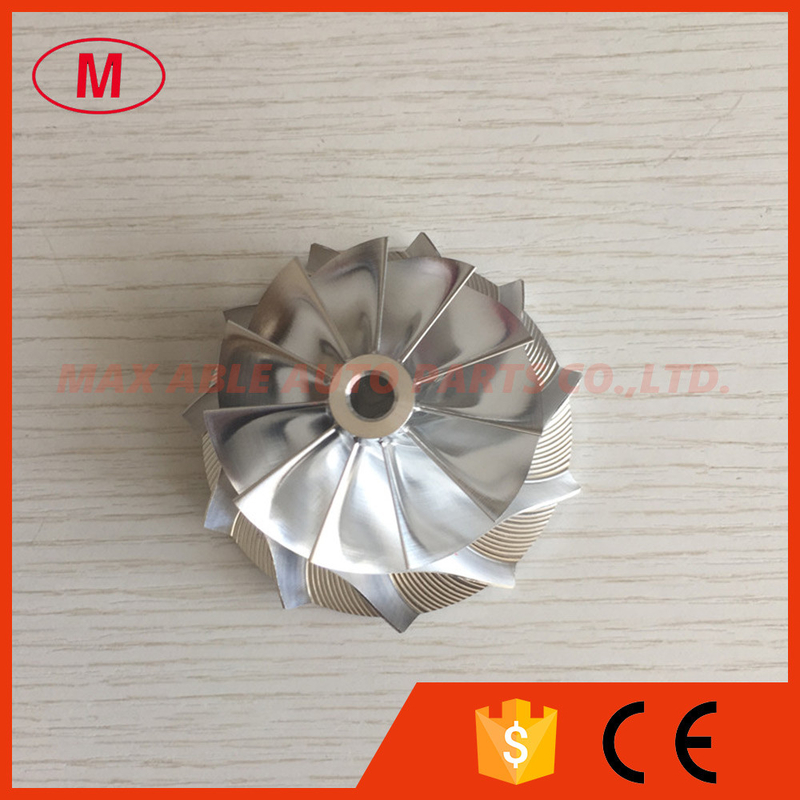

RHF5HB 93844S 47.20/60.00mm 11+0 blades high performance Turbo milling/aluminum 2618/billet compressor wheel for VF22

Brand Name:	NO
Model Number:	RHF5HB

Contact Now

Detailed Product Description

1. MODEL:RHF5HB forward

2.RHF5HB 93844S 47.20/60.00mm 11+0 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel for VF22

3.Size:

Nose diameter:11.78mm

Inducer:47.20mm

exducer:60.00mm

Tapered tip exducer:64.84mm

Tip height:5.19mm

Superback:1.85mm

bore size :6.10mm

bore type:through

Trailing angle:60 degree

Overall height:28.77mm

Cutback:0.0

Sp height Angle:0.00

Splitter height:0.00mm

Blades height:25.40mm

11+0 blades forward

Tapered tip angle:30 degree

FIT for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

RHF5HB 93844S 47.20/60.00mm 11+0 blades high performance Turbo milling/aluminum 2618/billet compressor wheel for VF22
