| Brand Name: | NO |
| Model Number: | GTX2860R |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 47.10/60.13mm | Type: | Turbochargers |
|---|

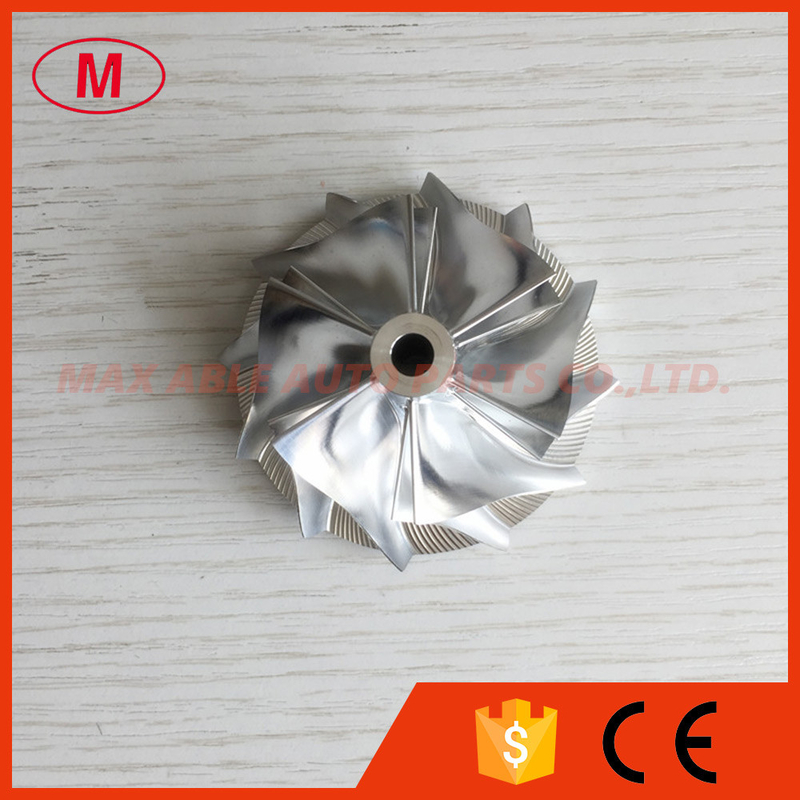

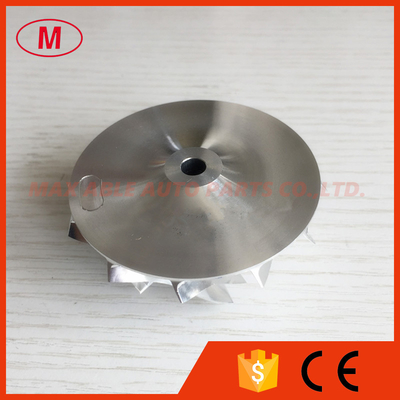

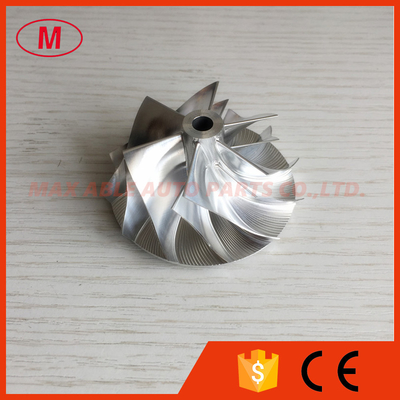

1.Model:GTX2860R forward
3.Size:
Nose diamter:11.72mm
inducer:47.10mm
Exduder:60.13mm
Tapered tip exducer:64.98mm
Tip height:5.21mm
Superback:2.30mm
Overall height:29.50mm
bore size :5.99mm
bore type:through
Trailing angle:75 degree
Cutback:6.0
Fit OE compressor housing
Blades height:25.07mm
Splitter height:17.10mm
SP Height angle:-3.10
6+6 blades
Forward rotation
Tapered tip angle:30 degree
Application:
739548
446179-0066
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
