| Brand Name: | NO |
| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
| Size: | 43.40/56.00mm | Type: | Turbochargers |
|---|

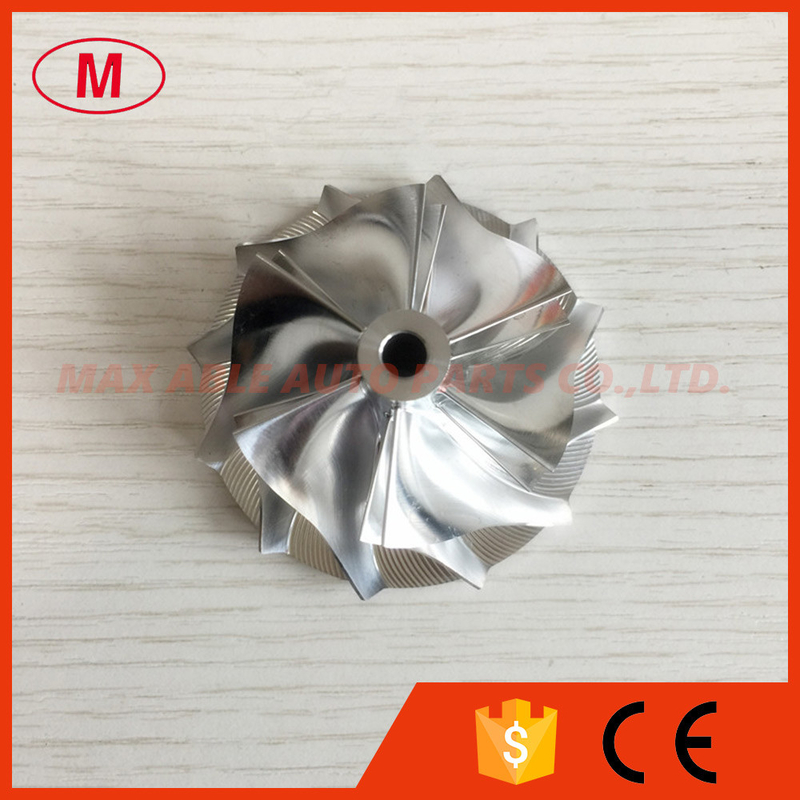

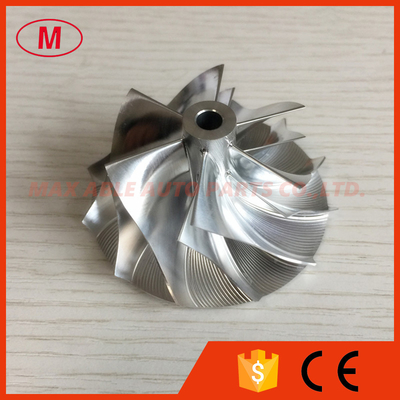

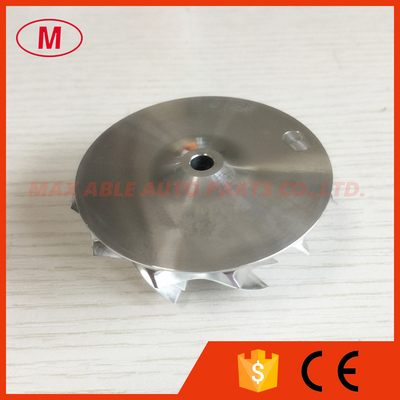

1.Model:RHF5 FORWARD
3.Size:
Nose diamter:10.60mm
inducer:43.40mm
Exduder:56.00mm
Tapered tip exducer:59.65mm
Tip height:4.16mm
Overall height:28.30mm
Superback:1.50mm
bore size :5.10mm
bore type:through
Trailing Angle:60
Cutback:4.0
SP Height angle:-2.00
Blades height:23.31mm
Splitter height:15.60mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
